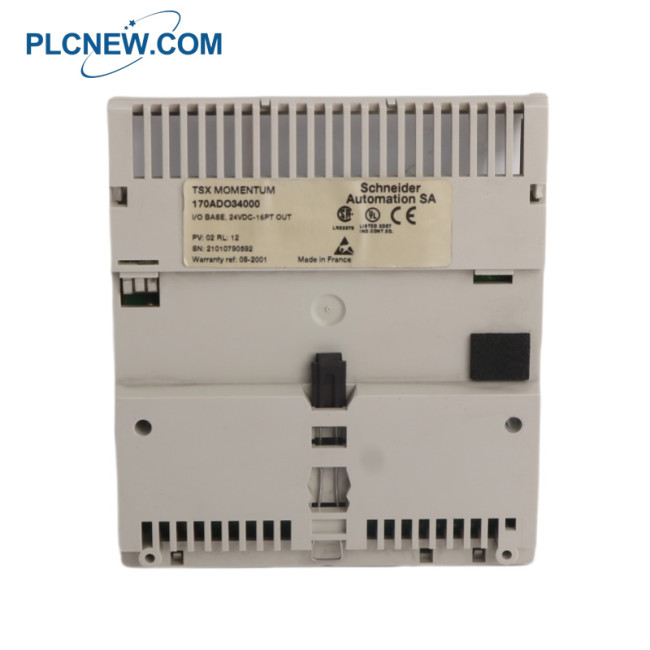

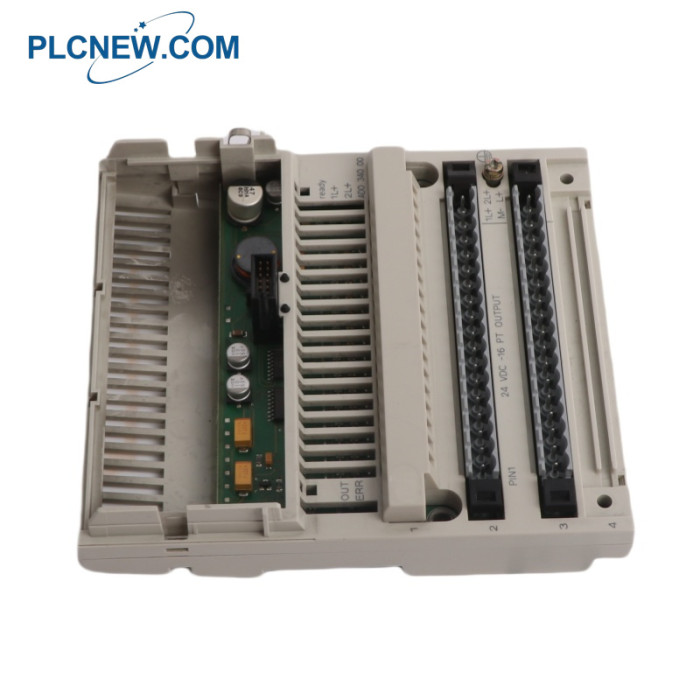

170ADO34000 Schneider discrete output module

170ADO34000 Schneider discrete output module

170ADO34000 Schneider Specifications

Main
Range of product:
Modicon Momentum automation platform
Product or component type:
Discrete output base DC
Group of channels:
2 groups of 8 outputs
Discrete output number:
16
Discrete output type:
Solid state switch
Discrete output voltage
24 V DC
Current per channel:
0.5 A
Short-circuit protection:
Outputs electronically protected
Protective treatment:
TC

170ADO34000 Schneider Description

This output module is part of the Modicon Momentum range, an offer of

controller and IP20 monoblock I/Os for distributed control architecture. This

discrete output base DC module offers 2 groups of 8 outputs, 16 discrete outputs

with solid state switch type. It offers discrete output voltage of 24V DC. There is an

isolation between channels and bus at 500V AC. It features 16 LEDs for channel status

signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height).

It weighs 0.21kg. The main application of this module is infrastructures and energy, material handling,

simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL.

It is suitable for wall mount. Momentum is a flexible, modular family of components that easily

snaps together and can be configured for a wide range of distributed I/O and control applications.

System with 4 fundamental components that easily snap together in various combinations to form

versatile control systems or sub-systems.
