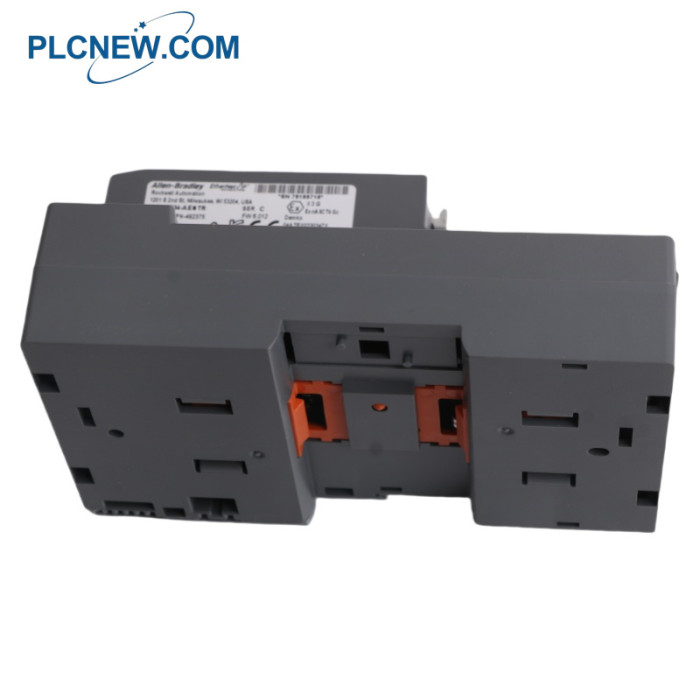

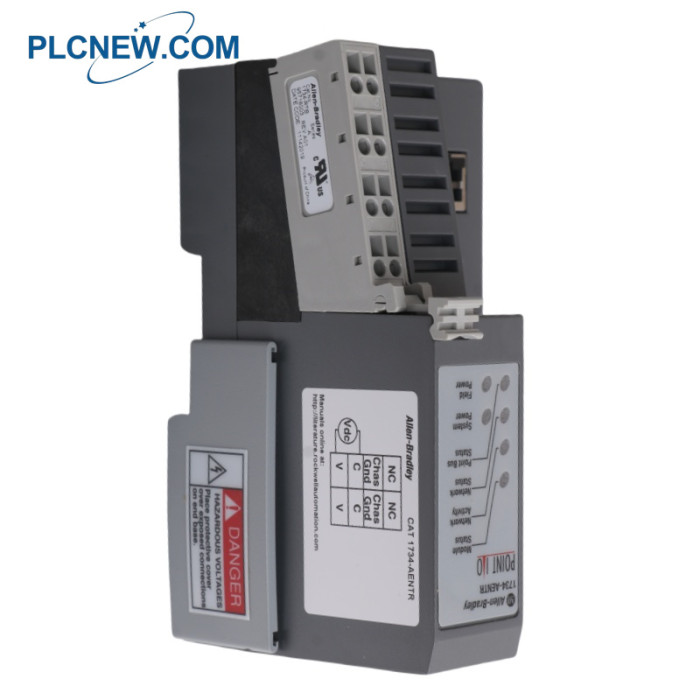

1734-AENT Ethernet Adapter Module

1734-AENT Ethernet Adapter Module

1734-AENT Specification

Part Number/Catalog No.:1734-AENT
Inrush Current:6 Amps
Module Type:Ethernet Adapter Module
Product Family:1734 POINT I/O
Product Type:Communications
No. of Ports:1
I/O Module Capacity:63 modules
I/O Points, max.:504
Communication Rate:10/100 Mbits/s, half or full-duplex.
Supported Topologies:Star / Tree topologies
Field Side Power:400 milliamps
Power Consumption:10.4 W @ 28.8V DC
POINTBus Current:1000 milliamps
Power Dissipation:5.2 Watts (at 28.8 Volts)
Series:POINT I/O
Input Voltage Rating:24 Volts DC

1734-AENT Description

The 1734-AENT is an EtherNet/IP communication adapter designed

for the POINT I/O system. This module allows a POINT I/O rack to

exchange real-time I/O data with a master controller over an EtherNet/IP

network. It interfaces with POINT I/O modules, facilitating the transfer of

both I/O data and diagnostic information.

The 1734-AENT features a built-in Ethernet communication port with an RJ45

physical interface. This port supports transmission speeds of 10/100 Mbps in

both half-duplex and full-duplex modes. It includes auto-negotiation capability,

eliminating the need to manually configure the transmission rate. The module

connects the POINT I/O rack in star or tree topology using Category 5 cables,

which can be either shielded or unshielded, with RJ45 connectors on both ends.

The 1734-AENT is equipped with LED status indicators for monitoring module

operation and diagnosing faults. These indicators include three (3) red/green

status lights located on the CPU to display the status of the Module, Network,

and POINTBus.

The module is powered by a 24V DC supply, with a field bus power supply current

 of 10 A. It operates within an acceptable supply voltage range of 10-28.8V DC and

includes integral reverse polarity protection to safeguard against incorrect power

connections. This ensures reliable and efficient operation in industrial environments.
