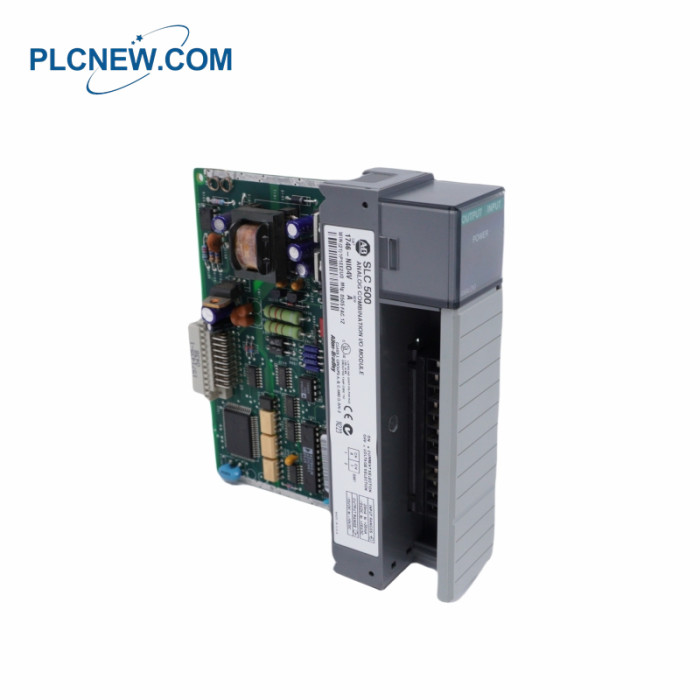

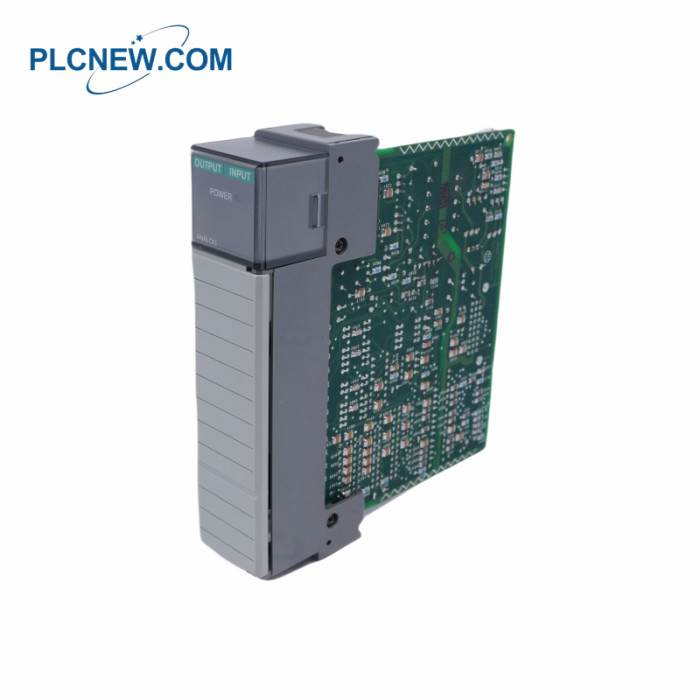

1746-NIO4V Analog combination module

1746-NIO4V Analog combination module

1746-NIO4V Specification

Operating Voltage:24VDC
Channels:4
Input Range:-10V to +10V
Frequency Response:DC
Accuracy:+/- 0.05%
Power Consumption:≤ 5W
Environmental Temperature:-40°C to +70°C
Humidity Range:5% to 95% non-condensing

1746-NIO4V Description

    The 1746-NIO4V Analog Combination Module, a cornerstone of the SLC 500

series, is designed to deliver unparalleled precision in industrial systems. Its high-

resolution input and output capabilities ensure accurate data acquisition and control,

crucial for achieving optimal efficiency and reliability in various manufacturing processes.

    Equipped with two high-precision analog input channels and corresponding

output channels, this module excels in handling a wide range of signals, making it

ideal for applications requiring precise measurement and control, such as

temperature, pressure, and flow rate monitoring.

    Featuring a common mode voltage range of -20 to 20 V and an absolute input voltage

limit of plus/minus 7.5 VDC or 7.5 VAC RMS, the 1746-NIO4V ensures robust

signal processing under diverse environmental conditions. The module’s input

range extends from -20 to 20 mA, coupled with an absolute input current limit

of -30 to 30 mA, providing exceptional flexibility and compatibility with various

sensors and actuators.

    For output management, the module offers a versatile output range of -10 to 10 V

with a least significant bit (LSB) resolution, allowing for fine-grained control over

devices and systems. This feature is particularly beneficial in scenarios where

minute adjustments are critical for achieving desired outcomes.

    The inclusion of overvoltage protection at 7.5 VAC RMS and a DC input range

of -10 to 10 V with 1 LSB ensures the module’s durability and safety in harsh

industrial environments. Moreover, the backplane current draw of 55 mA supports

efficient power management within complex control systems, ensuring smooth

operation without strain on the system’s resources.
