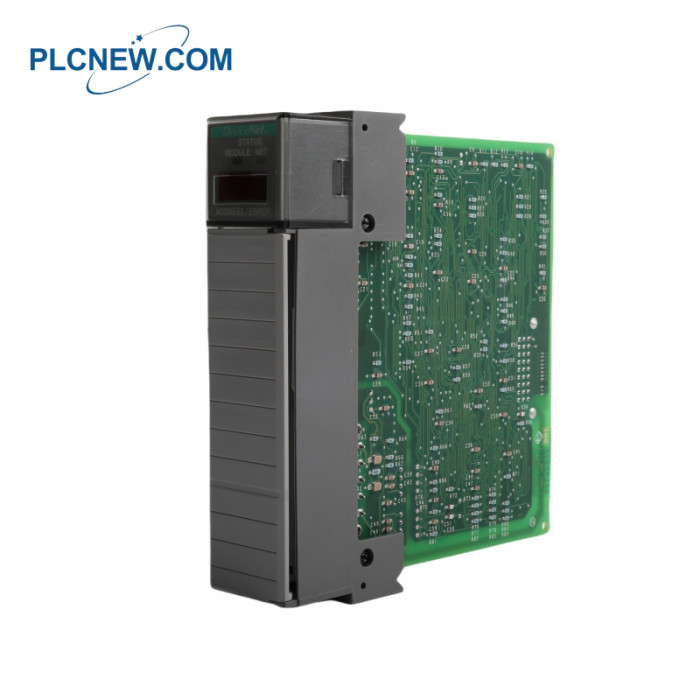

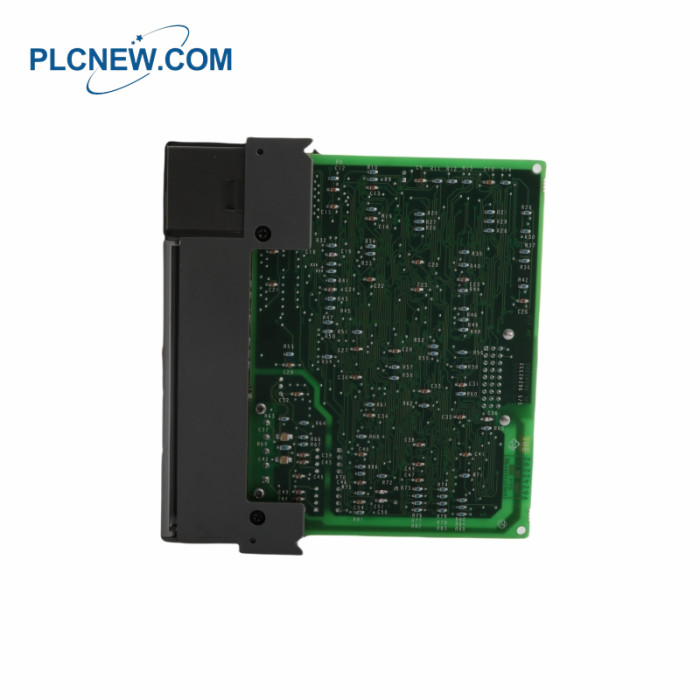

1746-SDN DeviceNet Scanner Module
1746-SDN Specification
Operating Temperature 0 to 55 C (32 to 131 F)
Part Number/Catalog No:1746-SDN
Compatible controllers:SLC 5/02 or later
Pass through:Supported
Communication Port:One (1) DeviceNet
Data Transfer speed:125Kbps
Linear Plug:1787-PLUG10R
Dimensions:3.5x13x14.5cm
Weight:0.14kg
1746-SDN Description
The 1746-SDN is a DeviceNet communication scanner. This scanner module is used
to communicate with DeviceNet capable devices over the DeviceNet network or
through DeviceNet adapter modules. This module may operate in slave mode; send
and receive message in Polled, Strobe, Change-of-State and Cyclic I/O configuration.
It also supports pass through configuration wherein, the 1746-SDN acts as a bridge
and connects a separate DeviceNet network.
Specifically, when implementing Pass-Through configuration, compatible SLC
500 processor is SLC 5/03, SLC 5/04 and SLC 5/05.
The 1746-SDN supports configuration of up to 63 nodes at a baud rate of 125 Kbps.
It draws backplane current amounting to 5V DC, 500 mA.
The 1746-SDN’s front panel is installed with Two (2) LED status indicators such as
Module indicator to report the module’s operation and a Network status LED that
indicates the DeviceNet communication link. It also has an LCD display that
provides module address and error indication. The DeviceNet terminal is installed
behind the access door and provided with a 10-pin linear plug inserted into the
DeviceNet port.
