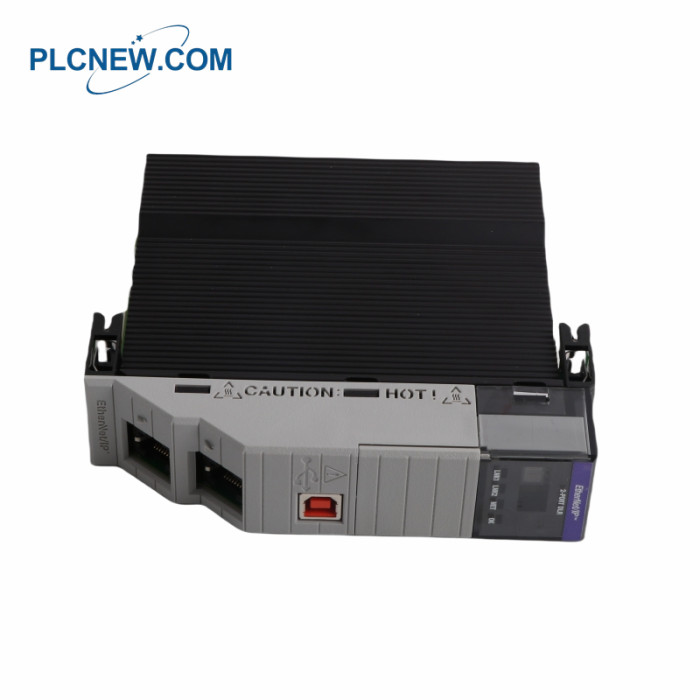

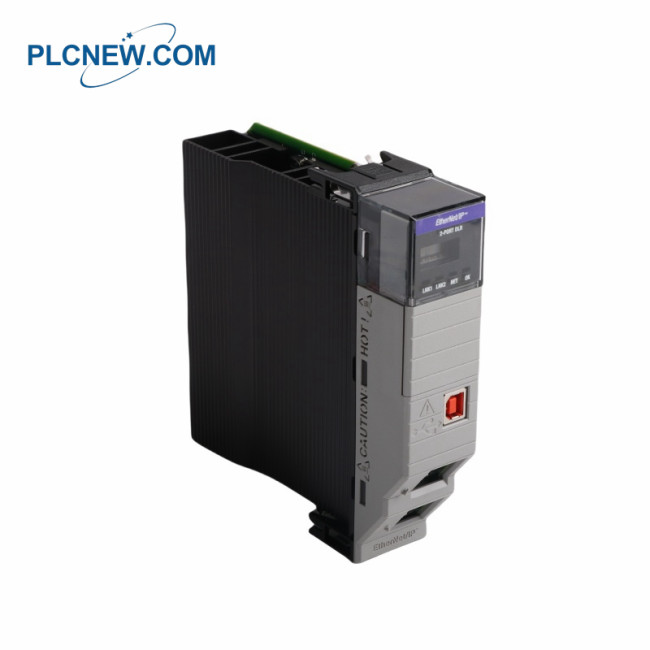

1756-EN2TR Ethernet/IP Bridge Module

1756-EN2TR Ethernet/IP Bridge Module

1756-EN2TR Specification

Model Type:EtherNet/IP Bridge Module
High Capacity:2 Port, 8 Motion Axes
TCP/IP Connections:128
CIP Connections:256
Communication Speed:10/100 MBPS
Communication Protocol:Ethernet/IP
Enclosure Type:Open Type
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Isolation:30 V Continuous
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Interface:Ethernet, USB Port

1756-EN2TR Description

    The 1756-EN2TR is a high-capacity communication module that significantly

enhances the capabilities of industrial systems. This robust module supports

Ethernet/IP protocol for reliable data transmission, making it a preferred choice

for complex control networks.

    Designed with an open type enclosure, the 1756-EN2TR ensures durability

and compatibility across various industrial environments. It operates efficiently

within a wide temperature range, ensuring reliability under extreme conditions.

    Featuring a power supply of 3 mA at 24 VDC, this module is energy-efficient,

consuming a maximum of 6.5 W during operation. This low power consumption

contributes to sustainable industrial operations without compromising on performance.

    The module’s ability to handle up to 8 motion axes and support 256 CIP

(Control Information Protocol) connections makes it suitable for applications

requiring high connectivity and data transfer rates. This capability is essential

for modern industrial , where real-time data processing is critical.

    Equipped with an 802.3 compliant interface, the 1756-EN2TR ensures compatibility

with a wide range of network devices. Its compatibility with shielded or unshielded

twisted pair cables further enhances its versatility, allowing seamless integration into

diverse industrial setups.
