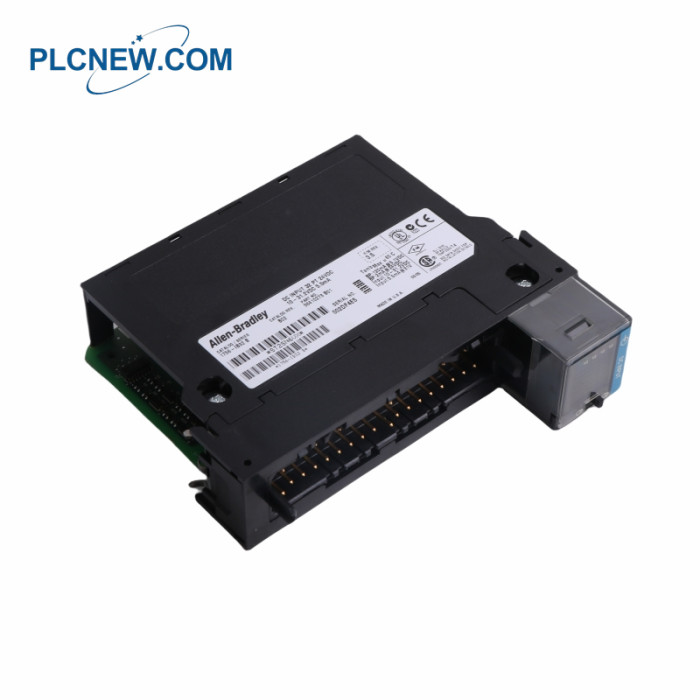

1756-IB32 Digital Input Module

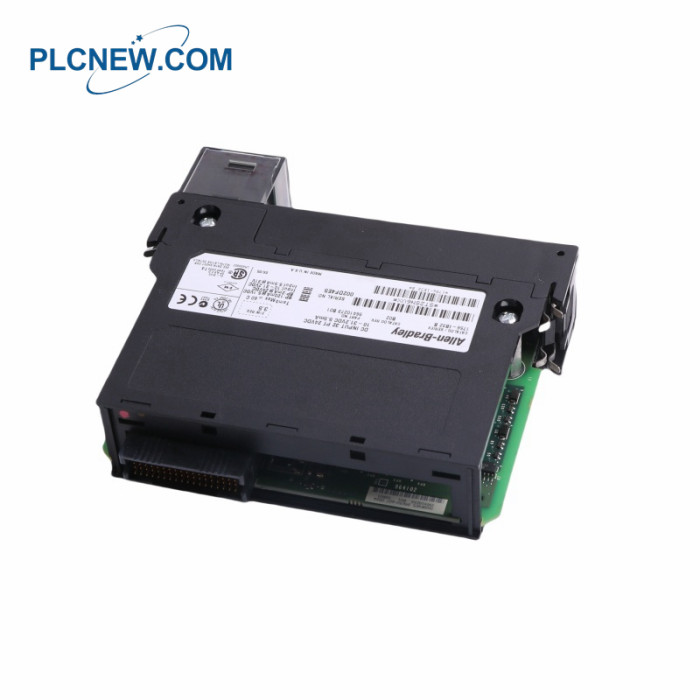

1756-IB32 Digital Input Module

1756-IB32 Specification

Product Type:Digital Input Module
Model Number:1756-IB32
Brand: PLC module
Inputs: 32
Module Type: Digital DC Input Module
Number of Inputs: Thirty-Two (32) Inputs
Input Voltage: 12-24 Volts DC Sink
Operating Voltage Range: 10-31.2 Volts DC
Module Keying: Electronic
Maximum Operating Current: 5.5 milliamperes
Input Delay Time: 2 milliseconds plus selected filter time
Maximum Input Current (Off-State): 1.5 milliamperes
Minimum Operating Current: 2 milliamperes at 10 Volts DC
Input Delay Time, OFF to ON: Hardware delay: 380 µs max + filter time
Backplane Current at 5 Volts: 120 milliamperes
Input Delay Time, ON to OFF: Hardware delay: 420 µs max + filter time
Power Dissipation (Max): 6.2 W @ 60°C (140°F)
Backplane Current at 24 Volts: 2 milliamperes
Backplane Current at 5.1 Volts: 100 milliamperes
Thermal Dissipation: 21.1 BTU/hr @ 60°C (140°F)
Dimensions:3.5x14x14.5cm
Weight:0.2kg

1756-IB32 Description

The 1756-IB32 is a digital I/O module. Part of the system, this input module has

32 inputs available in 2 groups, with 16 points in each group. It is mounted to a

chassis by using the required removable terminal block housing, or RTB, such as

either the 1756-TBCH or 1756-TBS6H. This module, occupies a single slot of the

Chassis and supplied with an open enclosure type. The 1756-IB32 module has an

operating voltage range of 10 to 31.2 Volts DC and a nominal input voltage of 24

Volts DC. It has a voltage category of 12/24 Volts DC sink, a current draw of 120

mA at 5.1 Volts and 2 mA at 24 Volts, and a total backplane power rating of 0.66 W.

The maximum power dissipation is 6.2 W at 60 degrees Celsius, while the

thermal dissipation is 21.1 BTU/hour, also at 60 degrees Celsius. The 1756-IB32

digital I/O module also has a maximum inrush current rating of 250 mA, which

decays to less than 37% in 22 milliseconds without activation. In an off-state, its

maximum current is 2.27 mA and its maximum voltage is 5 Volts. The input delay

time for the off-to-on and on-to-off processes differ. For the off-to-on process,

there is a hardware delay of up to 380 microseconds plus a user-configurable filter

time of either 0, 1, or 2 milliseconds. The on-to-off delay time includes the hardware

delay time of up to 420 microseconds plus the user-configurable filter time of either

0, 1, 2, 9, or 18 milliseconds.

The 1756-IB32 is a High-Density Discrete input module that belongs to the product

family of Programmable  Controllers (PAC). This module features Thirty-Two (32)

input channels, grouped in Two (2) with Sixteen (16) channels each group.

It may be installed to a local I/O rack or distributed I/O chassis or in a stand-alone

or Distributed Control Systems (DCS) such as Plant PAx. One this module is entered

through the Hardware configuration, the module’s parameters are accessible such as

the module’s general properties with important parameters of compatible keying and

slot assignment. This module also has a configurable Request Packet Interval (RPI),

Module Inhibition, Reaction to communication failure and Scheduled connection

over ControlNet. Each channel of this module has configurable filter settings to

allow fine tuning of the module’s reaction time to signals. This adjustment is

useful in applications where discrete signals are erratic and exposed to noise. This

feature helps prevent false positive negative readings.

This module is also provided with the capability of self-diagnosis through the module

info where the module’s diagnostic status can be monitored such as minor and major

fault. It can also detect the status of the backplane where the module is connected.

This module is shipped with a Removable Terminal Block (RTB). This RTB enables

modular replacement of a defective module an provides ease of wiring the

signals. Compatible RTB for this module are 1756-TBCH 1756-TBS6H or a

36-terminal RTB.
