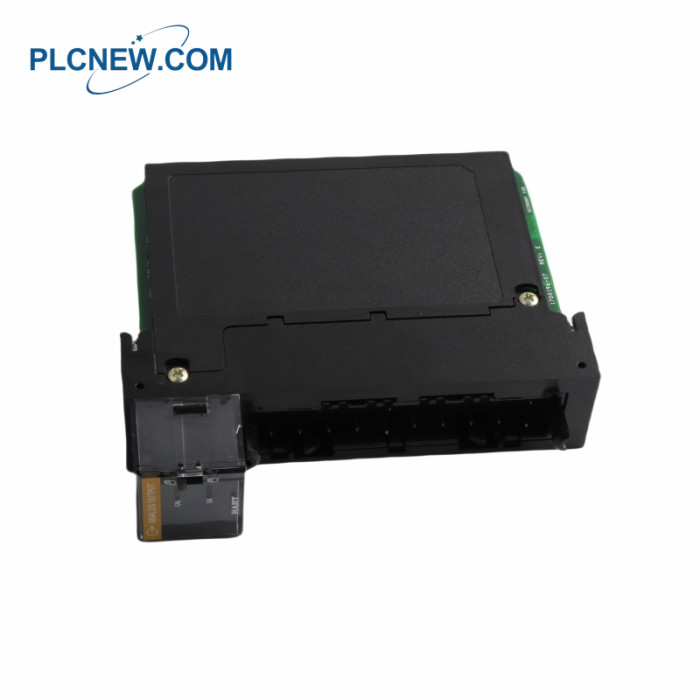

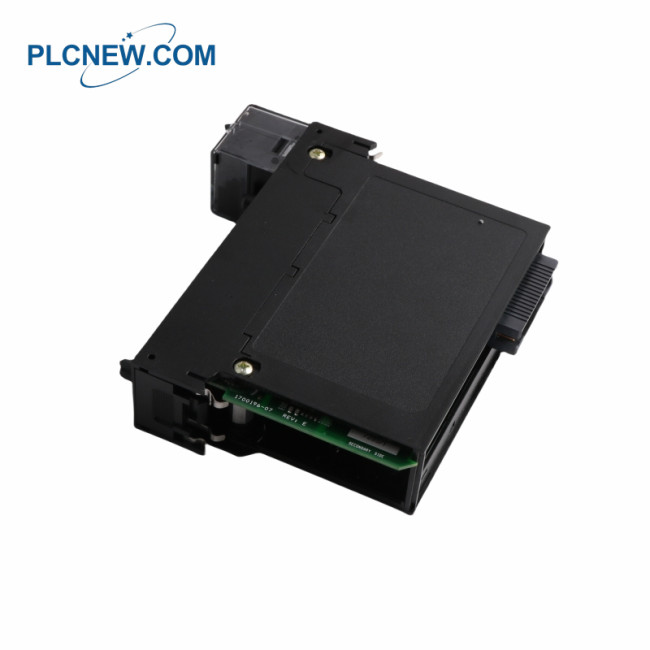

1756-OF8H Analog output module

1756-OF8H Analog output module

1756-OF8H Specification

Part Number:1756-OF8H
Module Type: Hart Analog Output Module
Number of Outputs: 8 Differential Outputs
Input Current Range: 0-20 mA or 4-20 mA
Output Signal:
Current: 0-20 mA, 4-20 mA
Voltage: ±10 VDC
Resolution: 15-16 Bits
Dimensions:3.5x14.2x14.5cm
Weight:0.22kg

1756-OF8H Description

   The 1756-OF8H is an analog output module from the controller platform. This

module mainly features Eight (8) voltage or current output channels, configurable

for 0-20 mA and 4-20 mA current output signals and +/-10VDC voltage output signals.

The 1756-OF8H has a module resolution of 15-16bits on all signal ranges. It comes

with internal Digital to Analog converter (DAC) using R-Ladder DAC, monotonicity

with no missing codes conversion method with data format of Integer mode (left justified,

2 s complement) IEEE 32-bit floating-point. This module is installed to a 1756 chassis

and occupies a single slot only. It can function as a local IO module and remote I/O

module component. For the termination of signal wires, this module comes with a

removable terminal block (RTB).

   The 1756-OF8H Voltage/Current Analog Output Module by is an analog output

module that has 8 voltage or current outputs with a single HART modem per module.

It has a selectable voltage/current signal range of -10.4336-10.4336V and 0-21.2916mA.

 The 1756-OF8H has an overall output rating of +/- 10V or 0-20mA and a signal

resolution of 15-16 bits for all ranges. It also has a backplane current draw of 230

mA @ 5.1 VDC and 230 mA @ 24 VDC, total backplane power of 6.54W. It has a

thermal dissipation of 16.78 BTU/hr, and a power dissipation of 4.92W. The

1756-OF8H has an isolation voltage of 50V with basic insulation tested at 1500V

AC for 60s between output channels and the backplane.
