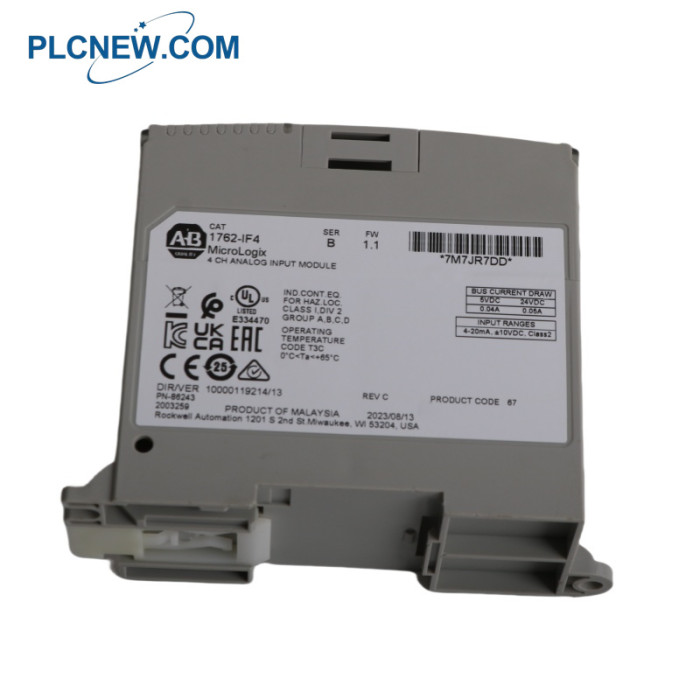

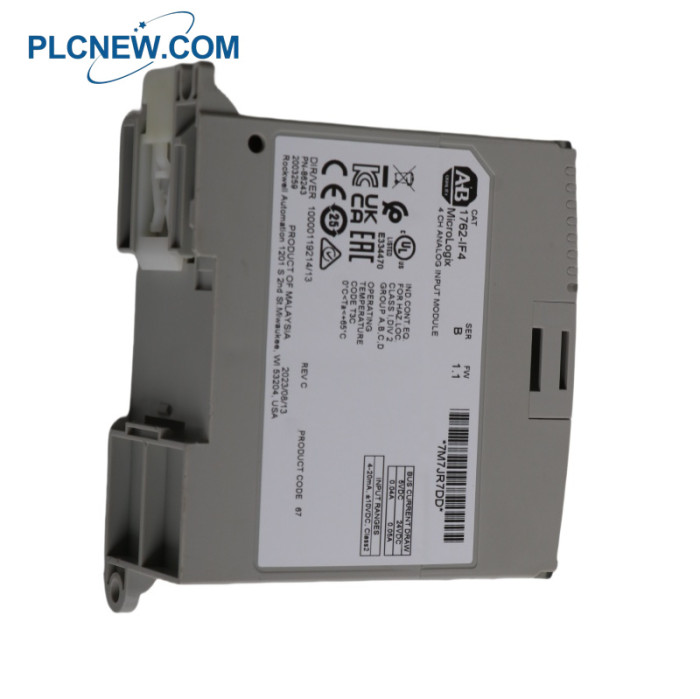

1762-IF4 Analog Input Module

1762-IF4 Analog Input Module

1762-IF4 Specification

Part Number/Catalog No.:1762-IF4
Product Type:Analog Input Module
Analog Normal Operating Voltage:-10.5 to 10 Volts DC
Inputs:4 Differential (Bipolar)
Voltage signal normal ranges:'-10.5 … +10.5V dc
Current signal normal ranges:4 … 20 mA
Current signal full range:-21 … +21 m
No. of Inputs:Four (4) Differential (Bipolar)
Mounting Type:DIN Rail or Panel
Status Indicator:Single source LED
Recommended Cable:Belden 8761 (shielded)
Shipping Weight:8.28 ounces

1762-IF4 Description

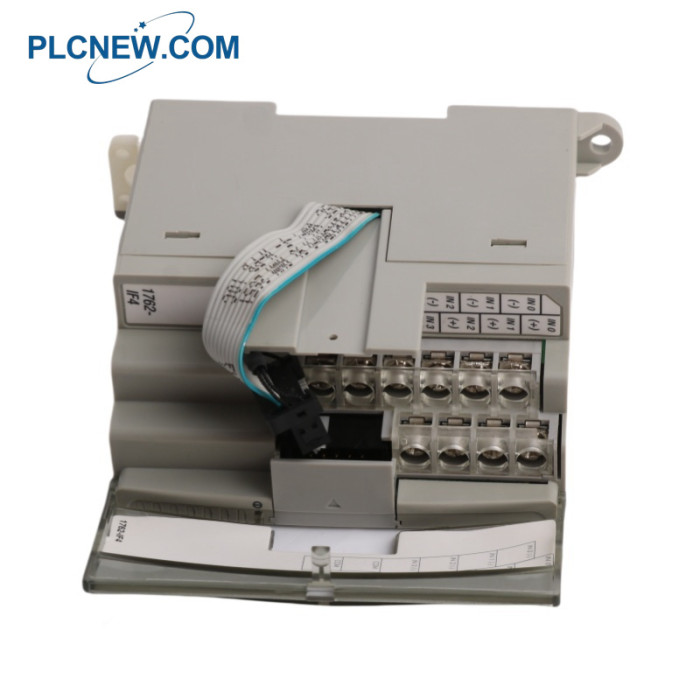

The 1762-IF4 is a 4-channel current/voltage analog input module designed

for use with MicroLogix 1200 systems. It features a Delta-Sigma converter

and 4 differential (bipolar) inputs. The module supports an analog operating

voltage range of -10 to 10 Volts DC under normal conditions and -10.5 to 10.5

Volts DC at full scale. For current, it operates within a range of 4 to 20 mA

normally and -21 to 21 mA at full scale. This module enhances system functionality

by allowing the addition of extra I/O capabilities to the system. It requires minimal

 spacing and can be mounted on either a DIN rail or a panel.

The 1762-IF4 communicates and receives power via a 5 to 24 Volts DC supply

through the 1762 bus interface. When wiring the input terminal blocks, a finger-safe

cover is provided for safety. A flat ribbon cable is used to connect various I/O modules.

The module supports 2-wire, 3-wire, or 4-wire transmitter configurations, offering

flexibility for different applications.

During troubleshooting, users should always maintain a safe distance from the equipment

and verify for any program changes before proceeding. This module is designed to deliver

reliable performance in industrial environments, ensuring accurate analog signal processing

and system integration.
