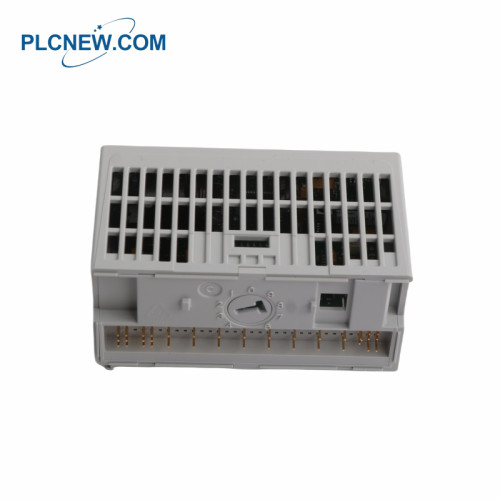

1762-OW8 Relay Output Module

1762-OW8 Relay Output Module

1762-OW8 Specification

Part Number/Catalog No.:1762-OW16
Product Type:Relay Output Module
Compatible Controllers:MicroLogix 1100 / 1200 / 1400
Mounting Type:DIN Rail
Outputs:Eight (8) AC/DC Relay
Power Supply Distance Rating:6 Modules
Relay Contact Voltage Ratings:24-125 VDC;120-240VAC
Voltage Category:AC/DC Normally Open Relay
Operating Voltage Range:5-265V AC; 5-125V DC
Mounting Type:DIN Rail; Panel Mounting
No. of Groups:Two (2)

1762-OW8 Description

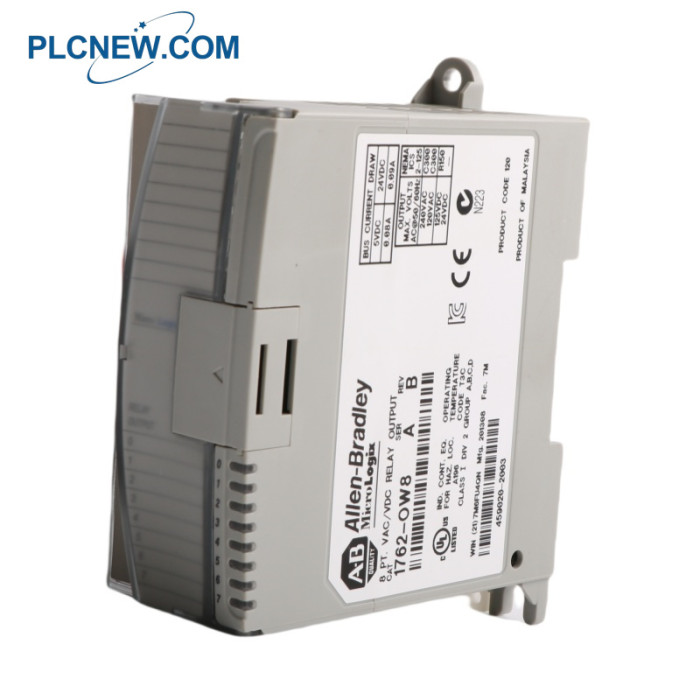

The 1762-OW8 is an eight (8) point AC/DC relay-type output module

designed for use with MicroLogix 1100/1200/1400 Programmable Logic

Controllers. It is part of the 1762 MicroLogix Expansion I/O Module series,

offering flexibility in industrial environments by expanding the I/O capabilities

of controllers in terms of type and quantity. Its rackless modular design reduces

the need for replacement parts inventory and enhances cost efficiency. The

1762-OW8 can be mounted on a panel or a DIN rail, providing versatile installation options.

The 1762-OW8 Output Module features an AC/DC normally-open relay voltage

category with an operating range of 5 to 265 Volts AC and 5 to 125 Volts DC.

It has a maximum bus current draw of 80 mA at 5 Volts DC (0.40 Watts) and 90 mA

at 24 Volts DC (2.16 Watts). The module supports a maximum continuous current

of 8 A per common and 16 A per module. It is recommended to install this module

no more than 6 modules away from the host device’s power supply. The module

includes two isolated output groups: outputs 0 to 3 and outputs 4 to 7.

The 1762-OW8 Relay Output Module can be mounted on EN 50 022 35 x 7.5 mm

or EN 50 022 35 x 15 mm DIN rails. For installations in high-vibration or high-shock

environments, DIN rail end anchors are recommended. For even greater vibration

resistance, panel mounting is advised. During installation, ensure that debris does

not fall into the module to prevent potential damage. This module is designed to

deliver reliable performance in demanding industrial applications.
