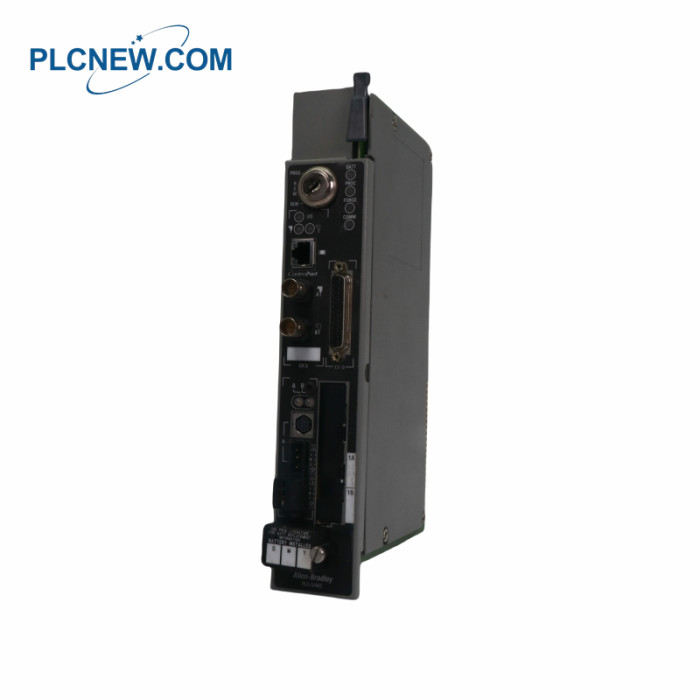

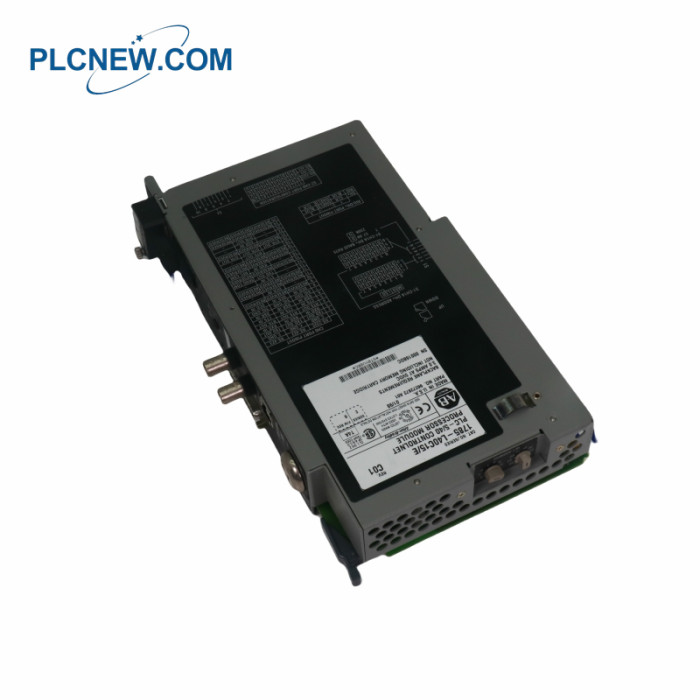

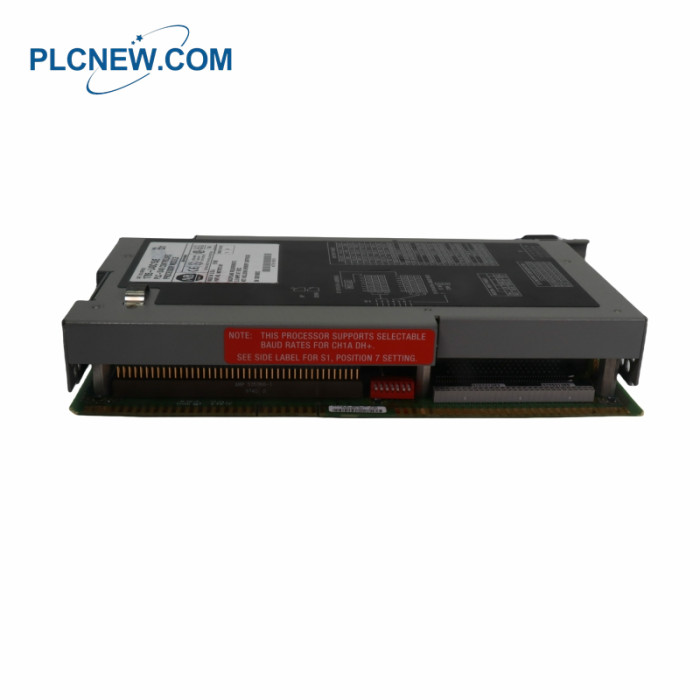

1785-L40C15/F PROCESSOR MODULE
1785-L40C15/F Specification
Model Number:1785-L40C15/F
Type:PROCESSOR MODULE
Processor Speed:10 MHz
Memory Capacity:2K words
Input/Output Channels:32 I/O
Communication Protocols:Modbus TCP/IP, DeviceNet
Operating Temperature Range:-10°C to 60°C
Power Supply Voltage:120/240 Vac
Dimensions:4.9x16.5x27.4cm
Weight:1.42kg
Controller Redundancy: Supported
Processor: PLC-5/40C
Max User Memory Words: 48 Kilowords
Controller Memory: Up to 48 Kwords
Hardware Addressing: 2-slot; 1-slot; 1/2-slot
1785-L40C15/F Description
The 1785-L40C15/F is a Programmable Controller (PLC) from the classic PLC5
series. This controller is specifically part of the 1785 ControlNet PLC5
Programmable controllers, equipped with dual ControlNet communication
interface with secondary and tertiary interfaces.
The 1785-L40C15/F is designed to cater a maximum of controller memory up
to 48KWords, able to handle 2048 I/Os or 2048 Input and 2048 output when
operated in complimentary mode. It may be installed with memory modules to
the memory limit. This controller is capable of implementing distributed I/O
architectures with compatibility to a variety of distributed I/O platforms such as
Bulletin 1771 I/O, 1794 I/O, 1746 I/O, and 1791 I/O modules, including 8-point,
16-point, 32-point, specialty and intelligent modules.
The 1785-L40C15/F is equipped with a battery that is used to retain the processor’s
Random Access Memory (RAM). This battery has a part number of 1770-XYC
which may be replaced only when the processor is actively supplied with power.
The 1785-L40C15/F also supports hot backup system through the 1785-CBHM
or ControlNet Hot Backup Cartridge. This module is installed to each of the
ControlNet processor rack for implementing high-speed processor switchover
and data transfer.
