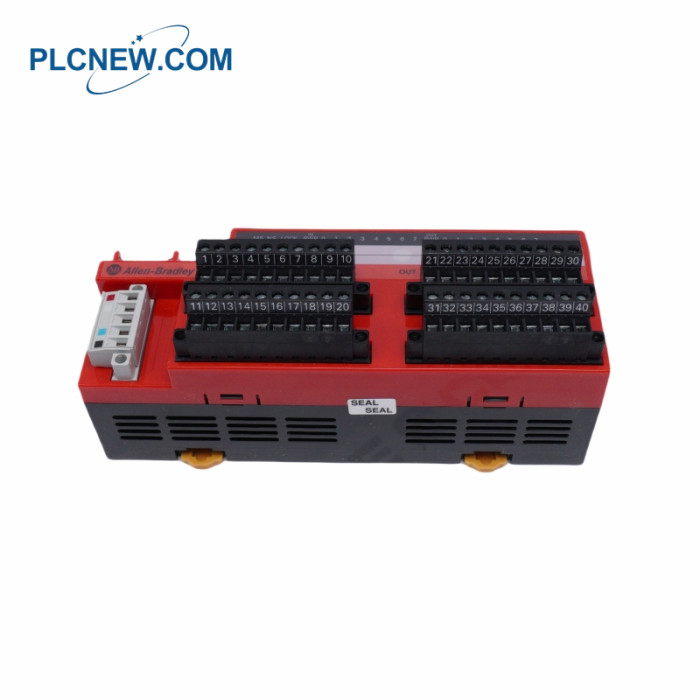

1791DS-IB8XOB8 I/O Devicenet Safety module

1791DS-IB8XOB8 I/O Devicenet Safety module

1791DS-IB8XOB8→Specification

Brand: PLC Module
Product Type:I/O Devicenet Safety module
Part Number: 1791DC-IB8XOB8
Inputs: 8 sinking inputs
Input Voltage Range: 11V DC minimum (ON-state)
Outputs: 8 sourcing outputs
Rated Output Current: 0.7 A
Test Outputs: 4 sourcing outputs
Communications Current Consumption: 110 mA at 24V DC
I/O Power Supply Voltage: 20.4 to 26.4V DC (24V DC, -15% to +10%)
Operational Temperature Range: -40°C to +70°C (-40°F to 158°F)
Power Consumption: 110 mA at 24V DC
Dimensions: 2.68 x 6.70 x 2.84 inches
Weight: 0.92 pounds

1791DS-IB8XOB8→Description

The I/O DeviceNet Safety Module with catalog number 1791DS-IB8XOB8 is a safety

output module with solid state outputs. This module has embedded I/O modules such

as Eight (8) Safety Input, Eight (8) Solid State outputs and Four (4) Test Outputs.

The 1791DC-IB8XOB8 module comes with an enclosure with Ingress Protection (IP)

20 rating. It can be used in applications that require Safety Integrity Level (SIL) 3.

It complies with the IEC 61508 standard, and Safety Category 4 as specified in the

EN 954-1.

The safety inputs are designed for Sink wiring configuration with minimum On state

voltage of 11VDC and input current of 6 mA. The Test output channels support

sourcing configuration with rated output current of 0.7A with maximum residual

voltage of 1.2V and maximum leakage current of 0.1 mA. The Safety outputs

supports sourcing wiring as well, with rated output current of 0.5A, maximum

residual voltage of 1.2V and maximum leakage current of 0.1 mA.

The 1791DC-IB8XOB8 has built-in Self-diagnostic functions and configuration

lock feature. The module’s integrated I/O status data provide information

regarding Individual Point Input Status, Combined Input Status, Individual Point

Output Status, Combined Output Status, Individual Test Output Status, and

Individual Output Readback (actual ON/OFF state of the outputs).
