1794-OW8 Specification
Part Number/Catalog No.:1794-OW8
Enclosure:Open-type
Mounting:DIN Rail
Wire Size:Determined by installed terminal base
Operating Temperature:0 to 55 C (32 to 131 F)
Storage Temperature:-40 to 85 C (-40 to 185 F)
Vibration:5g @ 10 to 500 Hz
Operating Shock:30 g
Product Type:Flex I/O Relay Output Module
Outputs:8 Relay
Off-state Leakage Current:1.0mA through Snubber Circuit
Relay Contact:250 Volts AC
Initial Contact Resistance:30 m

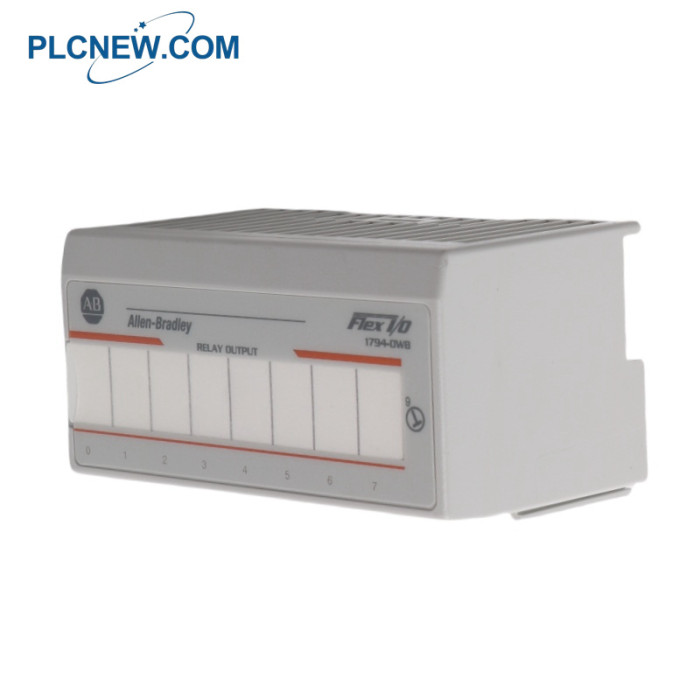

The 1794-OW8 is a relay output module belonging to the Flex I/O
product family. It features eight (8) isolated Normally Open (N.O.)
electromechanical relays, each rated for 250V AC, 2 A, 50/60Hz for
resistive loads. The relays also support 120/240V AC, 50/60Hz, 1800V A Make,
180V A Break, and 5…30V DC, 2 A for resistive loads. This module is
designed for reliable switching in industrial applications.
The 1794-OW8 is compatible with terminal base units such as 1794-TB2,
1794-TB3, 1794-TB3S, 1794-TBN, and 1794-TBNF. When using the 1794-TBNF
terminal base, a 3.0 Ampere, 250VAC slow-blow fuse or the recommended fuse
with part number 239003 is required. The module has an off-state leakage current
of 1.0 mA through a snubber circuit and a minimum contact load rating of 100 μA @
100 mV DC. Its pilot duty rating is R150, 5...30V DC, 28V A, with a maximum current of 1 A below 28V DC.
