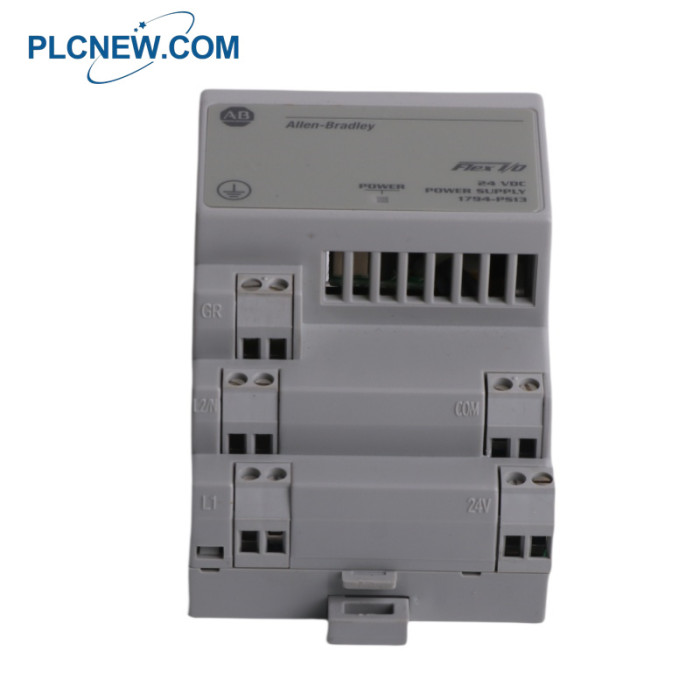

1794-PS13 Flex I/O DC Power Supply Module

1794-PS13 Flex I/O DC Power Supply Module

1794-PS13 Specification

Part Number/Catalog No.1794-PS13
Product family:Flex I/O system
Product Description:Flex I/O Power Supply
Input Voltage range:85-264VAC
Input Frequency range:47-63 Hz
Nominal input voltage:120V AC, 50/60 Hz; 0.6 A max. 230V AC, 50/60 Hz; 0.42 A max.
Maximum input current:0.7 A
Output power:31.2 Watts
Output surge:Sufficient to drive 4 adapters
Overcurrent protection:1.4 A
Power dissipation, max:7 W
Product Type:Flex I/O DC Power Supply Module
Supply Voltage nom.:30V AC, 47-63Hz, 0.6A max.
Voltage Range:85-265V AC

1794-PS13 Description

The 1794-PS13 is a power supply module that is part of the PowerFlex I/O product family.

This power supply is designed to deliver sufficient power to support up to four (4) adapters.

It operates with a wide voltage input range of 85-264 VAC, 47-63 Hz and provides a nominal

output voltage of 24 VDC.

The 1794-PS13 is compatible with the installation methods of the entire PowerFlex I/O system.

It supports daisy chaining of the supply output to power connected adapters and can be used in

combination with both AC and DC modules. The power supply includes a built-in indicator that lights

up green when the output voltage is between 20.4 VDC and 28 VDC. The indicator remains off in the

following scenarios:
No power is applied to the power supply.
The output voltage exceeds 35 VDC, triggering overvoltage protection.
The output current exceeds 1.4 A.

The 1794-PS13 has compact physical dimensions of 87 mm (H) x 69 mm (W) x 69 mm (D) or 3.4

in (H) x 2.7 in (W) x 2.7 in (D). It features an open-type enclosure and requires wiring with a size of

0.34-2.5 mm² (22-12 AWG), using solid or stranded copper wire with an insulation rating of at least

75 °C (167 °F) and a maximum insulation thickness of 1.2 mm (3/64 in). The module is rated for

Category 2 wiring and requires a torque of 0.8 Nm (7 lbs-in) to secure connections.

The power supply provides an output voltage range of 20.4-27.6 VDC, including noise and 5% AC ripple.

 It delivers an output current of 1.3 A, an output power of 31.2 Watts, and an output ripple of 1200 mV peak-to-peak.
