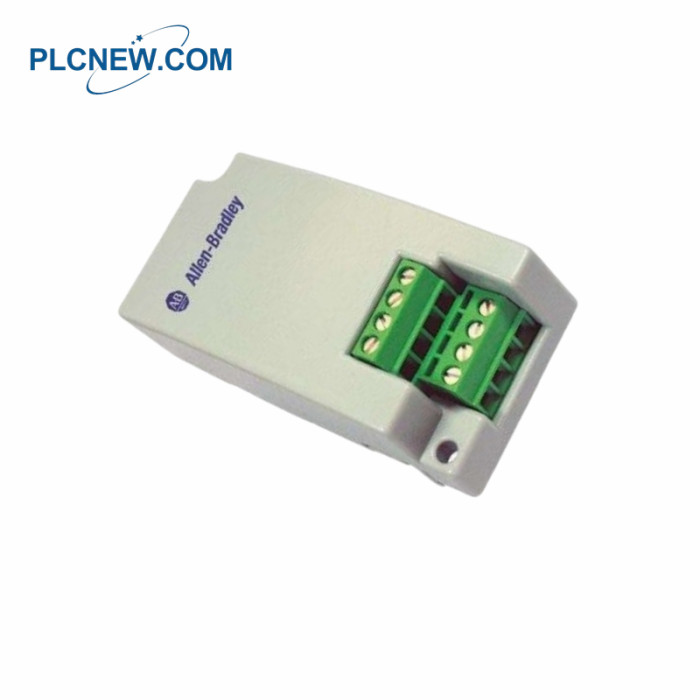

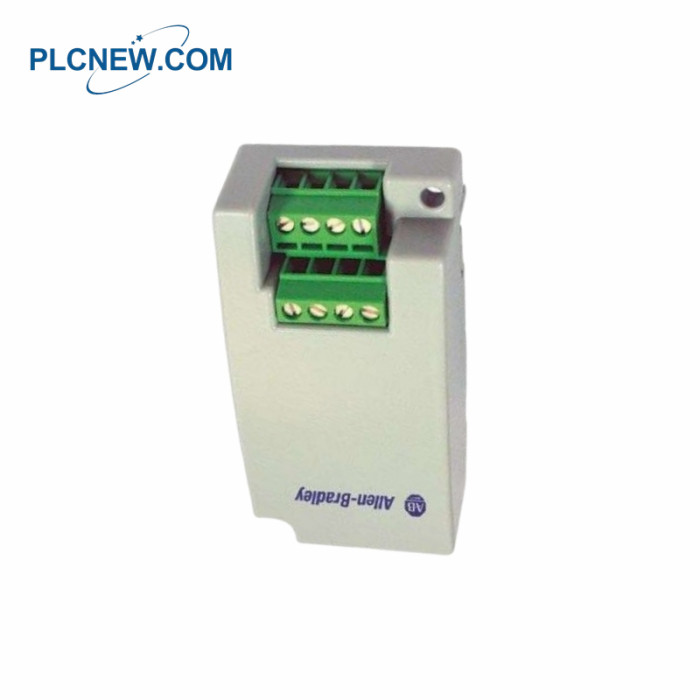

2080-IF2 Analog Input Module

2080-IF2 Analog Input Module

2080-IF2 Specification

Brand:PLC module
Part Number/Catalog No.: 2080-IF2
Product Type: Analog Plug-in Module
Module Type: Analog
Number of Single-Ended Inputs: 2
Analog Normal Operating Voltage Range: 0-10V DC
Analog Normal Operating Current Range: 0-20mA
Data Range: 0-65535
Repeatability: +/- 0.1%
Update Time: 180ms per Enabled Channel
Input Group to Bus Isolation/Channel to Channel Isolation: Non-Isolation
Operating Altitude: 2000m
Max. Cable Length: 10m

2080-IF2 Description

The 2080-IF2 is a Micro800 Analog Input Module. It is a plug-in module and can be

snapped into a Micro800 controller, expanding its application capabilities without

increasing its size. The Micro800 system can be customized according to user needs

with embedded analog input. A single Micro800 controller can support up to 20

embedded analog inputs. The 2080-IF2 module contains 2 single-ended non-isolated

inputs with an operating voltage of 0 – 10V DC and operating current of 0 – 20 mA.

It has 12-bits unipolar resolution across a full range of the device. It has an overall

accuracy of a 1% Full-Scale for voltage and current including offset, gain, non-linearity,

and repeatability error. It has a channel update time of 180ms with no field input

calibration requirement. It has 12-pin female terminal blocks for wiring. The cable used

for wiring must have a maximum length of 10 meters. For installation, it can be plugged

into any slot of the Micro800 controller. The 2080-IF2 module is intended for use in a

clean and dry industrial environment with an operating temperature of -20-65 °C

(-4-149 °F) 5-95% non-condensing relative-humidity and a 2000m operating altitude.
