2080-LC20-20QWB Controller

2080-LC20-20QWB Controller

2080-LC20-20QWB Specification

Model:2080-LC20-20QWB
Product Family:Micro 800
Controller Type:ENet/IP
Communication Protocol:Ethernet/IP
I/O Count:20 Inputs / 20 Outputs
Power Supply:12-48VDC
Operating Temperature:-20°C to +60°C
Dimensions (WxHxD):3.54 x 4.09 x 2.95 in.
Mounting Type:Panel Mount
Enclosure Protection:IP20
Power Input:24V DC
Power Dissipation:6 W
Power Supply Voltage Range:20.4-26.4V DC, Class 2
Enclosure Meets:IP20
Relay Output Voltage min.:5V DC/ AC
Relay Output Voltage max.:250V AC

2080-LC20-20QWB Description

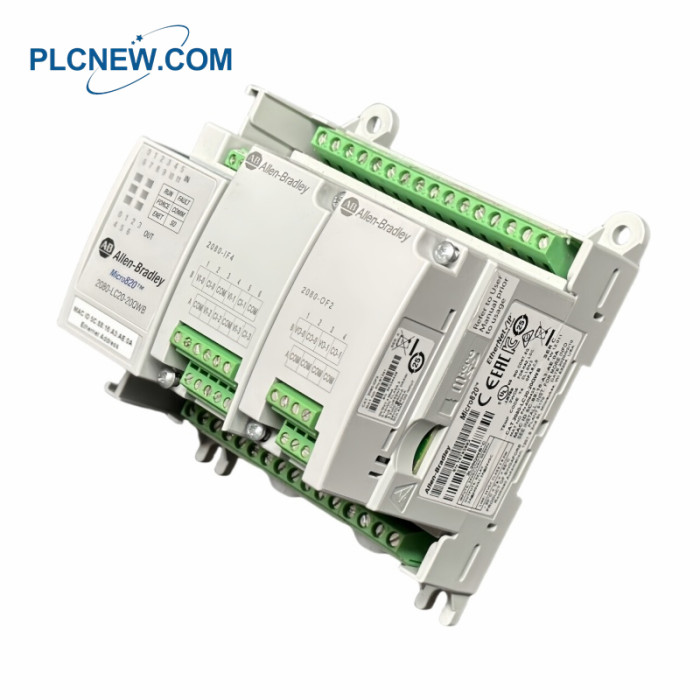

The 2080-LC20-20QWB is a Micro 800 Programmable Controller (PLC). This

controller is specifically part of the Micro 820 sub-category. This PLC has an

embedded 24VDC rated power supply which becomes operational when supplied

by an external supply voltage of 120 / 240VAC nominal voltage.

The 2080-LC20-20QWB is part of latest releases of new generation PLCs that is

especially designed to cater the micro niche. This controller features an integrated

Twelve (12) 24VDC / VAC discrete inputs; Seven (7) Relay outputs; Four (4) 0-10V

(shared with 24V DC) analog input channels and One (1) 0-10VDC analog output

channel. This controller also comes with an embedded Ethernet I/P communication

interface; One (1) RS232/485 non-isolated combo port that supports CIP Serial,

Modbus RTU, ASCII communication protocols; One (1) USB port that may be used

for USB -Serial passthrough as well as programming and configuration. Additionally,

it has a Pulse Width Modulation (PWM) output with frequency of 5 kHz.

The 2080-LC20-20QWB supports used of a MicroSD card for non-volatile

storage. Compatible microSD card is a Class 6 and 10 SDSC and SDHC card

with data format of FAT32 / FAT 16. This controller supports insertion of up to

32GB card to the single microSD slot. This module also comes with Two (2)

available module plug-in slots for insertion of additional I/O modules.
