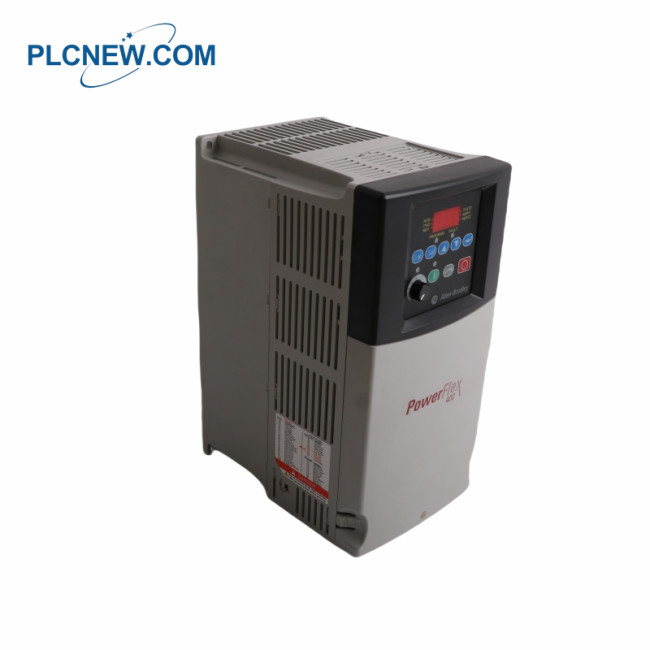

22B-D010N104 AC Drive

22B-D010N104 AC Drive

22B-D010N104 Specification

Brand: PLC Module
Model Number:22B-D010N104
Type:DAC Drive
Product Line: PowerFlex 40
Input Voltage: 380-480VAC
Input Phase: 3-Phase
Rated Current Output: 10.3 A
Rated Power: 4.0 kW (5.0 HP)
Installation: Panel Mount
Enclosure Rating: IP20 / NEMA UL Type Open
Keypad: LED Keypad
Built-in Communication Port: RS-485
Discrete Inputs: 3 fixed for START/STOP/REV; 4 fully programmable
Discrete Outputs: 4 fully programmable
Analog Input: 2 (0-10V or 4-20 mA unipolar), 1 (+/-100V bipolar)
Discrete Output: 1 N.O./N.C. dry contact; 2 Digital / Optocoupler
Voltage: 480 Volts AC
Horsepower: 5 HP
Amperage: 10.0 Amps
Phases: 3
Communication: RS-485
Input Type: Keypad
Preset Speeds: 8
Frame Size: B
Enclosure: IP20, NEMA/UL
Dimensions:13x18x26cm
Weight:3.6kg

22B-D010N104 Description

The 22B-D010N104 Powerflex 40 is a 3-phase drive that is supplied with a

nominal voltage of 480 Volts AC. This drive supports panel mounting with a

human Interface Module (HIM) that users can use to configure, monitor and control

the drive.

The 22B-D010N104’s input voltage range is 340 to 528 Volts AC with an apparent

input power of 10.8 KV at 13 Amps. It has an output power of 4kW (5 Horsepower)

and an output current of 10.5 Amps. The 22B-D010N104 recommended fuse rating is

20 A UL Class J, CC, T or Type BS88; 600V fuse type while the recommended motor

circuit protection is 140M-C2E-C16. The 22B-D010N104 has an output

programmable frequency range of 0 to 400 Hertz and an operational efficiency of

97.5%. It has a digital input voltage at SRC of 18 to 24 Volts in the on state, and 0

to 6 Volts in the off state. It also has a 0 to 6 Volts off sink mode and an 18 to 24

Volts on sink mode. The 22B-D010N104 also has an analog input with 4 to 20 mA

at a 250 Ohm input impedance, and a 0 to 10 Volts DC voltage at a 100k Ohm

input impedance. The 22B-D010N104 can communicate with other devices through

an RS-485 communication port.

The 22B-D010N104 has 4 discrete programmable inputs and it is a frame B which

measures 180.07 x 100 x 136 millimeters and a weight of 2.22 kilograms (4.9 pounds).

rated IP20, NEMA/UL enclosure. It has a storage temperature range of -40 to 185

degrees Fahrenheit. The 22B-D010N104 drive features integral RS-485 communication

and it is compatible with PC tools that assist with monitoring, troubleshooting,

and programming. This PowerFlex 40 drive is equipped with sensorless vector

control, which allows the drive to automatically provide auto-boost and slip

compensation. With this feature, the 22B-D010N104 is also able to provide

exceptional speed regulation and high torque levels across the speed range of

the drive, even as its load increases.

Through the integrated Sensorless Vector control, the 22B-D010N104 is capable

of providing high-starting Torque and excellent speed regulation. Combined with the

Process Proportional + Integral + Derivative (PID) algorithm capability, the VFD itself

can act as a controller and self-regulate.
