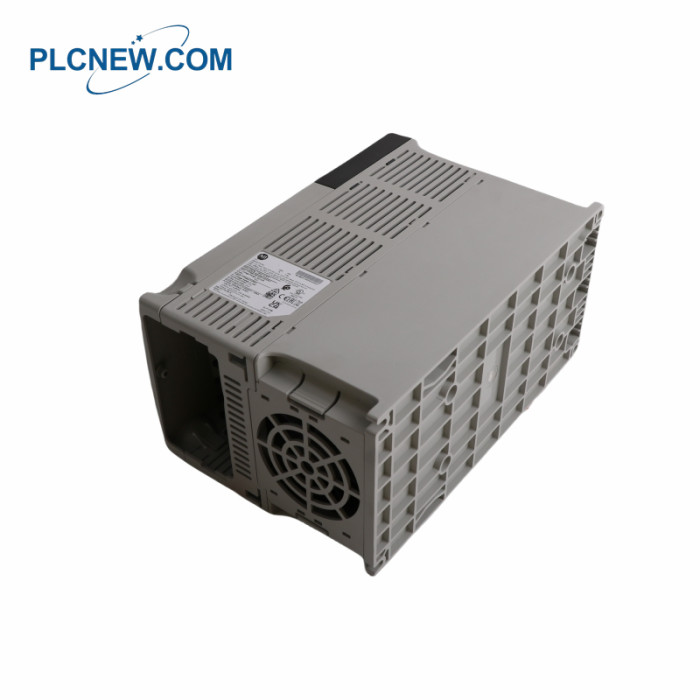

22B-D017N104 PowerFlex 40 AC Drive

22B-D017N104 PowerFlex 40 AC Drive

22B-D017N104 Specification

Brand: PLC Module
Type:PowerFlex 40 AC Drive
Part Number/Catalog No.: 22B-D010N104
Product Line: PowerFlex 40
Input Voltage: 380-480VAC
Input Phase: 3-Phase
Rated Current Output: 10.3 A
Rated Power: 4.0 kW (5.0 HP)
Installation: Panel Mount
Enclosure Rating: IP20 / NEMA UL Type Open
Keypad: LED Keypad
Built-in Communication Port: RS-485
Discrete Inputs: 3 fixed for START/STOP/REV; 4 fully programmable
Discrete Outputs: 4 fully programmable
Analog Input: 2 (0-10V or 4-20 mA unipolar), 1 (+/-100V bipolar)
Discrete Output: 1 N.O./N.C. dry contact; 2 Digital / Optocoupler
Voltage: 480 Volts AC
Horsepower: 5 HP
Amperage: 10.0 Amps
Phases: 3
Communication: RS-485
Input Type: Keypad
Preset Speeds: 8
Frame Size: B
Enclosure: IP20, NEMA/UL
Dimensions:13x18x26cm
Weight:3.6kg

22B-D017N104 Description

The 22B-D017N104 drive is an adjustable frequency AC drive from the

compact PowerFlex40 series of AC drives manufactured. This powerful AC

drive features a human interface module (HIM), a fixed digital keypad, an

LCD, and Essential RS-485 communications with the options of using the

DeviceNet, ControlNet, Ethernet/IP, BACnet, and LonWorks communication

adapter.

The output current ratings of the 22B-D017N104 drive are 17.0 Amps at 380-480

Volts AC +/-10%. The output voltages of the 22B-D017N104 are 342 to 528 Volts

AC and the drive has 10 Horsepower (7.5 kW) power ratings. In the event of an

overvoltage, a trip occurs at 810 Volts DC bus voltage (575 Volts AC incoming

line voltage) and in the case of an under voltage scenario, a trip occurs at 390

Volts DC bus voltage (275 Volts AC incoming line).

Furthermore, the ambient operating temperature range of the 22B-D017N104 drive

is 10-50 degrees Celsius or 14-122 degrees Fahrenheit with panel mounting and an

open IP20 NEMA/UL enclosure. The storage temperature range for the drive is

40-85 degrees Celsius or 40-185 degrees Fahrenheit. The minimum ride-through

is 0.5 seconds, a typical value is 2 seconds and a faultless power ride-through is

100 milliseconds. Moreover, the 22B-D017N104 drive offers powerful features

with optimized performance, including relay pre-charge, source control for wiring

flexibility, robust overload protection, adjustable PWM frequency for quiet

operation, sensorless vector control and an integral IGBT brake mechanism. If

the drive is used on ungrounded distribution systems, it offers a protective removable

MOV to the ground that provides trouble-free operation for industrial applications.

The PowerFlex 40 drives, including the 22B-D017N104 is a Sensorless Vector

Control Drive that exhibits excellent speed control, capable of providing varying

output torque as well as high-starting Torque, ideally used not only for general

purpose applications but for lifting and similar applications. This drive is also

capable of PID control algorithm, making it a controller itself. It has an integral

IGBT brake and a fixed keypad with LCD readout used for local monitoring,

control and configuration of the drive.
