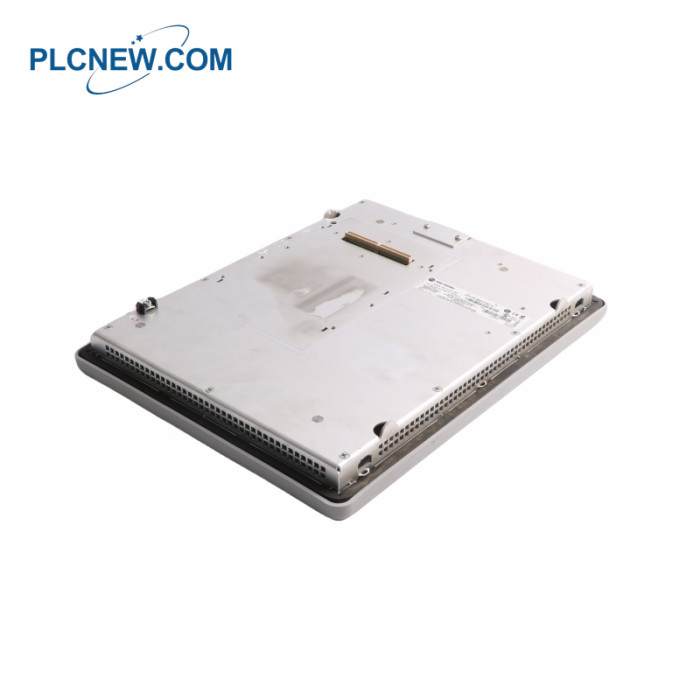

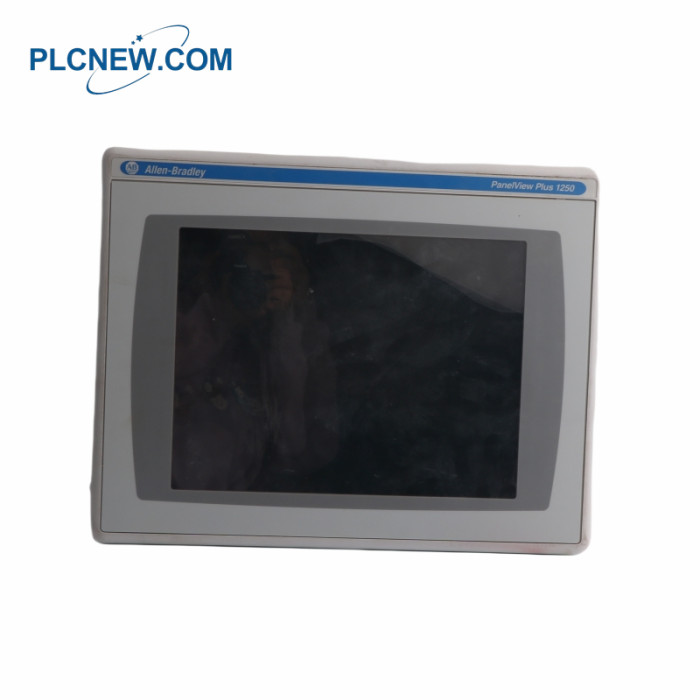

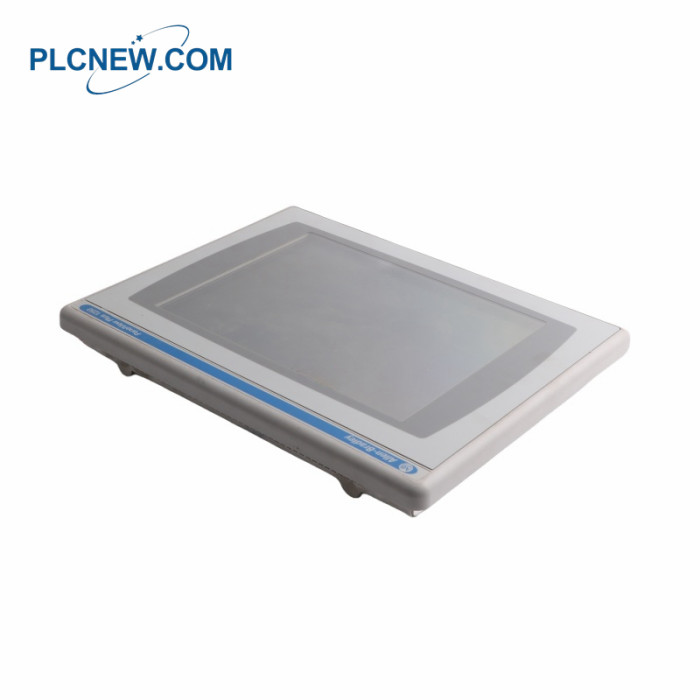

2711P-RDT12C Operator Interface Module

2711P-RDT12C Operator Interface Module

2711P-RDT12C Specification

Type:Operator Interface Module
Model:2711P-RDT12C
Manufacturer:PLC Module
Resolution: 800 x 600 pixels
Display Colors: 18-bit color graphics
Luminance: 300 cd/m² (Nits)
Input Interface: Touchscreen
Anti-Glare Overlay: Not included
Touch Input: 8-wire analog resistive
Touch Interface Lifespan: 1 million actuations
Actuation Force: 10-110 g
Part Number/Catalog No.: 2711P-RDT12C
Product Line: PanelView Plus 6
Input Type: Touchscreen
Display: 12.1 inches, Color
Memory: 128 MB
Communication: Ethernet, RS-232, and USB interfaces
Dimensions:36.3x4.6x28.2cm
Weight:2.3kg

2711P-RDT12C Description

The 2711P-RDT12C is a replacement unit for the pre-installed display module of

PanelView Plus and PanelView Plus 6 1250 Touch operated terminals. Not only

that it provides colored graphic display, but this component also comes with an

embedded 8-wire analog resistive touch interface with an actuation lifespan of up

to 1 million presses at 10-110 g of actuation force.

The 2711P-RDT12C has a display screen that measures 12.1-inches. It is capable

of displaying colored static displays and animations. This display module has a

resolution of 800 x 600 pixels and effective display area of 246 x 184 mm (9.69 x 7.25 in).

The main function of the 2711P-RDT12C display module is to provide the visualization

and input capability to the system. The operator monitors through this module and

enters control commands and modification by interacting directly to the touch

sensitive screen.

To maximize the operation lifespan of the 2711P-RDT12C display module, maintain

the unit by wiping off any contaminant build-up on the surface. Use a soft cloth

that is slightly wetted with water and mild soap mixture or isopropyl alcohol.

Wipe the contaminants slightly. Additionally, use a gloved finger when operating

and interacting with the display module. If glove is not available, actuate the terminal

using a finger free of contaminants.

Install this module when the process is not operational. Ideally, remove supply power

when installing this display module. This way, unwanted actuation caused by handling

of the unit will not cause unintended operation or machine behavior. Do not place

this display module on uneven surfaces and ungrounded areas.
