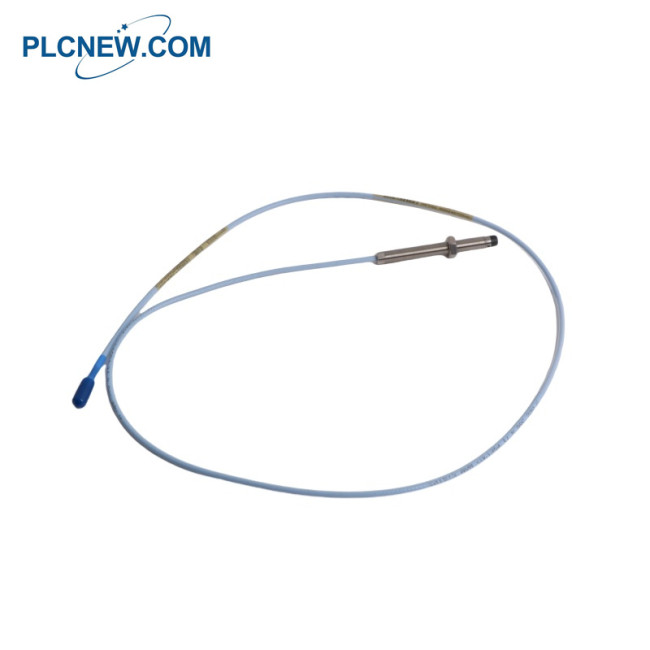

330101-00-25-20-12-05 Bently Nevada 3300 XL 8mm Proximity Probes

330101-00-25-20-12-05 Bently Nevada 3300 XL 8mm Proximity Probes

330101-00-25-20-12-05 Bently Nevada Description

The 3300 XL 8 mm Proximity Transducer System includes:
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
This system provides an output voltage directly proportional to the distance

between the probe tip and the observed conductive surface. It is capable of

measuring both static (position) and dynamic (vibration) values. The system

is primarily used for vibration and position measurements on fluid-film bearing

machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system offers superior performance in our eddy current proximity

transducer lineup. The standard 3300 XL 8 mm 5-meter system fully meets the American

Petroleum Institute’s (API) 670 Standard, ensuring compliance in terms of mechanical

configuration, linear range, accuracy, and temperature stability. Additionally, all 3300 XL

8 mm proximity transducer systems provide this high level of performance and ensure

complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating

the need for matching or bench calibration of individual components.

330101-00-25-20-12-05 Bently Nevada Specifications

A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.

B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.

C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
30 3.0 meters (9.8 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
