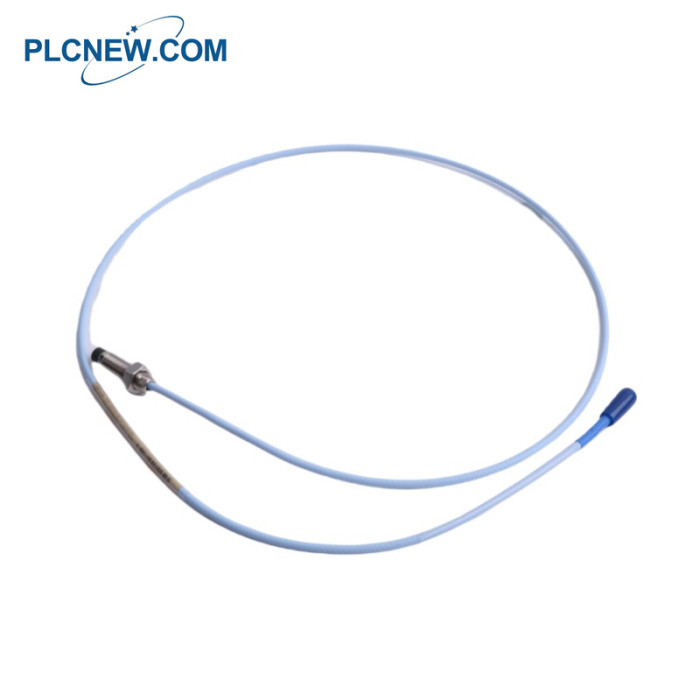

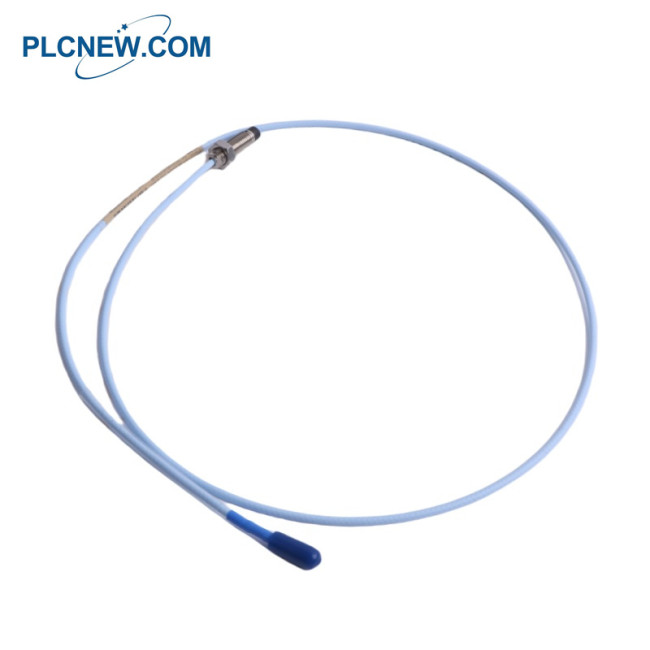

330101-00-55-20-12-05 Bently Nevada 3300 XL 8mm Proximity Probes

330101-00-55-20-12-05 Bently Nevada 3300 XL 8mm Proximity Probes

330101-00-55-20-12-05 Bently Nevada Description

The 3300 XL 8 mm Proximity Transducer System includes:
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
This system provides an output voltage directly proportional to the distance

between the probe tip and the observed conductive surface. It is capable of

measuring both static (position) and dynamic (vibration) values. The system is

primarily used for vibration and position measurements on fluid-film bearing

machines, as well as Keyphasor reference and speed measurements.

The 330101-00-55-20-12-05 3300 XL 8 mm system offers superior performance in

our eddy current proximity transducer lineup. The standard 3300 XL 8 mm 5-meter

system fully meets the American Petroleum Institute’s (API) 670 Standard, ensuring

compliance in terms of mechanical configuration, linear range, accuracy, and temperature

stability. Additionally, all 3300 XL 8 mm proximity transducer systems provide this high level

of performance and ensure complete interchangeability of probes, extension cables, and

Proximitor sensors, eliminating the need for matching or bench calibration of individual components.

330101-00-55-20-12-05 Bently Nevada Specifications

A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.

B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.

C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
30 3.0 meters (9.8 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
