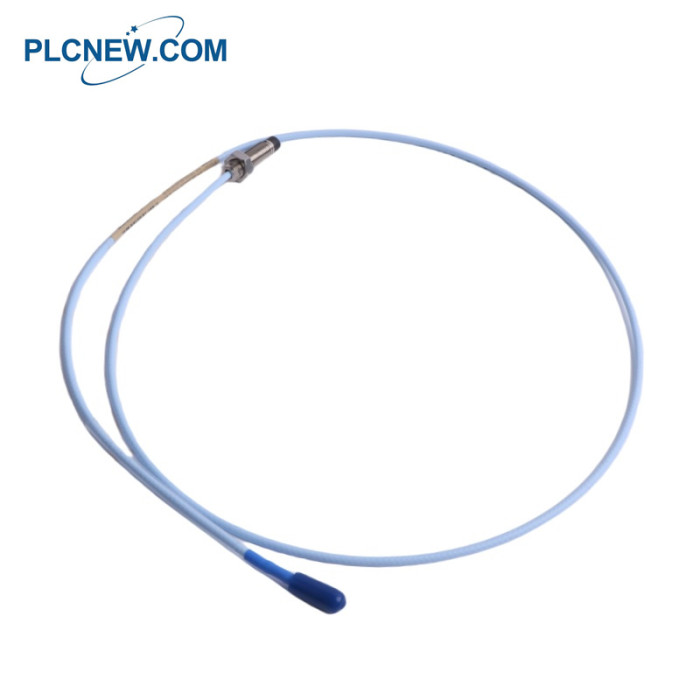

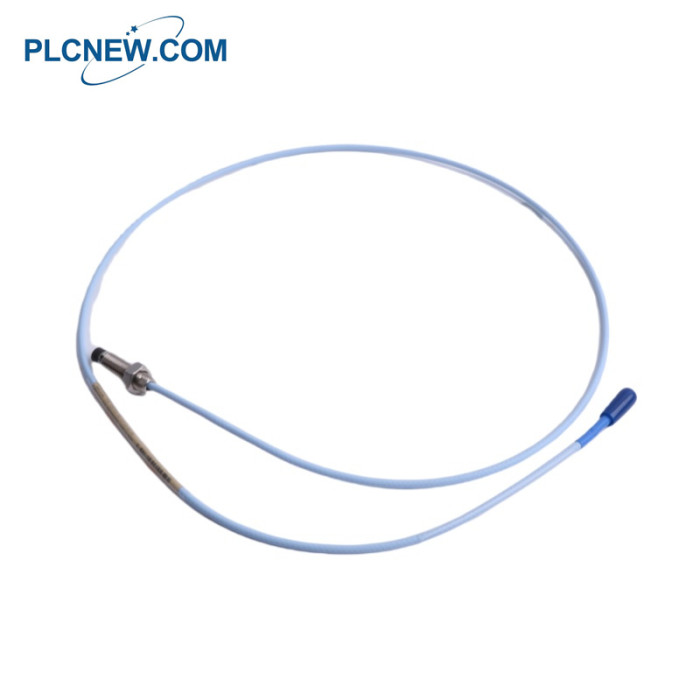

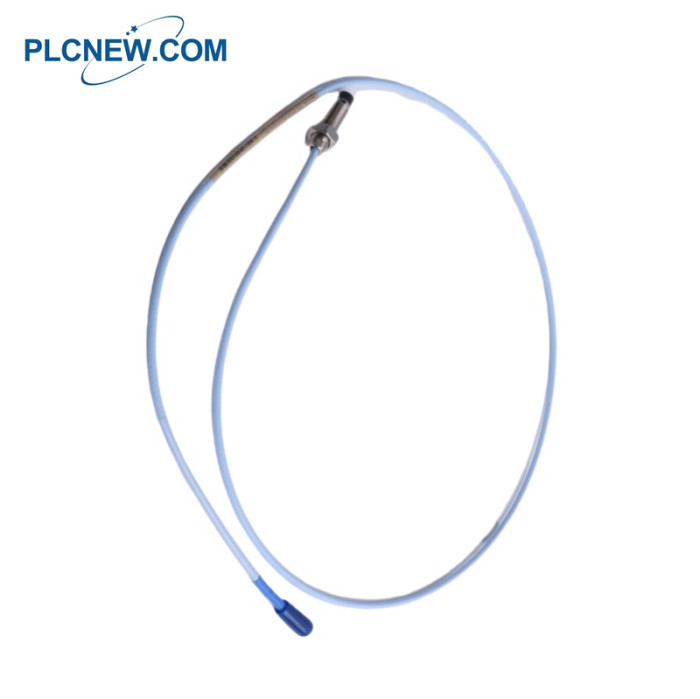

330101-00-68-10-12-05 Bently nevada 3300 XL 8 mm Probe

330101-00-68-10-12-05 Bently nevada 3300 XL 8 mm Probe

330101-00-68-10-12-05 Bently nevada Specification

A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in

B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in

C: Total Length Option
05：0.5 meter (1.6 feet)
10：1.0 meter (3.3 feet)
15：1.5 meter (4.9 feet)
20：2.0 meters (6.6 feet)
30：3.0 meters (9.8 feet)
50：5.0 meters (16.4 feet)
90：9.0 meters (29.5 feet)

330101-00-68-10-12-05 Bently nevada Description

The output voltage provided by the system is directly proportional to the

distance between the probe tip and the observed point. The system measures

both static (position) and dynamic (vibration) values, with the output voltage being

proportional to the distance between the probe tip and the observed conductive surface.

This system is primarily used for vibration and position measurement of fluid film

bearing machines, as well as Keyphasor* reference and speed measurements.
The 330101-00-68-10-12-05 3300 XL 8 mm system features the most advanced

performance in eddy current proximity sensor technology. The standard 3300 XL 8 mm

5-meter system fully complies with the American Petroleum Institute (API) 670 standard

(Fourth Edition), including mechanical configuration, linear range, accuracy, and temperature stability.

All 330101-00-68-10-12-05 3300 XL 8 mm proximity sensor systems offer this performance

level and support complete interchangeability of the probe, extension cable, and Proximitor

sensor without the need to match or calibrate individual components.

Each 330101-00-68-10-12-05 3300 XL 8 mm sensor system component is backward compatible

and interchangeable with other non-XL sensor system components. This compatibility extends to

3300 5 mm probes, making it suitable for applications where the 8 mm probe is too large to fit

within existing installation space.

Contact information

Welcome to contact→【Sales Manager】:Lisa

 sales7@amikon.cn      86-18965423501   86-18965423501   AMKPLC

Please note that here is only part of the model, if you have the need, please contact us.

Packing & Shipping
1. All the goods will be tested before shipment.
2. New and origin factory individual sealed inner box
3. We can ship to you by DHL/TNT/UPS/EMS/Fedex..
4. Pls contact us directly and we will ship as your requirement.

5. We will ship the items within 3 working days after the payment is reached

FAQ:

1. Are your product brand-new and original?
Yes,100% brand-new and original products.
2.How long is the quality guarantee for your products?
All our products with 1 year warranty.
3.When will you delivery the goods?
With stock, we will arrange delivery in about 3 to 5 days; without stock,
it will take relatively
long time, but it won't be too long, it mainly depends on order quantity.
4.What are your terms of payment?
Generally through T/T, western union and PayPaL.
