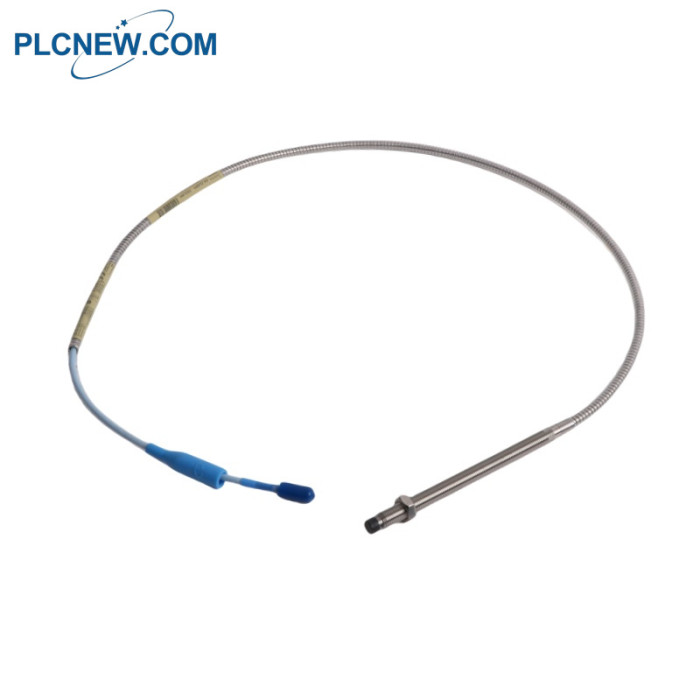

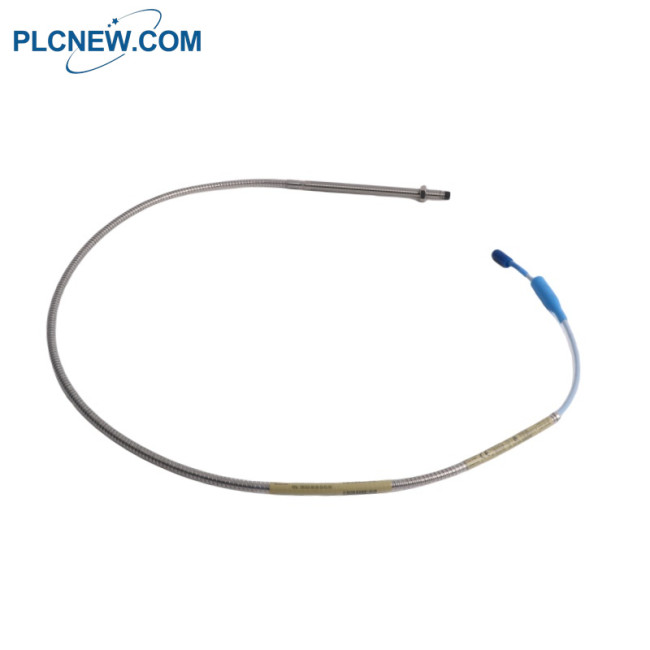

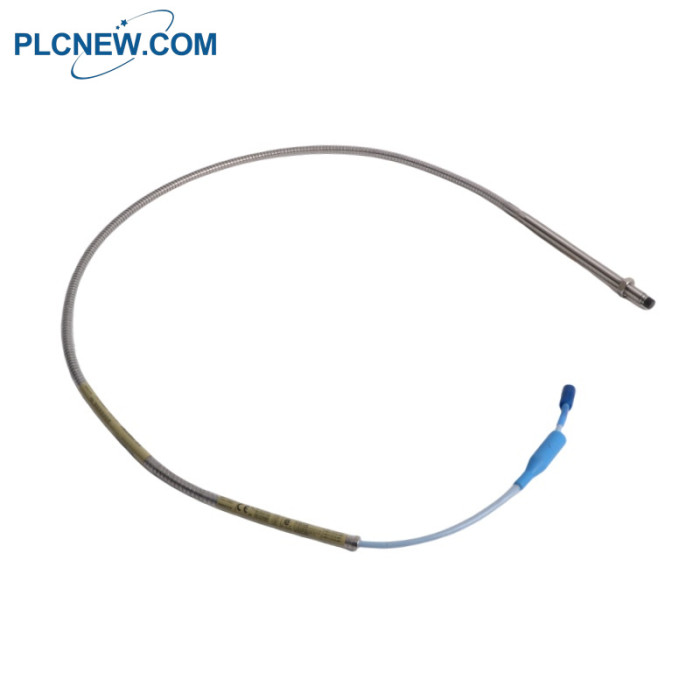

330102-04-78-05-02-05 Bently Nevada Proximity Probes

330102-04-78-05-02-05 Bently Nevada Proximity Probes

330102-04-78-05-02-05 Bently Nevada Specification

330102：3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor(2)
A: Unthreaded Length Option

Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in

B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in

C: Total Length Option
05：0.5 meter (1.6 feet)
10：1.0 meter (3.3 feet)
15：1.5 meter (4.9 feet)
20：2.0 meters (6.6 feet)
30：3.0 meters (9.8 feet)
50：5.0 meters (16.4 feet)
90：9.0 meters (29.5 feet)

330102-04-78-05-02-05 Bently Nevada Description

The output voltage provided by the system is directly proportional to the distance

between the probe tip and the observed point. The system measures both static (position)

and dynamic (vibration) values, with the output voltage being proportional to the distance

between the probe tip and the observed conductive surface.

This system is primarily used for vibration and position measurement of fluid film bearing

machines, as well as Keyphasor* reference and speed measurements.
The 330102-04-78-05-02-05 3300 XL 8 mm system features the most advanced performance

in eddy current proximity sensor technology. The standard 3300 XL 8 mm 5-meter system

fully complies with the American Petroleum Institute (API) 670 standard (Fourth Edition),

including mechanical configuration, linear range, accuracy, and temperature stability.

All 330102-04-78-05-02-05 3300 XL 8 mm proximity sensor systems offer this performance

level and support complete interchangeability of the probe, extension cable, and Proximitor

sensor without the need to match or calibrate individual components.

Each 330102-04-78-05-02-05 3300 XL 8 mm sensor system component is backward compatible

and interchangeable with other non-XL sensor system components. This compatibility extends to

3300 5 mm probes, making it suitable for applications where the 8 mm probe is too large to fit

within existing installation space.
