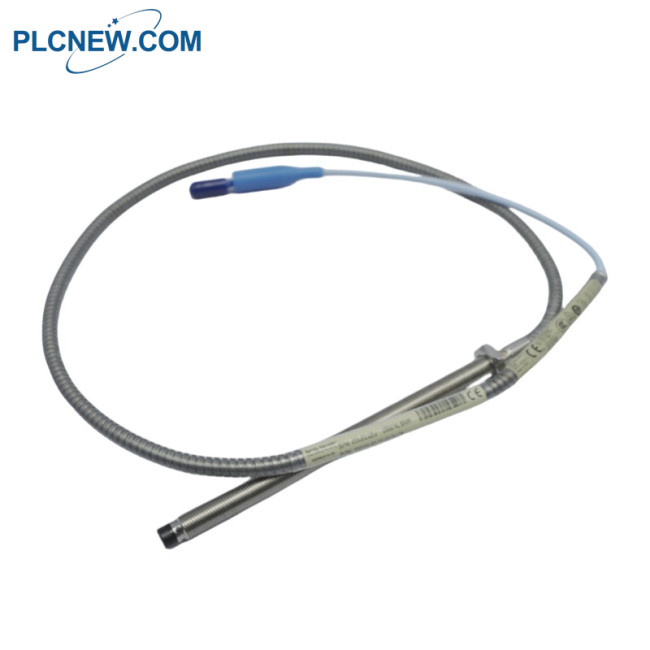

330104-04-10-10-02-05 Bently Nevada Proximity Probes

330104-04-10-10-02-05 Bently Nevada Proximity Probes

330104-04-10-10-02-05 Bently Nevada Description

The 3300 XL 8 mm Proximity Transducer System includes the following components:
One 3300 XL 8 mm probe,
One 3300 XL extension cable, and
One 3300 XL Proximitor Sensor.
This system generates an output voltage that is directly proportional to the distance between

the probe tip and the observed conductive surface. It is capable of measuring both static (position)

and dynamic (vibration) values. Its primary applications include vibration and position measurements

on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system represents the most advanced performance in eddy current proximity

 transducer systems. The standard 3300 XL 8 mm 5-meter system fully complies with the American

Petroleum Institute’s (API) 670 Standard, meeting requirements for mechanical configuration, linear

range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems deliver this high level of performance and support

complete interchangeability of probes, extension cables, and Proximitor sensors. This eliminates the

need for matching or bench calibrating individual components, ensuring ease of use and maintenance.

330104-04-10-10-02-05 Bently Nevada Specifications

A: Unthreaded Length Option
Order in increments of 10 mm
Length configurations:
Maximum unthreaded length: 230 mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm

B: Overall Case Length Option
Order in increments of 10 mm
Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 0 6 = 60 mm

C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
