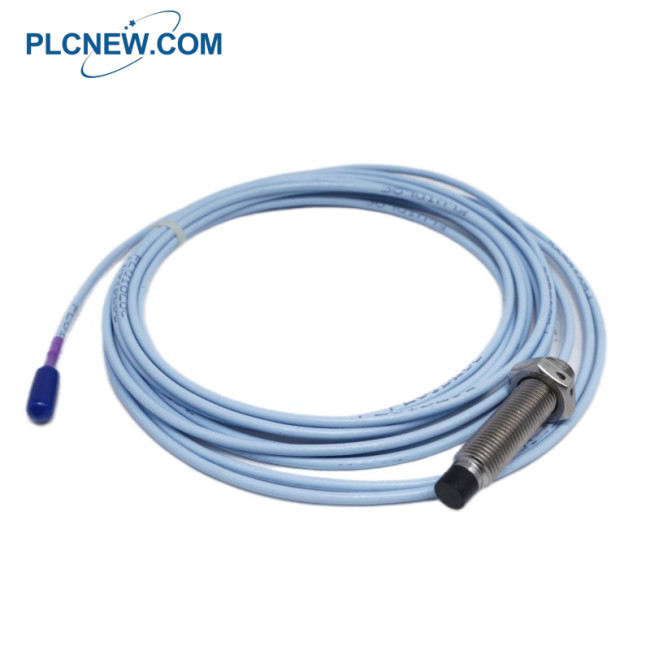

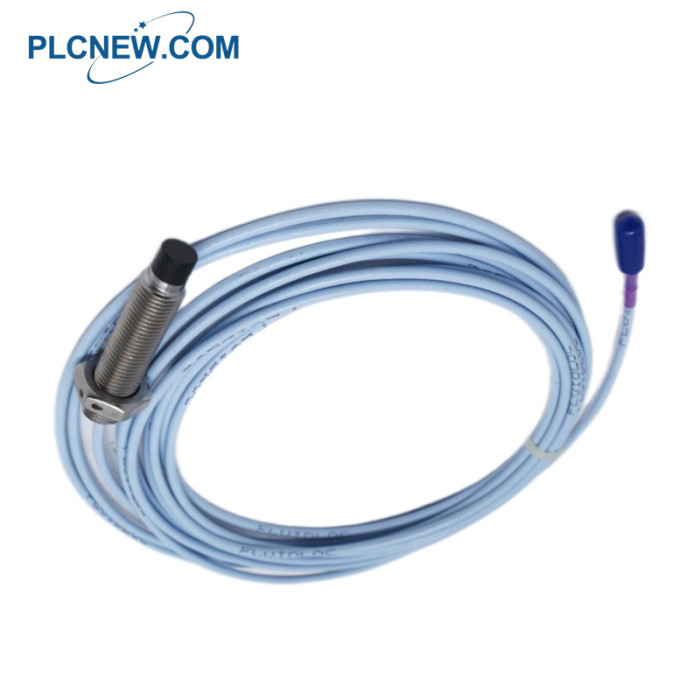

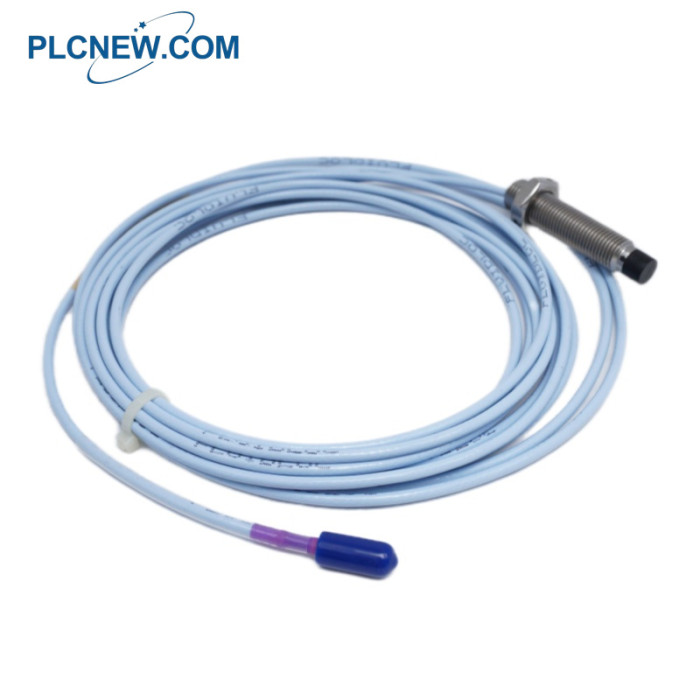

330703-000-050-10-02-05 Bently Nevada Proximity Probes

330703-000-050-10-02-05 Bently Nevada Description
The 3300 XL 11 mm Proximity Transducer System is a high-performance solution for

non-contacting vibration and displacement measurements on fluid film bearing machines. It includes the following components:
3300 XL 11 mm Probe
3300 XL 11 mm Extension Cable
3300 XL 11 mm Proximitor Sensor

This system delivers a 3.94 V/mm (100 mV/mil) output and features a large 11 mm tip, providing a longer linear range compared to the standard 3300 XL 8 mm Transducer System. Its extended measurement capabilities make it ideal for demanding applications.
Primary Applications:
Axial (Thrust) Position Measurements
Ramp Differential Expansion Measurements on Steam Turbines
Rod Position or Rod Drop Measurements on Reciprocating Compressors
Tachometer and Zero Speed Measurements
Phase Reference (Keyphasor) Signals

330703-000-050-10-02-05 Bently Nevada Specifications
A:Unthreaded Length Option
Order in increments of 2 mm.
Length configuration:
Maximum unthreaded
length: 224 mm
Minimum unthreaded length:
0 mm
Example: 0 6 0 = 60 mm

B: Overall Case Length Option
Order in increments of 2 mm.
Metric thread configurations:
Maximum length:250 mm
Minimum length:26 mm
Example: 0 6 0 = 60 mm

C: Total Length Option
10 1.0 meter (3.3 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
