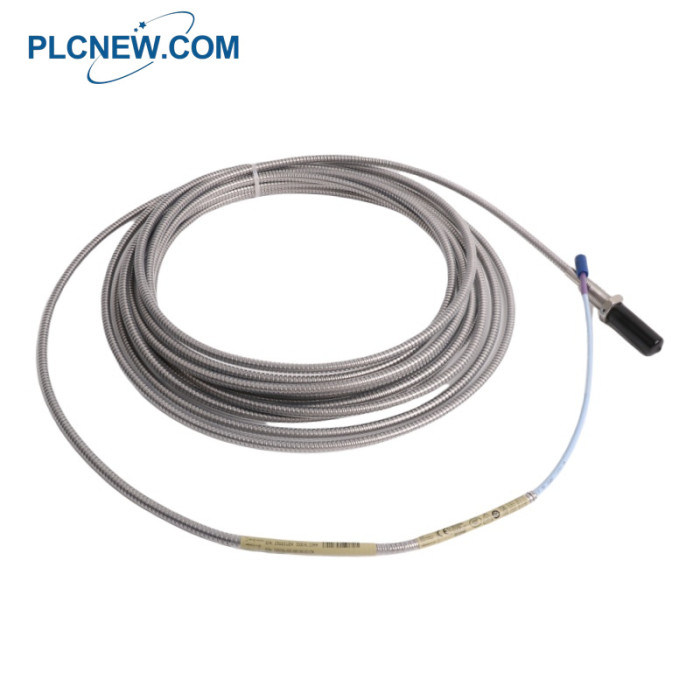

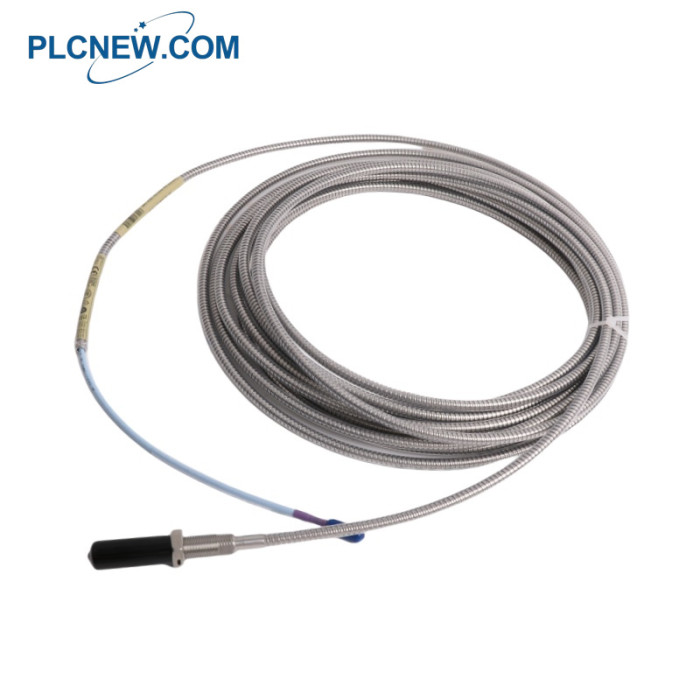

330704-000-100-10-02-00 Bently Nevada 3300 XL 11 mm Proximity Probes

330704-000-100-10-02-00 Bently Nevada 3300 XL 11 mm Proximity Probes

330704-000-100-10-02-00 Bently Nevada Specification

330704    3300 XL 11 mm Probe, M14 x 1.5 thread, with armor
A:Unthreaded Length Option
Order in increments of 2 mm.
Length configuration:
Maximum unthreaded
length: 224 mm
Minimum unthreaded length:
0 mm
Example: 0 6 0 = 60 mm

B: Overall Case Length Option
Order in increments of 2 mm.
Metric thread configurations:
Maximum length:250 mm
Minimum length:26 mm
Example: 0 6 0 = 60 mm

C: Total Length Option
10 1.0 meter (3.3 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)

The 3300 XL 11 mm Proximity Sensor System includes
- 3300 XL 11 mm probe
- 3300 XL 11 mm extension cable
- 3300 XL 11 mm Proximitor® Sensor

330704-000-100-10-02-00 Bently Nevada Description

The 3300 XL 11 mm Proximity Sensor System has a 3.94 V/mm (100 mV/mil)

output for non-contact vibration measurements. 3300 XL 11 mm proximity sensor

system with 3.94 V/mm (100 mV/mil) output for non-contact vibration measurements

on fluid membrane bearing machines for non-contact vibration and displacement measurements.

11 mm large tip allows this sensor system to be longer linear range than our standard 3300 XL 8 mm

sensor system. It is primarily used in the following applications that require a longer linear range

applications with longer ranges:
- Axial (thrust) position measurement
- Differential slope expansion measurement in steam turbines
- Rod position or rod drop measurements in reciprocating compressors
- Tachometer and zero speed measurements
- Phase reference (Keyphasor®) signals


The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200 Series 11 mm and 14 mm

 sensor systems.
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200 Series 11 mm and 14 mm

sensor systems. When upgrading from the 7200 Series
system to the 3300 XL 11 mm system, each component must be replaced with a 3300 XL 11 mm component.
3300 XL 11 mm components. In addition, the monitoring system must be updated.
Update. If using the 3500 Monitoring System, the configuration software version must be updated.
If using the 3500 Monitoring System, the configuration software needs to be updated to include the 3300 XL

 11 mm Sensor System as a compatible option.
The configuration software version needs to be updated to include the 3300 XL 11 mm sensor system as a

compatible option. Existing 3300 monitoring systems may require modification.
Modifications.
