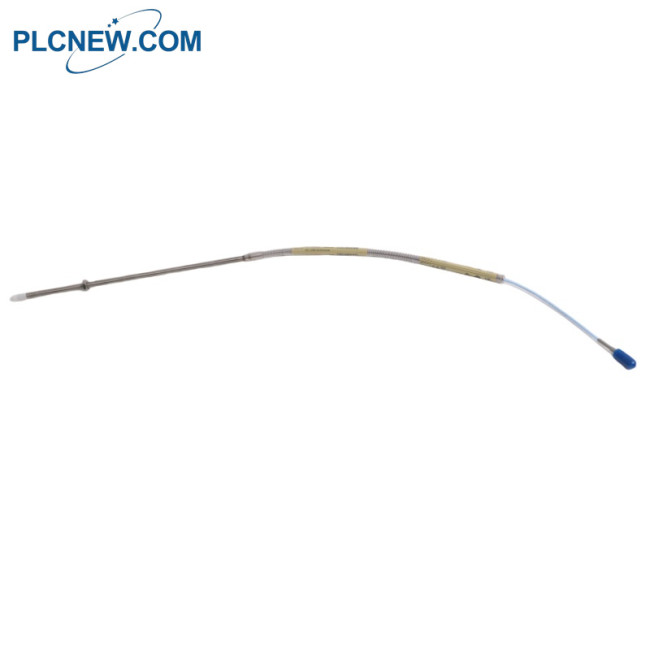

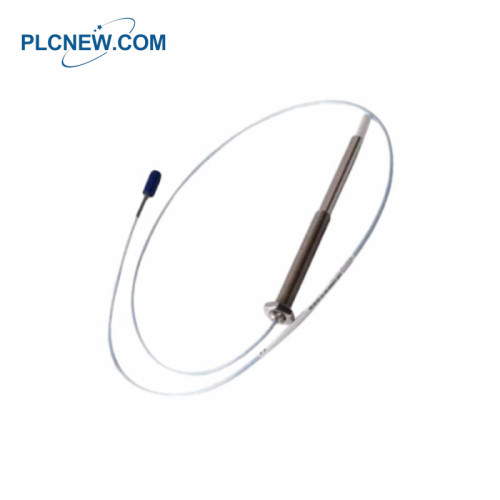

330902-00-40-10-01-05 Bently Nevada 3300 NSv Proximity Probes

330902-00-40-10-01-05 Bently Nevada 3300 NSv Proximity Probes

330902-00-40-10-01-05 Bently Nevada Description

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal

air compressors, refrigeration compressors, process gas compressors, and other

machines with tight installation requirements. The 3300 XL NSv Proximity Transducer

System consists of:
- a 3300 NSv probe
- a 3300 NSv extension cable
- a 3300 XL NSv Proximity Sensor(i)

The primary uses for the 3300 XL NSv Transducer System are for areas where counter

bore, sideview, or rearview restrictions limit the use of standard Bentley Nevada 3300

and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications,

such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on

 flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications

on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
- Radial vibration and radial position measurements
- Axial (thrust) position measurements
- Tachometer and zero speed measurements
- Phase reference (keyphasor signals)

330902-00-40-10-01-05 Bently Nevada Specifications

A: Unthreaded Length Option
Order in increments of 0.1 in
Length configurations:
Maximum unthreaded length: 9.2 in
Minimum unthreaded length: 0.0 in
Example: 04 = 0.4 in

B: Overall Case Length Option
Order in increments of 0.1 in
Threaded length configurations:
Maximum case length: 9.9 in
Minimum case length:  0.8 in
Example: 2 4 = 2.4 in

C: Total Length Option
05 0.5 meter (20 in)
10 1.0 meter (39 in)
50 5.0 meters (16.4 feet)
70 7.0 meters (23.0 feet)
