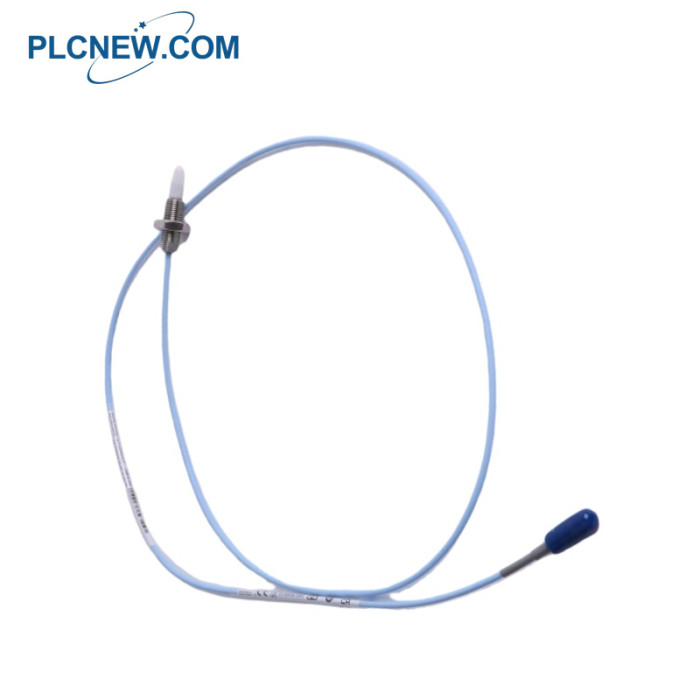

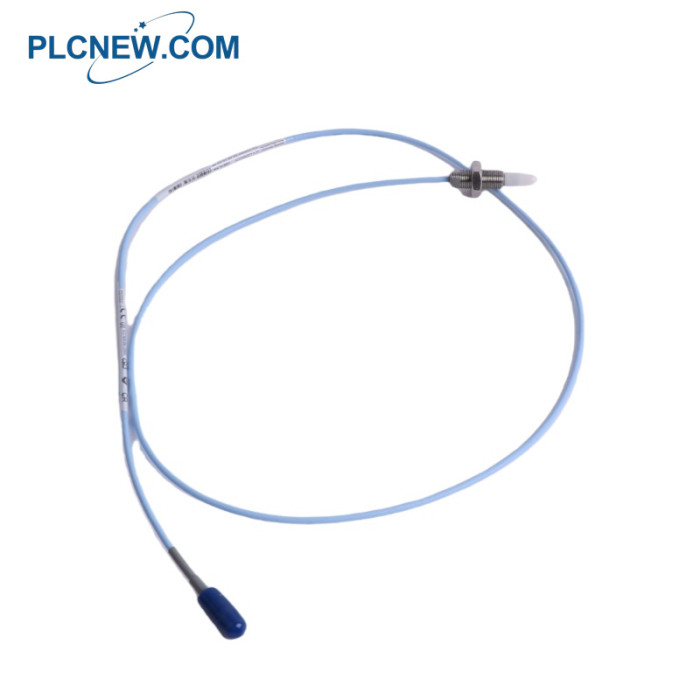

330905-00-05-05-05-02-05 Bently Nevada 3300 NSv Proximity Probes

330905-00-05-05-05-02-05 Bently Nevada 3300 NSv Proximity Probes

330905-00-05-05-05-02-05 Bently Nevada Description

The 3300 XL NSv* Proximity Transducer system is intended for use with
centrifugal air compressors, refrigeration compressors, process gas compressors
and other machines with tight installation requirements. The 3300 XL NSv
Proximity Transducer System consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor* Sensor.1
The primary uses for the 3300 XL NSv Transducer System are for areas where
counter bore, sideview or rearview restrictions limit the use of standard Bently
Nevada* 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for
small target applications, such as measuring radial vibration on shafts smaller
than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It
is primarily used in the following applications on fluid-filmed bearing machines
where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor*) signals

330905-00-05-05-05-02-05 Bently Nevada Specifications

Option Descriptions
A: Unthreaded Length Option
Note: Unthreaded length must be at least 20
mm less than the case length.
Order in increments of 10 mm.
Length configuration:
Maximum unthreaded length: 230
mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm
B: Overall Case Length Option
Order in increments of 10 mm.
Metric thread configurations:
Maximum length: 250 mm
Minimum length: 20 mm
Example: 0 6 = 60 mm
