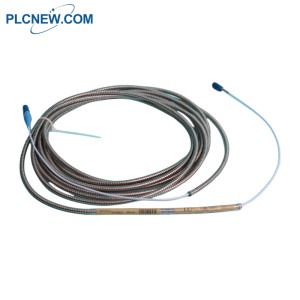

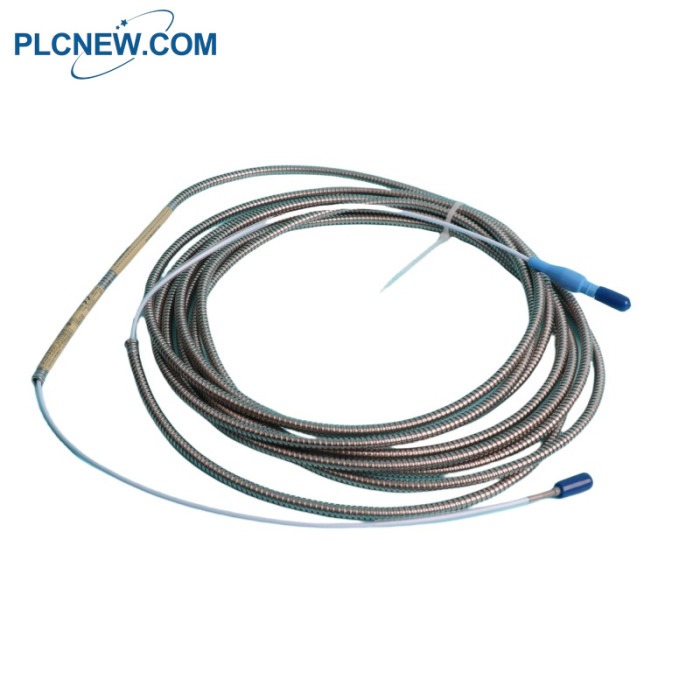

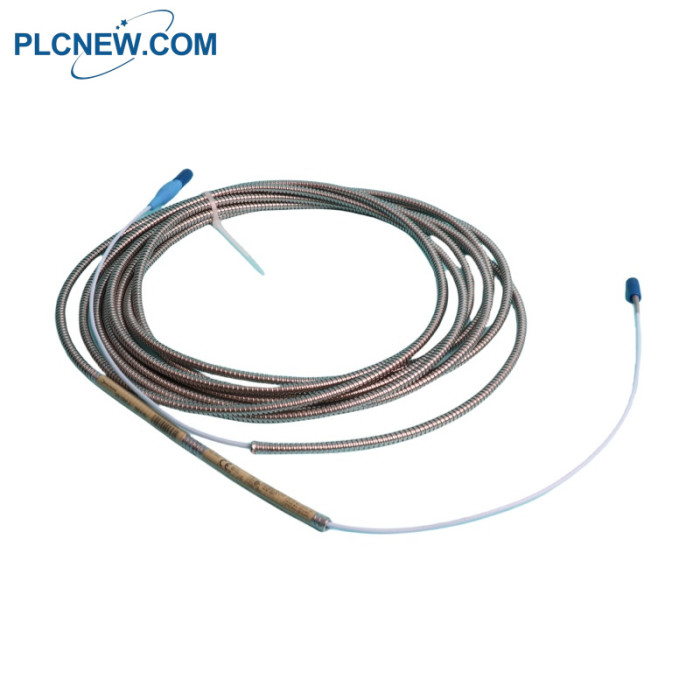

330930-040-05-00 Bently Nevada 3300 NSv Extension Cable

330930-040-05-00 Bently Nevada 3300 NSv Extension Cable

330930-040-05-00 Bently Nevada Specification

A: Cable Length Option
0 4 0 4.0 metres (13.1 feet)
0 4 5 4.5 metres (14.8 feet)
0 6 0 6.0 metres (19.7 feet)
0 6 5 6.5 metres (21.3 feet)
B: Connector and Cable Option
0 0 Without stainless steel
armor
0 1 With stainless steel armor,
with FEP jacket
0 2 With stainless steel armor,
without FEP jacket
0 3 Without stainless steel
armor, with connector
protectors
0 4 With stainless steel armor,
with FEP jacket, with
connector protectors

330930-040-05-00 Bently Nevada Description

The 330930-040-05-CN 3300 XL 25 mm Transducer System consists of a separate 25 mm probe,

an extension cable, and a 3300 XL 25 mm Proximitor Sensor.  The 0.787 V/mm (20 mV/mil) output

gives this system a linear range of 12.7 mm (500 mils).  Based on this linear range, the 3300 XL 25 mm

Transducer System is suitable for measuring differential expansion (DE) on midsize to large steam turbine

generators caused by the difference in growth rates between the turbine rotor and the machine stator (casing).

The Differential Expansion measurement is made by two proximity transducers observing a collar or ramp

some distance from the thrust bearing.  Typical transducer mounting arrangements are:
-Two transducers observing the same side of a collar.
-Two complementary input transducers observing opposite sides of a collar, effectively doubling

the measurable DE range.

Two transducers with at least one transducer viewing a ramp on a rotor and the second transducer viewing

either a separate ramp or a different location on the rotor to compensate for radial movement.

This arrangement adds some error to the measurement, but can measure a longer total DE distance

than the complementary measurement.
