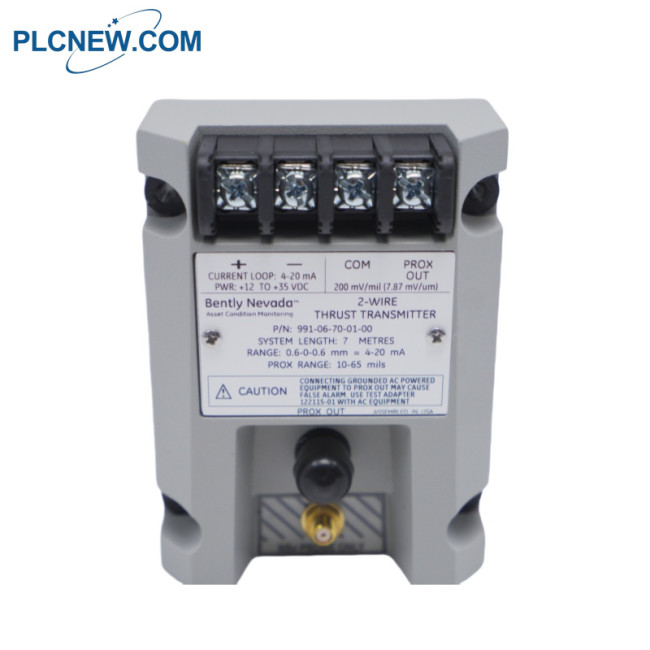

991-25-70-01-05 Bently Nevada Thrust Transmitter

991-25-70-01-05 Bently Nevada Thrust Transmitter

991-25-70-01-05 Bently Nevada Specification

991-AXX-BXX-CXX-DXX
A: Full-scale Option
0 6 0.6 -0- 0.6 mm
2 5 25-0-25 mils

B: System Length Option
5 0 5.0 metres (16.4 feet)
7 0 7.0 metres (23.0 feet)

C: Mounting Option
0 1 35 mm DIN-rail clips
0 2 Bulkhead screws
0 3 DIN clips and screws

D: Agency Approval Option
0 0 Not required
0 1 CSA Division 2
0 5 CSA Division 2, ATEX Zone 0, ATEX Zone 2 and includes ABS maritime approval

991-25-70-01-05 Bently Nevada Description

The 991 Thrust Transmitter is designed primarily for original equipment

manufacturers (OEMs) of centrifugal air compressors, small pumps, motors,

or fans who require a simple 4 to 20 mA proportional axial displacement (thrust)

signal as input to their machinery control system. This 2-wire, loop-powered device

accepts input from the 3300 NSv® proximity probe and its matching extension cable

(available in 5 m and 7 m system length options). The transmitter conditions the signal

 into appropriate engineering units proportional to the shaft’s axial position and provides

it as a 4 to 20 mA industry-standard signal for input to the control system, where machinery

 protection alarming and logic are implemented.

Key Features of the 991 Thrust Transmitter:
Integrated Proximitor® Sensor:
No external sensor unit is required, simplifying installation and reducing components.
Diagnostic Outputs:
Non-isolated “PROX OUT” and “COM” terminals, plus a coaxial connector, provide dynamic

vibration and gap voltage signal output for diagnostics.
Easy Calibration:
Non-interacting zero and span potentiometers (located under the transmitter label) support loop adjustment.
Test Input Pin:
Allows quick verification of the loop signal output using a variable DC voltage source as the input.
Power-up Inhibit Circuit:
Eliminates signal errors caused by line voltage transients.
