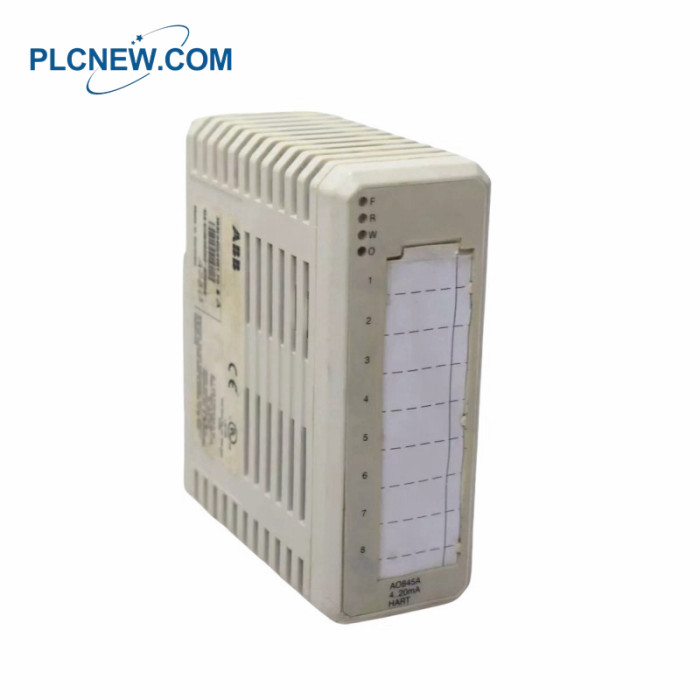

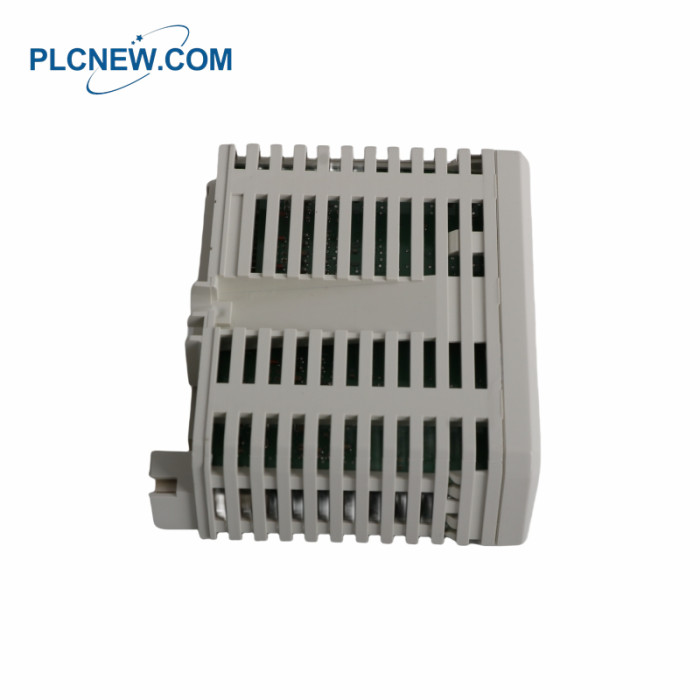

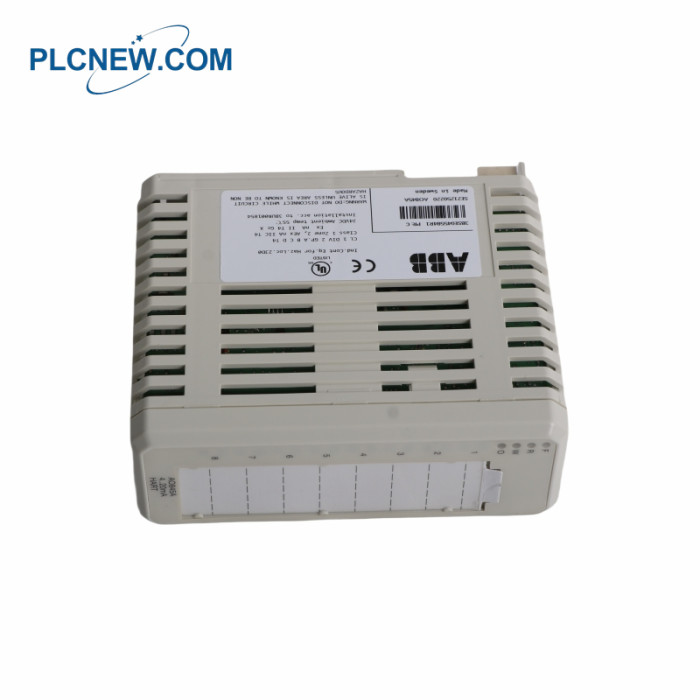

ABB AO845A Analog Output Module

ABB AO845A Analog Output Module

ABB AO845A Specification

Brand:ABB
Model:AO845A
Operating Voltage:220 V
Output Frequency:30 kHz
Certified Product:Yes
Series:AO845A
Resolution: 12 bit
Isolation: Groupwise isolated from ground
Under/Over Range: -12.5% / +15%
Output Load: Max 750 Ω
Error: Max. 0.1%
Temperature Drift: Max. 50 ppm/°C
Rise Time (Output Filter: Disabled): 23 ms
Rise Time (Output Filter: Enabled): Max 4 mA / 12.5 ms
Input Filter (Rise Time 0-90%): 23 ms (0-90%), max 4 mA / 12.5 ms
Update Cycle Time: 10 ms
Current Limiting: Short circuit proof, current limited output
Maximum Field Cable Length: 600 meters (656 yards)
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c.
Power Dissipation: Typ. 3.5 W
Current Consumption (+5V Modulebus): Max. 125 mA
Current Consumption (+24V External): 218 mA

ABB AO845A Description

    Introducing the ABB AO845A Analog Output Module, an essential component

for achieving unparalleled precision in industrial control systems. With its robust

design and high-performance capabilities, this module is engineered to deliver

consistent, reliable performance across a wide range of applications.

    Featuring 8 channels, each capable of handling unipolar single-ended signals, the

AO845A is ideal for applications requiring precise analog output control. Its rated

insulation voltage ensures safe operation even in challenging environments, while the

low power dissipation helps maintain efficiency without compromising on performance.

    Compact yet durable, the AO845A Analog Output Module is built to withstand the

rigors of industrial use. Measuring just 119 mm in height, 45 mm in width, and 102

mm in depth, it seamlessly integrates into existing systems without taking up

excessive space.

    Weighing only 0.23 kg, this lightweight module offers easy installation and

maintenance, allowing for quick setup and hassle-free adjustments. Its design is

optimized for both efficiency and reliability, ensuring that your industrial

operations run smoothly and efficiently.
