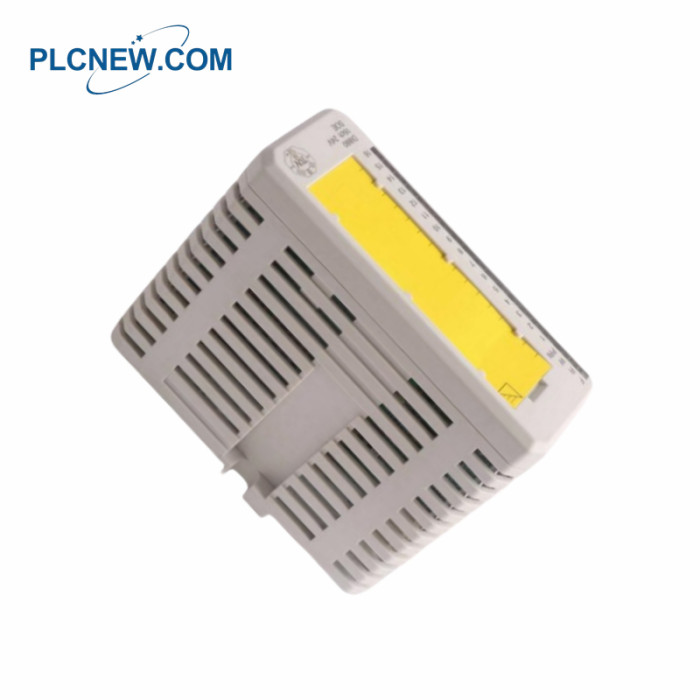

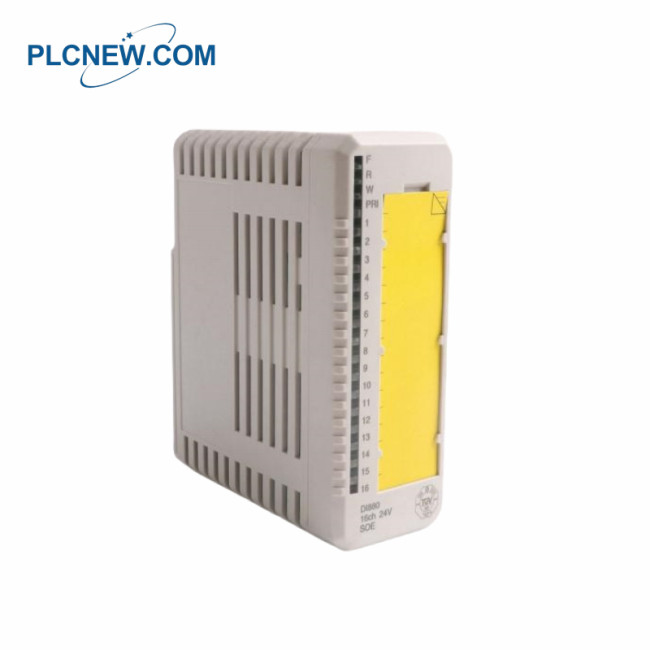

ABB DI880 High Integrity Digital Input

ABB DI880 High Integrity Digital Input

ABB DI880 Specification

Manufacturer:ABB
Product Type:High Integrity Digital Input
Model:DI880
Input Voltage Range ("0"): 0 to 30 V DC ± 5 V
Input Voltage Range ("1"): 11 to 30 V DC
Input Impedance: 3.1 kΩ
Isolation: Groupwise isolated from ground
Filter Times (Digital, Selectable): 0 to 127 ms
Current Limiting: Built-in current limited sensor power
Maximum Field Cable Length: 600 meters (656 yards)
Event Recording Accuracy: -0 ms / +1.3 ms
Event Recording Resolution: 1 ms
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V AC
Power Dissipation: 2.4 W
Current Consumption (+5 V Modulebus): Typ. 125 mA, Max. 150 mA
Current Consumption (+24 V External): 15 mA + sensor power, Max. 527 mA
Width: 45 mm (1.77”)
Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
Height: 119 mm (4.7”)
Weight: 0.15 kg (0.33 lbs.)

ABB DI880 Description

The DI880 is a 16-channel, 24 V DC digital input module designed for both single

and redundant configurations. It supports an input voltage range of 18 to 30 V DC,

with an input current of 7 mA at 24 V DC. Each input channel is equipped with

current-limiting components, EMC protection, an input state indication LED, and

optical isolation barriers.

Additionally, the module features a current-limited transducer power output for each

input channel.

One of its key functions is the Sequence of Event (SOE) feature, which allows for

event collection with a resolution of 1 ms. The event queue can store up to 512 x 16

events. To enhance the accuracy and reliability of event reporting, the SOE function

includes a Shutter filter to suppress unwanted events.
