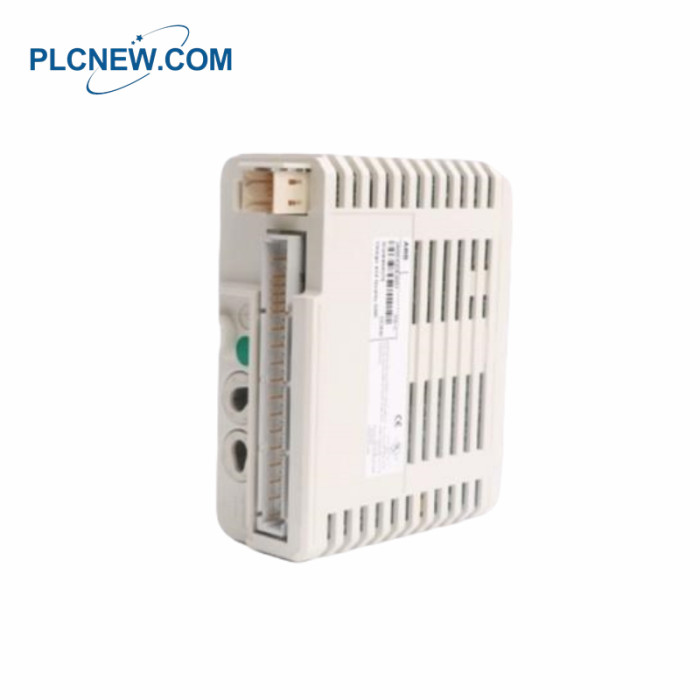

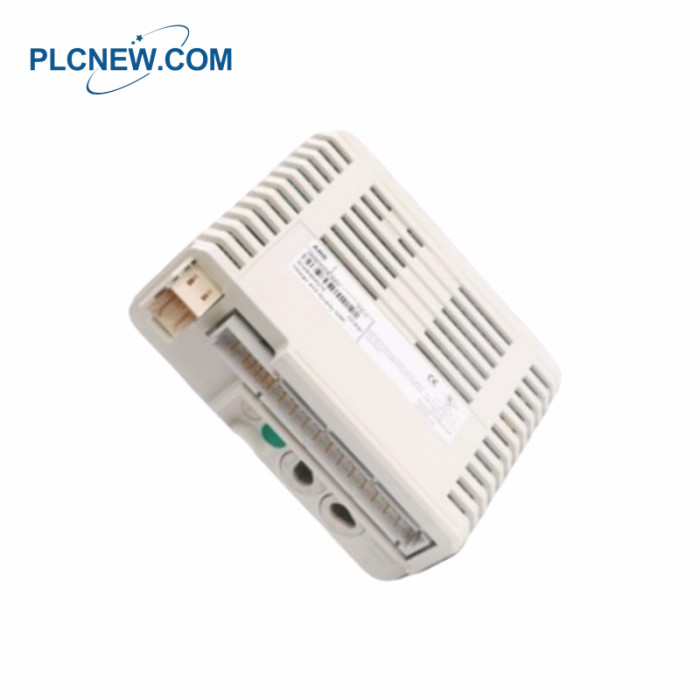

ABB DO840 Digital Output Module

ABB DO840 Digital Output Module

ABB DO840 Specification

Manufacturer:ABB
Model Number:DO840
Module Type:Digital Output
Output Channels:8
Isolation Type:Optical
Max Output Current:5A
Operating Voltage Range:12V to 24V DC
Operating Temperature:-25°C to +85°C
Communication Interface:Modbus
Isolation: Groupwise isolated from ground
Current Limiting: Short circuit proof, current limited output
Maximum Field Cable Length: 600 meters (656 yards)
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c.
Power Dissipation: Typ. 4.3 W
Current Consumption (+5V Modulebus): 130 mA
Current Consumption (+24V Modulebus): 0
Current Consumption (+24V External): 200 mA
Dimensions (WxHxD):40mm x 75mm x 45mm
Weight:0.15kg

ABB DO840 Description

This module features 16 digital outputs, each capable of handling a maximum

continuous output current of 0.5 A. The outputs are designed with current limiting

and over-temperature protection to ensure safe and reliable operation. The 16 outputs

are divided into two isolated groups, each containing eight channels, along with a

voltage supervision input for each group.

Each output channel is equipped with a high-side driver that includes current limiting

and over-temperature protection. Additionally, the outputs are safeguarded with

EMC protection components, inductive load suppression, output state indication

LEDs, and an optical isolation barrier. The module also offers advanced on-board

diagnostics to monitor performance and ensure smooth operation.

Key features include:

16 channels for 24 V DC current-sourcing outputs
2 isolated groups of 8 channels with process voltage supervision
Advanced on-board diagnostics for enhanced system monitoring
Output status indicators for real-time feedback
Output State Protection (OSP) sets outputs to a predetermined state upon error detection
Suitable for both redundant and single applications
Built-in current limiting and over-temperature protection for added reliability
