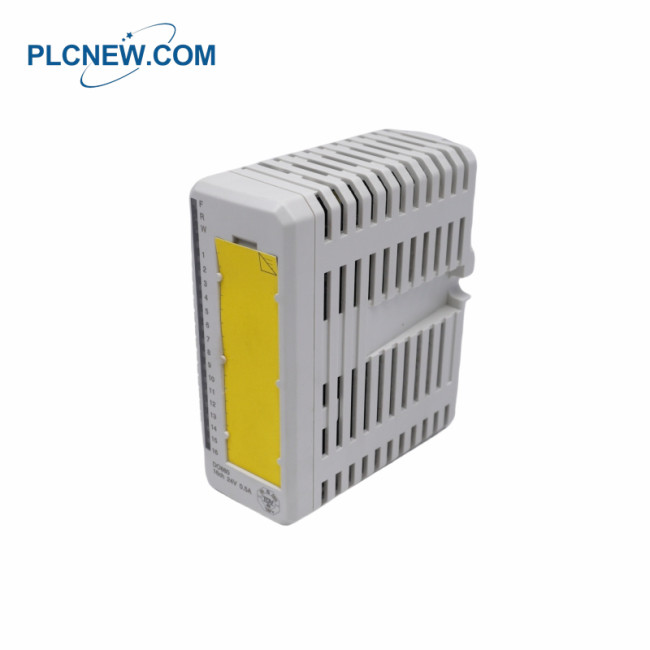

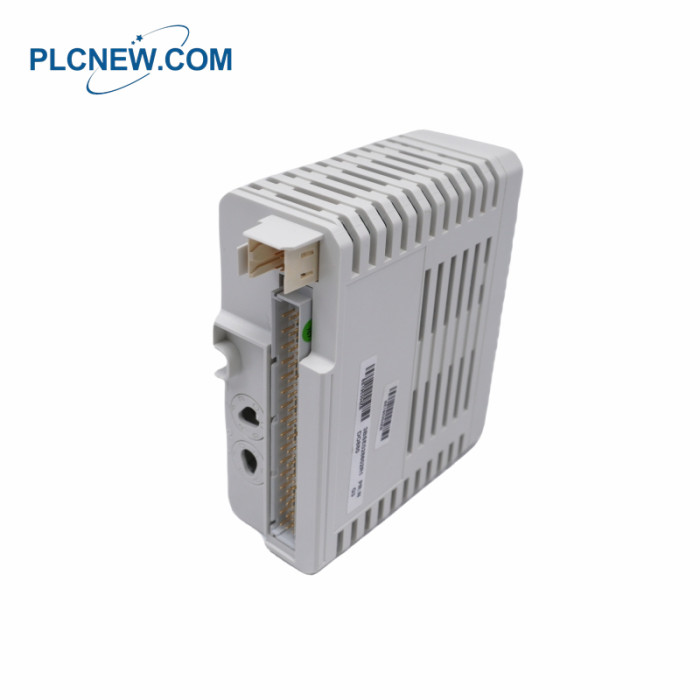

ABB DO880 Digital Output Module

ABB DO880 Digital Output Module

ABB DO880 Specification

Manufacturer:ABB
Product Type:Digital Output Module
Model:DO880
Isolation: Groupwise isolated from ground
Current Limiting: Short circuit proof, current limited output
Maximum Field Cable Length: 600 meters (656 yards)
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c.
Power Dissipation: 5.6 W (0.5 A x 16 channels)
Current Consumption +5 V Modulebus: 45 mA
Current Consumption +24 V Modulebus: Max. 50 mA
Current Consumption +24 V External: 10 mA
Relative Humidity: 5 to 95 %, non-condensing
Protection Class: IP20 according to IEC 60529
Mechanical Operating Conditions: IEC/EN 61131-2
EMC: EN 61000-6-4 and EN 61000-6-2
Overvoltage Categories: IEC/EN 60664-1, EN 50178
Width: 45 mm (1.77”)
Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
Height: 119 mm (4.7”)

Weight: 0.20 kg (0.44 lbs.)

ABB DO880 Description

The DO880 is a 16-channel, 24 V digital output module designed for both single

and redundant applications. Each output channel is capable of delivering a

maximum continuous output current of 0.5 A. The module features

current-limiting protection and is safeguarded against over-temperature conditions,

ensuring reliable and safe operation.

Each output channel is equipped with a current-limited, over-temperature protected

high-side driver, providing robust control for various loads. Additionally, the

module includes EMC protection components to reduce electromagnetic interference,

and inductive load suppression to protect the system when controlling inductive loads,

such as motors or solenoids.

For easy monitoring, each output channel has an output state indication LED, providing

a clear visual indication of the channel's status. Furthermore, the module incorporates

an isolation barrier to the Modulebus, ensuring electrical isolation and enhancing

the system's overall safety and noise immunity.

This combination of features makes the DO880 suitable for demanding applications

where high reliability and protection against faults are critical.
