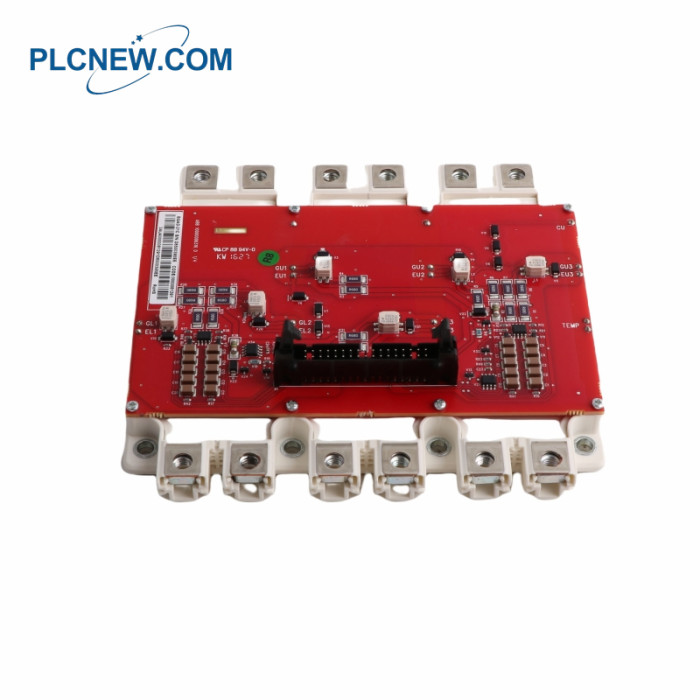

ABB FS500R17OE4D/BGAD-21C Infineon IGBT Module

ABB FS500R17OE4D/BGAD-21C Infineon IGBT Module

ABB FS500R17OE4D/BGAD-21C Specification

Manufacturer:ABB
Model Number:FS500R17OE4D/BGAD-21C
Type:Infineon IGBT Module
Rated Current:500A
Operating Voltage:1700V
Insulation Class:R
Control Interface:Profibus DP
Environmental Temperature Range:-40°C to +125°C
Dimensions:16.5x15.1x4.8cm
Weight:1.02kg

ABB FS500R17OE4D/BGAD-21C Description

    This high-performance FS500R17OE4D/BGAD-21C IGBT module from

ABB and Infineon is engineered for exceptional reliability and efficiency in

demanding industrial environments. It boasts a compact design that facilitates

easy integration into existing systems without compromising on performance.

    Featuring advanced semiconductor technology, the FS500R17OE4D/BGAD-21C

ensures stable and precise current control, making it ideal for power conversion tasks

in machinery, renewable energy systems, and other applications requiring high

power handling.

    With an operating temperature range from -40°C to +175°C, this

FS500R17OE4D/BGAD-21C module is suitable for extreme conditions,

enhancing its versatility across various industries. Its natural convection cooling

system minimizes maintenance requirements, reducing downtime and operational costs.

    Equipped with robust insulation and protection features, including IP20 rating,

this FS500R17OE4D/BGAD-21C IGBT module safeguards against environmental

hazards and ensures user safety. The low di/dt and dv/dt limits further protect

against electromagnetic disturbances, ensuring smooth operation and prolonging the

lifespan of the equipment.

    For optimal performance, the FS500R17OE4D/BGAD-21C module supports

continuous output currents up to 500A and operates within a wide input voltage range

of DC 300V to DC 1500V. Its high switching frequency of up to 25kHz enables fast

response times, contributing to enhanced efficiency and reduced energy consumption.
