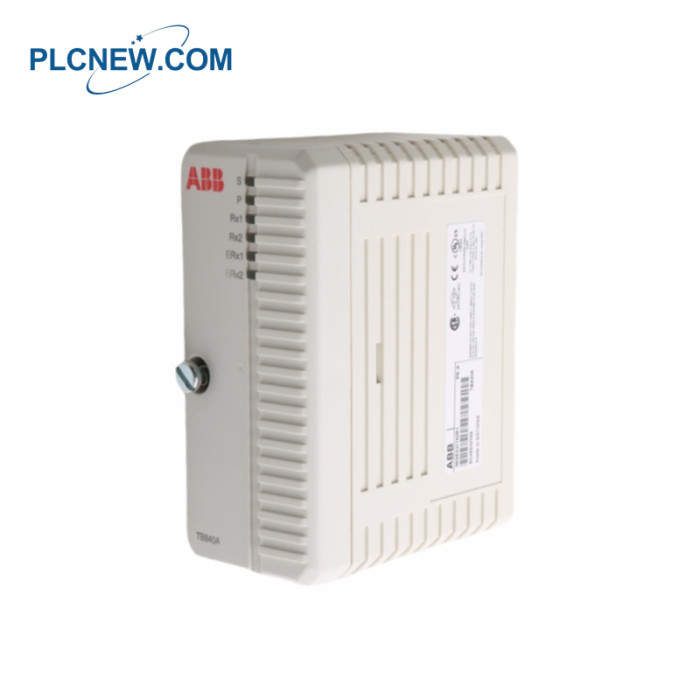

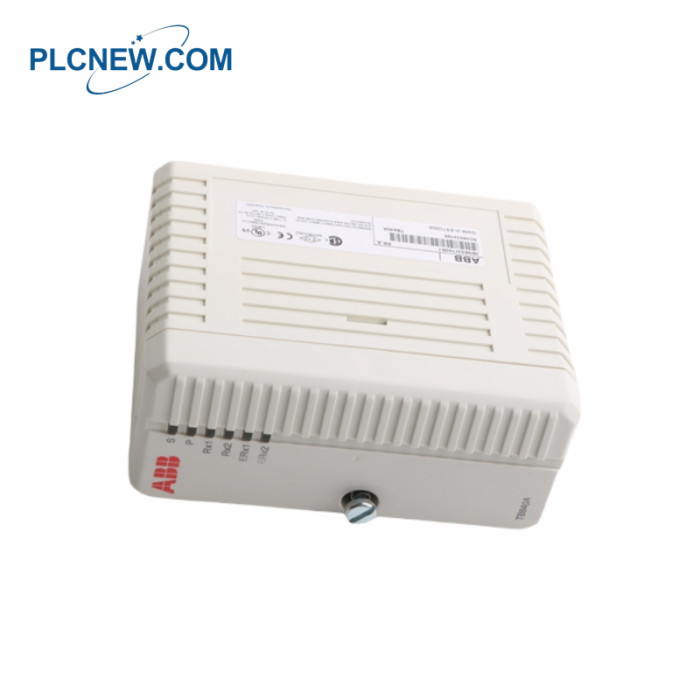

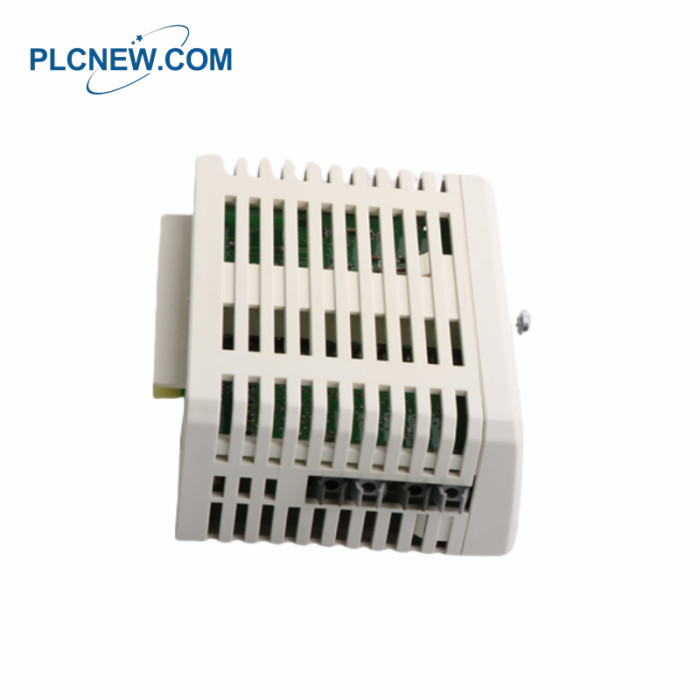

ABB TB840A Modulebus Cluster Modem

ABB TB840A Modulebus Cluster Modem

ABB TB840A Specification

Manufacturer:ABB
Product Type:Modulebus Cluster Modem
Model:TB840A
Operating Temperature: 0 to +55 °C
Storage Temperature: -40 to +70 °C
Pollution Degree: Degree 2, IEC 60664-1
Corrosion Protection: ISA-S71.04: G3
Relative Humidity: 5 to 95 %, non-condensing
Max Ambient Temperature: 55 °C (131 °F), for vertical mounting 40 °C (104 °F)
Protection Class: IP20 according to EN60529, IEC 529
RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE Compliance: DIRECTIVE/2012/19/EU
Width: 54 mm (2.13 in.)
Height: 119 mm (4.69 in.)
Depth: 96 mm (3.78 in.)
Weight: 0.2 kg (0.44 lbs)

ABB TB840A Description

The S800 I/O is a comprehensive, distributed, and modular process I/O system designed

for seamless communication with parent controllers and PLCs via industry-standard

field buses. The TB840 ModuleBus Modem provides a fiber optic interface to the

Optical ModuleBus, enabling reliable and high-speed data transmission.

The TB840A version is specifically used in redundant configurations, where each

module is connected to separate optical ModuleBus lines, while still being connected

to the same electrical ModuleBus. This setup ensures higher reliability and fault tolerance.

The ModuleBus Modem features both electrical and optical ModuleBus interfaces,

which are logically the same bus. The electrical ModuleBus can support a maximum

of 12 I/O modules, while the fiber optic ModuleBus can connect up to seven

clusters, allowing for flexible and scalable system expansion. The fiber optic

interface is ideal for the local distribution of I/O clusters, especially in cases where

more than 12 I/O modules are needed within a single I/O station.

This architecture allows the S800 I/O system to be efficiently configured for

various industrial automation needs, with robust redundancy options and

high-capacity communication for large-scale applications.
