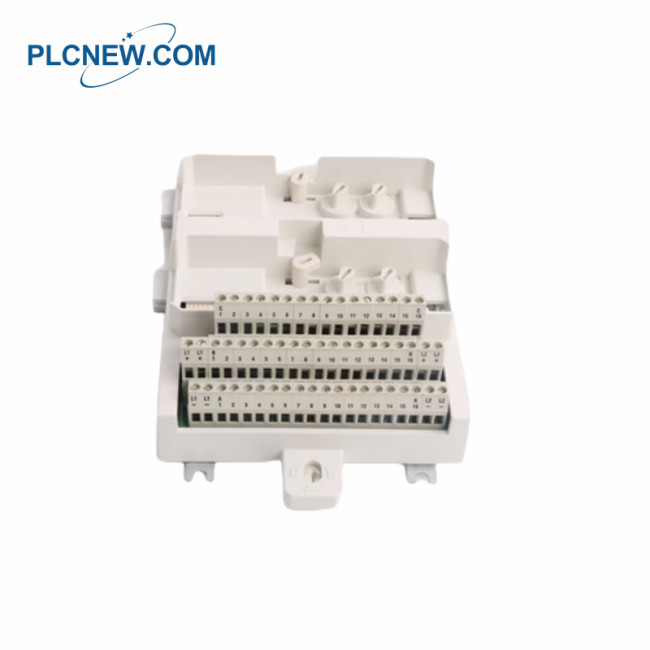

ABB TU843 Module Termination Unit

ABB TU843 Module Termination Unit

ABB TU843 Specification

Brand:ABB
Model:TU843
Type:Digital Input Module
Dimensions (D x H x W):47 x 186 x 124 mm
Weight:0.45 kg
Operating Temperature Range:-20°C to +60°C
Connection Type:Standard I/O
Power Consumption:0.1 W
Channels: 16
Voltage: 50 V
Mounting: Vertical
Mounting Detail: 55 ºC (131 °F)
Use with I/O Modules: AI843, AO845, AO845A, DI840, DI880, DO840, DO880, DP840
Temperature (Storage): -40 to +70 °C (-40 to +158 °F)
Pollution Degree: Degree 2, IEC 60664-1
Corrosion Protection: ISA-S71.04: G3
Relative Humidity: 5 to 95 %, non-condensing
Max Ambient Temperature: 55 °C (131 °F)
Protection Class: IP20 according to IEC 60529
Mechanical Operating Conditions: IEC/EN 61131-2
EMC: EN 61000-6-4, EN 61000-6-2
Overvoltage Categories: IEC/EN 60664-1, EN 50178
Equipment Class: Class I according to IEC 61140 (earth protected)
RoHS Compliance: EN 50581:2012
WEEE Compliance: DIRECTIVE/2012/19/EU

ABB TU843 Description

The TU843 MTU is designed to support up to 16 I/O channels and 2+2 process

voltage connections. Each channel features two I/O connections and one ZP connection.

The module is rated for a maximum voltage of 50 V and a maximum current of 3

A per channel.

The MTU efficiently distributes the two ModuleBuses—one to each I/O module

and to the subsequent MTU. It also generates the correct address for the I/O modules

by shifting the outgoing position signals to the next MTU.

Mounting the MTU is straightforward, as it is designed to fit on a standard DIN rail.

It features a mechanical latch that securely locks the MTU to the rail.

For configuration, the MTU uses four mechanical keys (two for each module),

allowing it to be configured for different types of I/O modules. This configuration is

purely mechanical and does not impact the functionality of either the MTU or the

I/O module. Each key offers six positions, providing a total of 36 possible configurations

for flexibility in module setup.
