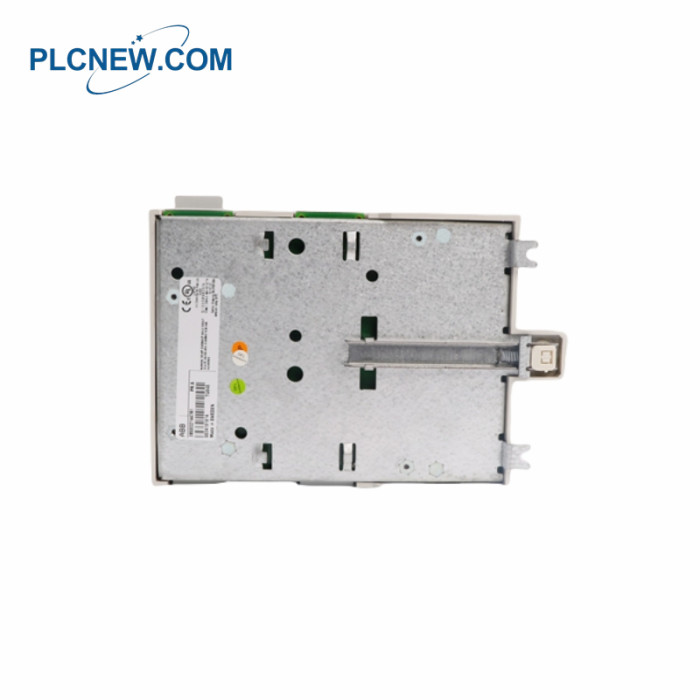

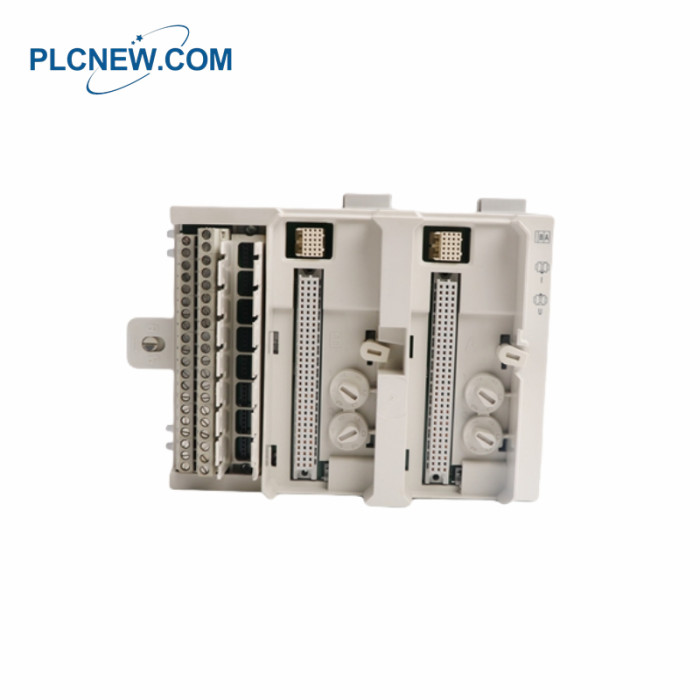

ABB TU845 Module Termination Unit

ABB TU845 Module Termination Unit

ABB TU845 Specification

Manufacturer:ABB
Product Type:Termination Unit
Model:TU845
Dimension (D x H x W): 65 x 175 x 58 mm
Weight:0.2 kg
Operating Voltage:220 V AC
Operating Frequency:50 kHz
Channels: 8
Voltage: 50 V
Mounting: Vertical
Mounting Detail: 55 ºC (131 °F)
Use with I/O Modules: AI845, AI880, AI880A, DP840
Maximum current per I/O channel :2 A
Maximum current process connection :5 A
Corrosion Protection: ISA-S71.04: G3
Relative Humidity: 5 to 95 %, non-condensing
Max Ambient Temperature: 55 °C (131 °F)
Protection Class: IP20 according to IEC 60529
Mechanical Operating Conditions: IEC/EN 61131-2
EMC: EN 61000-6-4, EN 61000-6-2
Overvoltage Categories: IEC/EN 60664-1, EN 50178

ABB TU845 Description

The TU845 MTU supports up to 8 I/O channels and 2+2 process voltage connections.

Each channel consists of two I/O connections and one ZP connection. Input signals

are connected through individual shunt sticks, TY801, which allow selection

between voltage and current input. The maximum rated voltage is 50 V, and the

maximum rated current is 2 A per channel.

The MTU efficiently distributes two ModuleBuses—one to each I/O module and

to the subsequent MTU. It also generates the correct address for the I/O modules by

shifting the outgoing position signals to the next MTU.

For mounting, the MTU features a mechanical latch that locks it securely to the

DIN rail. Configuration is facilitated by four mechanical keys (two for each I/O

module), enabling the MTU to be set up for various I/O module types. This

configuration is purely mechanical and does not affect the functionality of either

the MTU or the I/O module. Each key offers six positions, resulting in 36

possible configurations for flexibility in module setup.
