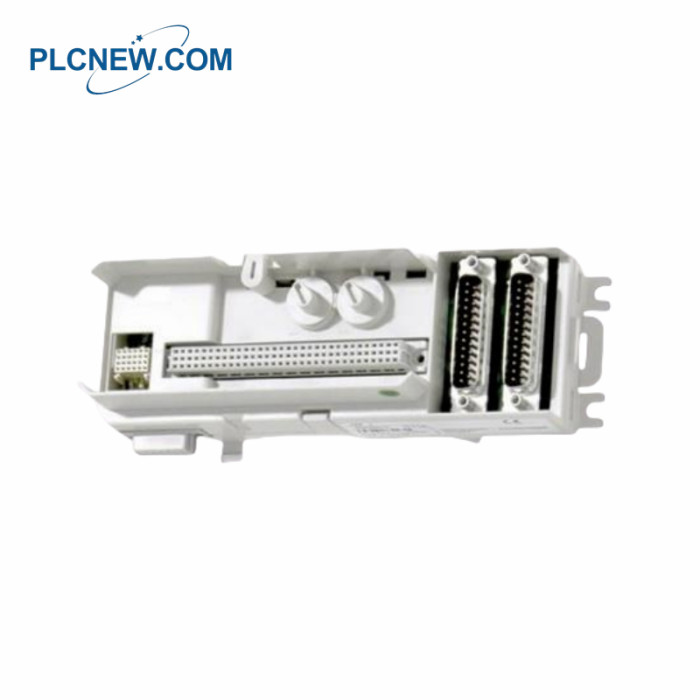

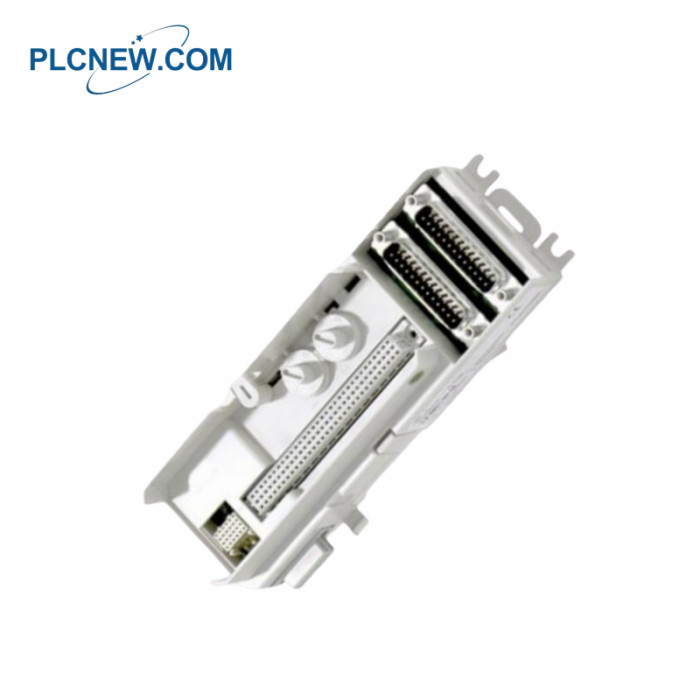

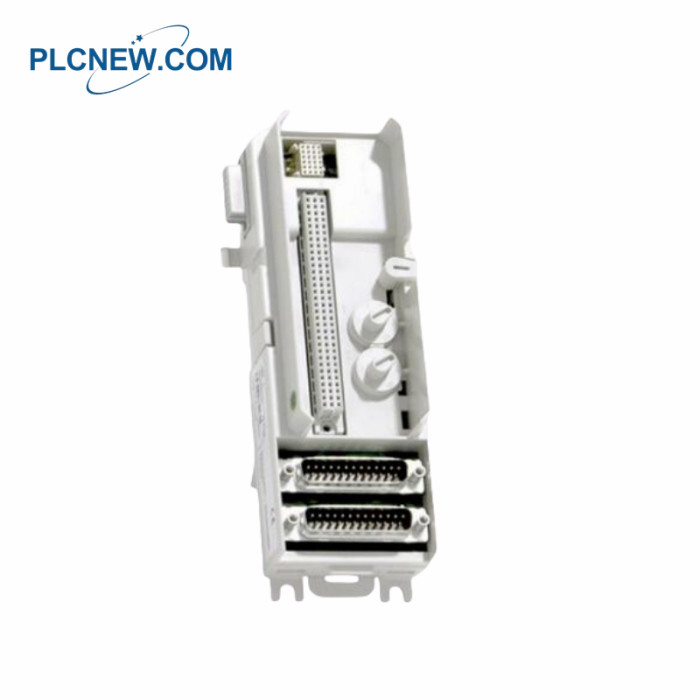

ABB TU848 Termination Unit

ABB TU848 Termination Unit

ABB TU848 Specification

Manufacturer:ABB
Product Type:Termination Unit
Model:TU848
ModuleBus Current Distribution: Maximum 5 V: 1.5 A, 24 V: 1.5 A
Mechanical Keys: 36 different combinations
Solid: 0.2 - 2.5 mm²
Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
Recommended Torque: 0.5 Nm
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c.
Operating Temperature: 0 to +55 °C
Storage Temperature: -40 to +70 °C
Relative Humidity: 5 to 95 %, non-condensing
Max Ambient Temperature: 55 °C (131 °F), for vertical mounting 40 °C (104 °F)
Equipment Class: Class I according to IEC 60536 (earth protected)
Ingress Protection: IP20 according to IEC 60529
RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
Width: 124 mm (4.88 in.)
Height: 186.5 mm (7.34 in.) including latch
Depth: 47 mm (1.85 in.)
Weight: 0.45 kg (0.99 lbs.)

ABB TU848 Description

The TU848 is a Module Termination Unit (MTU) designed for the redundant

configuration of the Optical ModuleBus Modem TB840/TB840A. This passive

unit facilitates the integration of two modems, offering connections for double

power supplies (one for each modem), double electrical ModuleBus, and

two TB840/TB840A modems. It also features a rotary switch that allows users

to set the cluster address (ranging from 1 to 7).

The MTU is equipped with two mechanical keys for configuration purposes. Each

key has six positions, providing a total of 36 possible configurations, which can be

adjusted with a screwdriver for easy reconfiguration.

The TU848 unit provides individual power supply connections and is used to connect

the TB840/TB840A modems to redundant I/O systems. In contrast, the TU849 version

of the termination unit offers individual power supply connections but is used to connect

the TB840/TB840A modems to non-redundant I/O.

This flexibility makes the TU848 and TU849 ideal for configurations requiring

either redundant or non-redundant I/O connections while ensuring reliable operation

and ease of setup.
