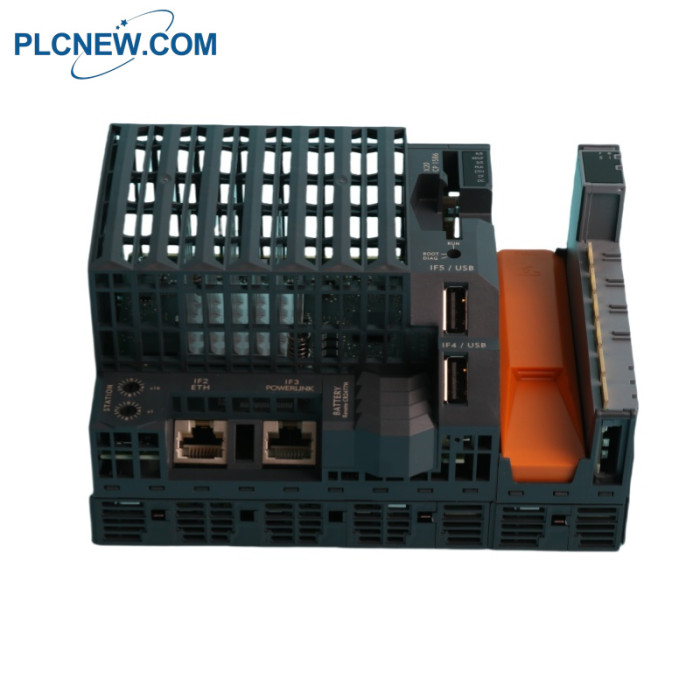

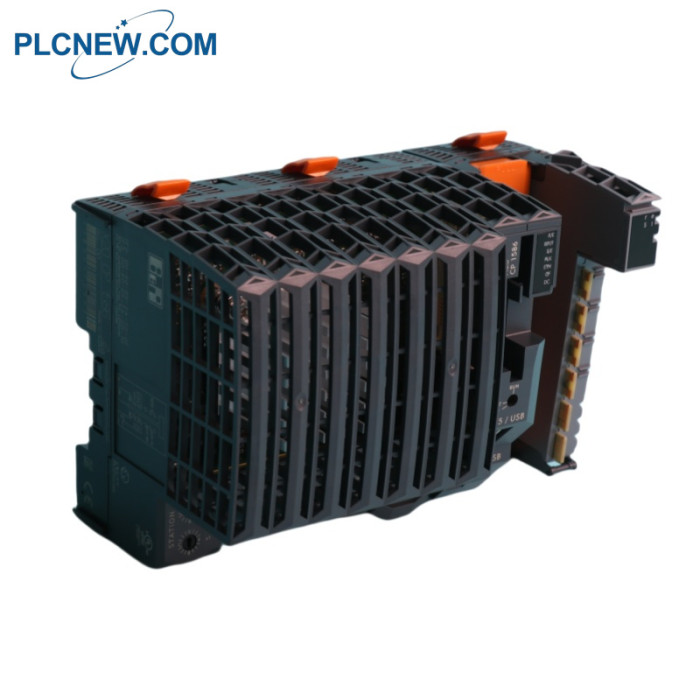

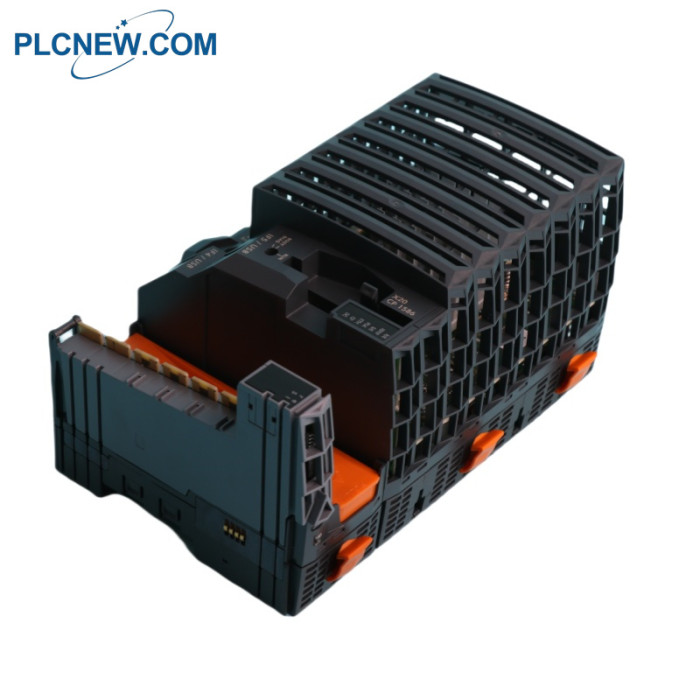

B&R X20CP1586 CPU MODULE

B&R X20CP1586 CPU MODULE

B&R X20CP1586 Specification

Short description
Interfaces：1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link
System module：Controller

General information
B&R ID code：0xC3B0
Cooling：Fanless
Status indicators：CPU function, Ethernet, POWERLINK, CompactFlash, battery

Diagnostics
Battery：Yes, using LED status indicator and software
CPU function：Yes, using LED status indicator
CompactFlash：Yes, using LED status indicator
Ethernet Yes, using LED status indicator
POWERLINK：Yes, using LED status indicator
Temperature：Yes, using software register

B&R X20CP1586 Description

Intel Atom 1.6 GHz processor with an additional I/O processor
Onboard Ethernet, POWERLINK with poll response chaining and USB
1 slot for modular interface expansion
CompactFlash as removable application memory
512 MB DDR2 SDRAM
Fanless
The X20CP1586 is a powerful controller for the X20 system. This controller is

especially useful for applications that require short cycle times, have to process

very large amounts of data or carry out floating point operations. It is clocked at 1.6

GHz and equipped with 512 MB DDR2 SDRAM.

USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard

features. The standard Ethernet interface is capable of handling communication in the

gigabit range. For even more real-time network performance, the onboard POWERLINK

interface supports poll response chaining mode (PRC).

The controller is equipped with one slot available for X20 communication modules. Various

bus and network systems can easily be integrated into the X20 system through the use of

communication modules.
