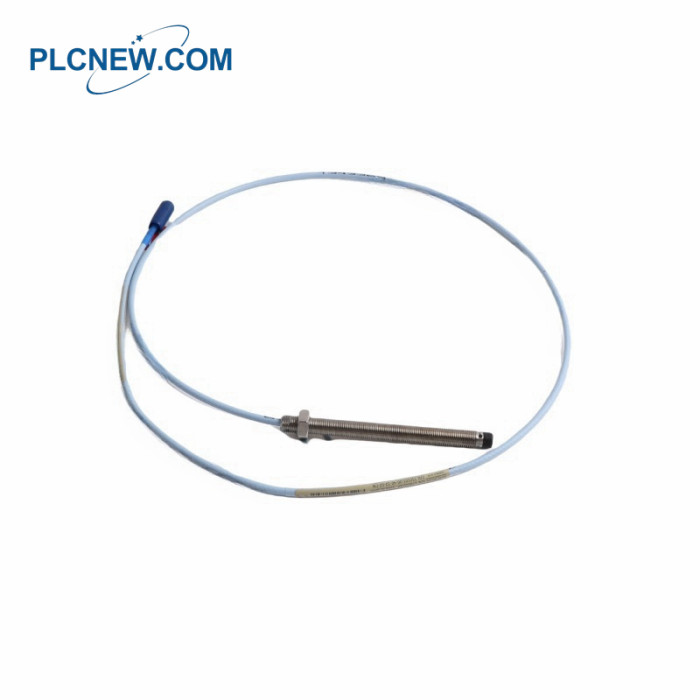

BENTLY NEVADA 330101-00-10-10-02-cn Sensor system
BENTLY NEVADA 330101-00-10-10-02-cn Specification
|
Brand |
BENTLY NEVADA |
|
Type |
Sensor system |
|
Model Number |
330101-00-10-10-02-cn |
|
Total System (Typical) |
0.7 kg (1.5 lbm) |
|
Probe |
323 g/m (11.4 oz/m) |
|
Extension Cable |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor |
246 g (8.67 oz) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
Standard Cable |
-52°C to +177°C (-62°F to +350°F) |
|
Extended Temperature Range Cable |
-52°C to +260°C (-62°F to +500°F) |
|
Cable Type |
75惟 triaxial, perfluoroalkoxy (PFA) insulated |
|
Minimum Cable Bend Radius |
25.4 mm (1.0 in) |
|
Minimum Bend Radius |
50.8 mm (2 in) |
|
Recommended Bend Radius |
76.2 mm (3 in) |
|
Dimensions |
113x2x1.5cm |
|
Weight |
0.08kg |
BENTLY NEVADA 330101-00-10-10-02-cn Description
The system provides an output voltage that is directly proportional to the distance
between the probe tip and the observed conductive surface, allowing it to measure both
static (position) and dynamic (vibration) values. Its primary applications include
vibration and position monitoring on fluid-film bearing machines, as well as
Keyphasor reference and speed measurements.
The 3300 XL 8 mm system offers advanced performance within Bently Nevada’s
eddy current proximity transducer lineup. The standard 3300 XL 8 mm 5-meter
system fully meets the American Petroleum Institute's (API) 670 Standard,
ensuring compliance in terms of mechanical configuration, linear range, accuracy,
and temperature stability. All 3300 XL 8 mm proximity transducer systems deliver
this high level of performance and ensure the complete interchangeability of
probes, extension cables, and Proximitor sensors. This eliminates the need for
individual component matching or bench calibration.
Additionally, each 3300 XL 8 mm Transducer System component is backward
compatible with earlier non-XL 3300 series 5 mm and 8 mm systems, allowing
seamless integration. This compatibility extends to the 3300 5 mm probe, ideal
for applications where an 8 mm probe may be too large for the available mounting
space.
