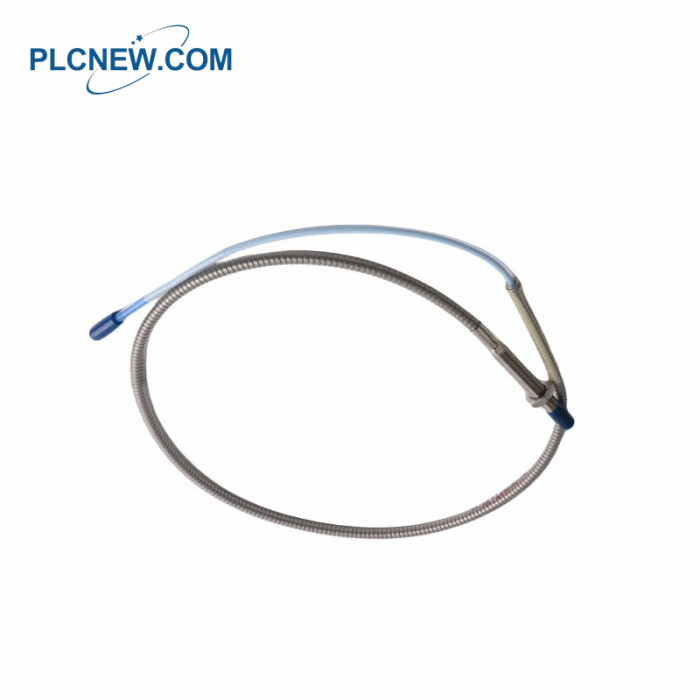

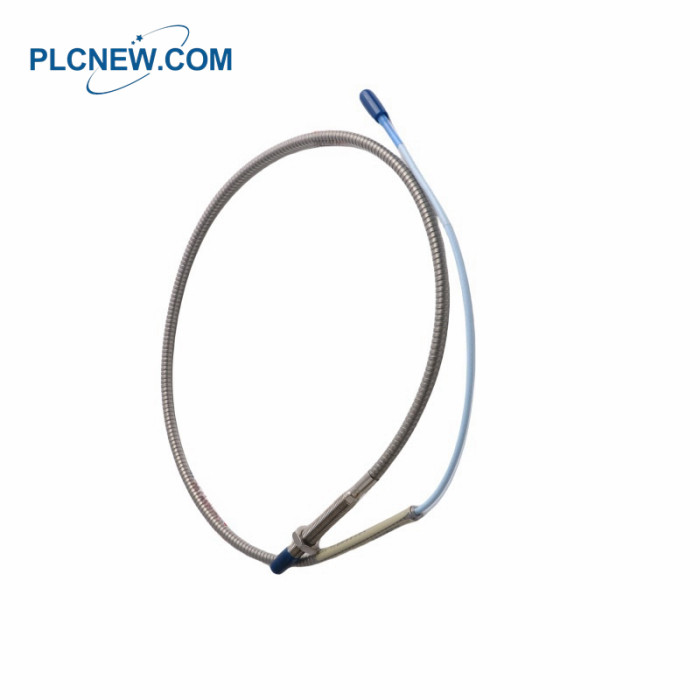

BENTLY NEVADA 330104-00-06-20-01-00 3300 XL 8 mm Proximity Probes
BENTLY NEVADA 330104-00-06-20-01-00 Specification
|
Brand |
BENTLY NEVADA |
|
Model |
330104-00-06-20-01-00 |
|
Type |
3300 XL 8 mm Proximity Probes |
|
Frequency Response |
0 to 10 kHz, +0, -3 dB |
|
Field Wiring |
Up to 305 meters (1000 feet) |
|
Minimum Target Size |
15.2 mm (0.6 in) diameter (flat target) |
|
Minimum Distance |
50.8 mm (2 in) |
|
Recommended Minimum Distance |
76.2 mm (3 in) |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Proximitor Sensor Material |
A308 aluminum |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor Weight |
246 g (8.67 oz) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
Dimensions |
113x2x1.5cm |
|
Weight |
0.14kg |
BENTLY NEVADA 330104-00-06-20-01-00 Description
The 3300 XL Proximitor Sensor introduces several enhancements over previous models.
Its compact design is suitable for high-density DIN-rail installations, and it can also
be mounted in a traditional panel mount configuration, maintaining the same
4-hole mounting footprint as older Proximitor Sensor models. The mounting base
for both installation types provides electrical isolation, eliminating the need for
separate isolator plates.
The sensor boasts high immunity to radio frequency interference (RFI), enabling
installation in fiberglass housings without issues caused by nearby radio signals.
This enhanced RFI/EMI immunity allows the 3300 XL to meet European CE mark
approvals without the need for special shielded conduit or metallic enclosures, which
reduces installation costs and complexity.
The 3300 XL also features SpringLoc terminal strips that do not require special tools
for installation, making field wiring faster and more reliable by eliminating
screw-type clamping mechanisms that can loosen over time. Additionally, the probe
and extension cable have been upgraded, with a patented TipLoc molding
method strengthening the bond between the probe tip and the body. The cable is
designed with CableLoc technology, providing a pull strength of 330 N (75 lbf) to
securely attach the probe cable to the probe tip.
