BENTLY NEVADA 330850-90-05 3300 XL Proximity Sensor

BENTLY NEVADA 330850-90-05 3300 XL Proximity Sensor

BENTLY NEVADA 330850-90-05 Specification

Manufacturer:BENTLY NEVADA
Model:330850-90-05
Product Type:3300 XL Proximity Sensor
Frequency Range: 10 Hz to 1 kHz
Measurement Range: +/- 50 g
Accuracy: +/- 0.1 g
Operating Temperature: -20°C to +80°C
Power Supply: 24 VDC
Communication Protocol: Modbus RTU
Output: 4-20 mA
Short bracket horizontal: ±25.4 mm (±1.0 in)
Long bracket horizontal: ±76.2 mm (±3.0 in)
Probe adapter vertical adjustment: 25.4 mm (1.00 in) total travel
System Length: 5 or 9 metres (including extension cable)

BENTLY NEVADA 330850-90-05 Description

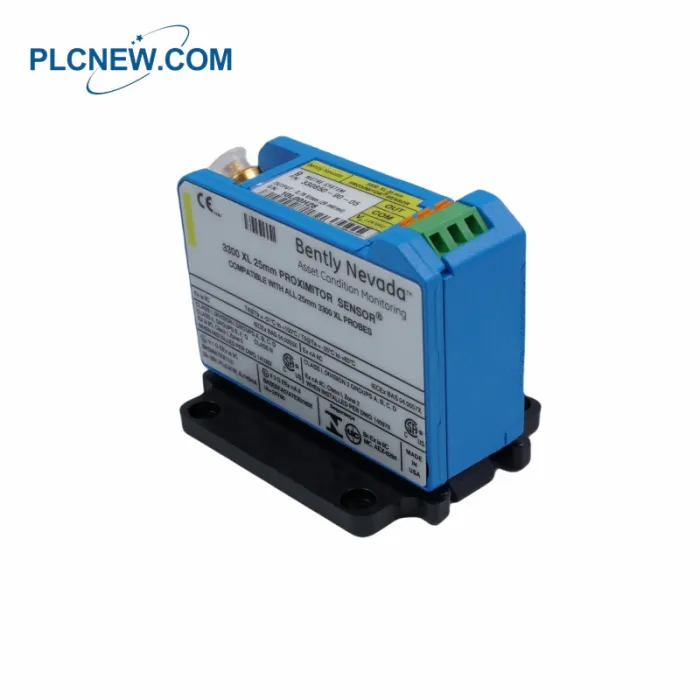

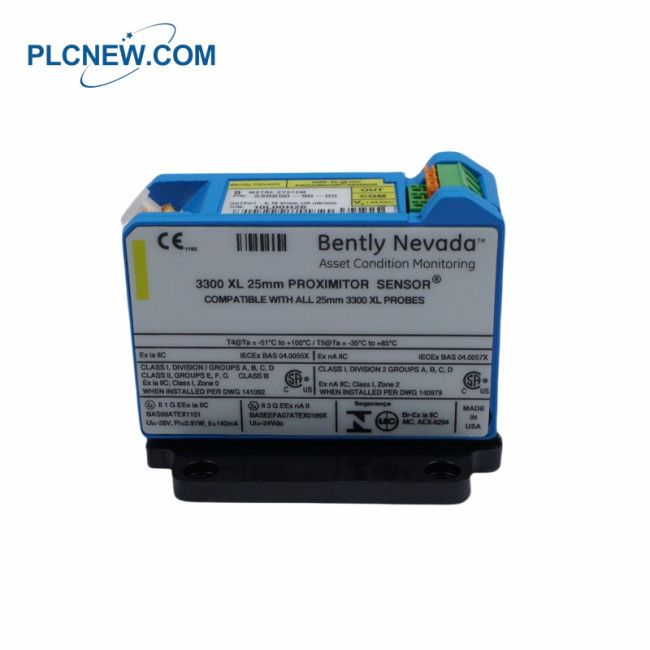

The 3300 XL 25 mm Proximitor Sensor features advanced capabilities similar to

previous 3300 XL models. Its compact design enables mounting in high-density

DIN-rail installations or traditional panel mount configurations. Enhanced

RFI/EMI immunity ensures the sensor meets European CE mark standards without

requiring special mounting considerations. This immunity also safeguards the system

from interference by nearby high-frequency radio signals. Additionally, the

Proximitor Sensor is equipped with SpringLoc terminal strips, which require no

special installation tools, enabling quicker and more reliable field wiring connections.

The 3300 XL 25 mm probe is available in various case configurations, designed

to replace all standard 7200 25 mm, 7200 35 mm, and 25 mm DE Integral

transducer systems, including side and rear exit probes. The Proximitor Sensor

provides an output identical to that of the 7200 and 25 mm DE Integral systems,

enabling customers to upgrade without needing to change the monitor configuration.

When upgrading from older systems, all components of the transducer system—

probe, extension cable, and Proximitor Sensor—must be replaced with 3300 XL

25 mm components.
