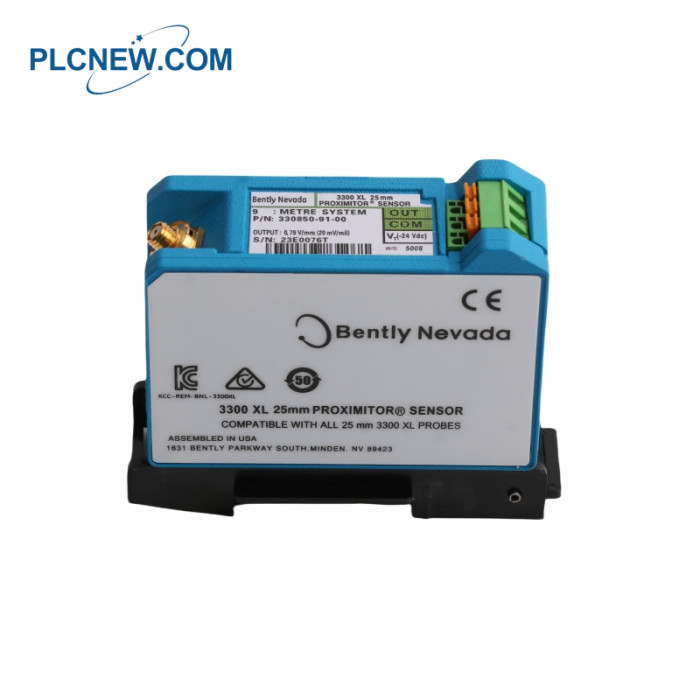

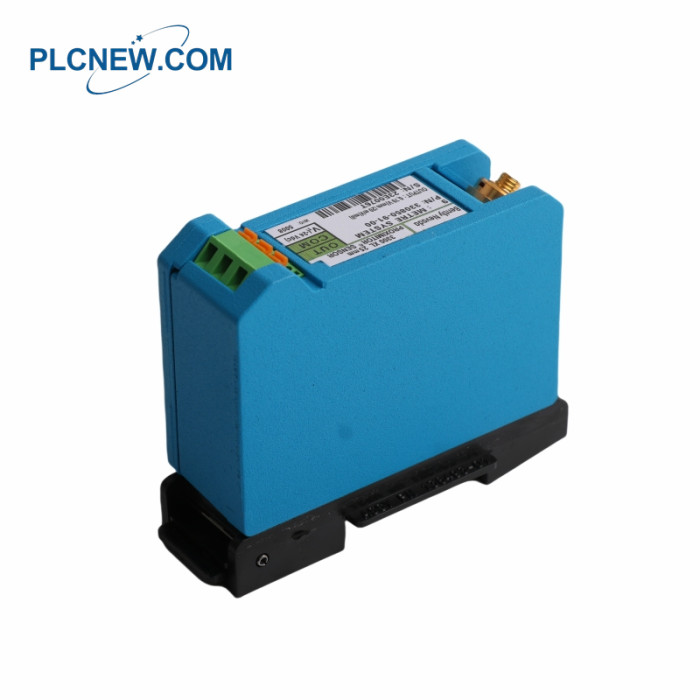

BENTLY NEVADA 330850-91-00 3300 XL Proximity Sensor

BENTLY NEVADA 330850-91-00 3300 XL Proximity Sensor

BENTLY NEVADA 330850-91-00 Specification

Manufacturer:BENTLY NEVADA
Model:330850-91-00
Product Type:3300 XL Proximity Sensor
Short Bracket Horizontal: ±25.4 mm (±1.0 in)
Long Bracket Horizontal: ±76.2 mm (±3.0 in)
Probe Adapter Vertical Adjustment: 25.4 mm (1.00 in) total travel
System Length: 5 or 9 metres including extension cable
Probe and Extension Cable Armor (optional): Flexible AISI 302 SST with PFA outer jacket
Operating and Storage Temperature: -35°C to +200°C (-31°F to +392°F)
Short Term Operating and Storage Temperature: +250°C (482°F) max for less than 24 hours
Operating Temperature: -51°C to +100°C (-60°F to +212°F)
Storage Temperature: -51°C to +105°C (-60°F to +221°F)
Probe Tip Material: Polyetheretherketone (PEEK)
Probe Case Material: AISI 304 stainless steel (SST)
Dimensions:8.6x3.5x7cm
Weight:0.22kg

BENTLY NEVADA 330850-91-00 Description

The 3300 XL 25 mm probe is engineered for exceptional durability in demanding

steam turbine differential expansion (DE) environments. It delivers reliable performance

and maintains accuracy in high-temperature conditions, with continuous operation up to

200 °C (392 °F) and intermittent exposure to temperatures as high as 250 °C (482 °F).

The probe is equipped with both front and rear seals, along with a FluidLoc cable,

which is standard on all 25 mm probes, to protect against moisture ingress at the

probe tip. High-temperature ClickLoc connectors, also standard, ensure secure

connections, while connector protectors and a disposable installation tool keep

connectors free from contamination.

The ClickLoc connector on the probe lead features a removable collar, facilitating

easier cable routing through confined spaces. The 3300 XL 25 mm probe is offered

in various probe case styles, including options with 1¼-12 or 1½-12 English threads,

M30x2 or M39x1.5 metric threads, and side or rear exit configurations with smooth

probe cases available in 1.06 or 1.50-inch diameters. Additionally, threaded probe

cases come with a locknut and pre-drilled holes for safety wire installation.
