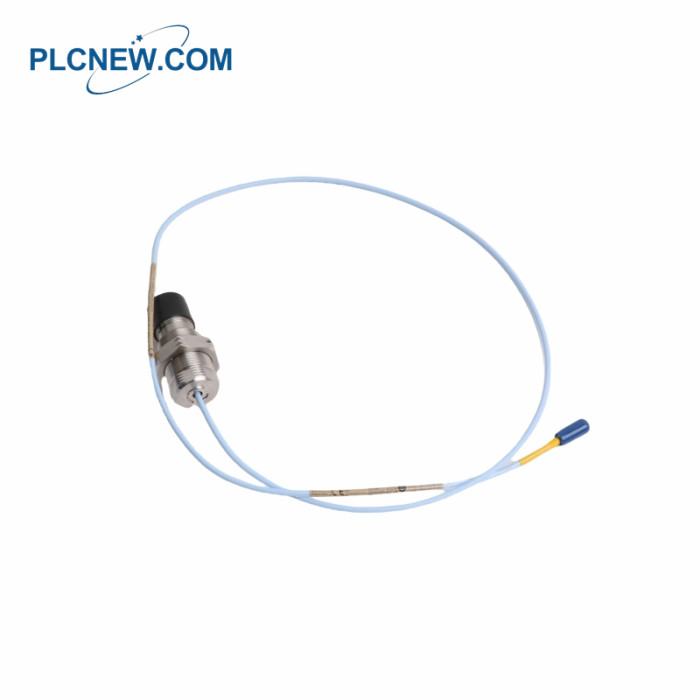

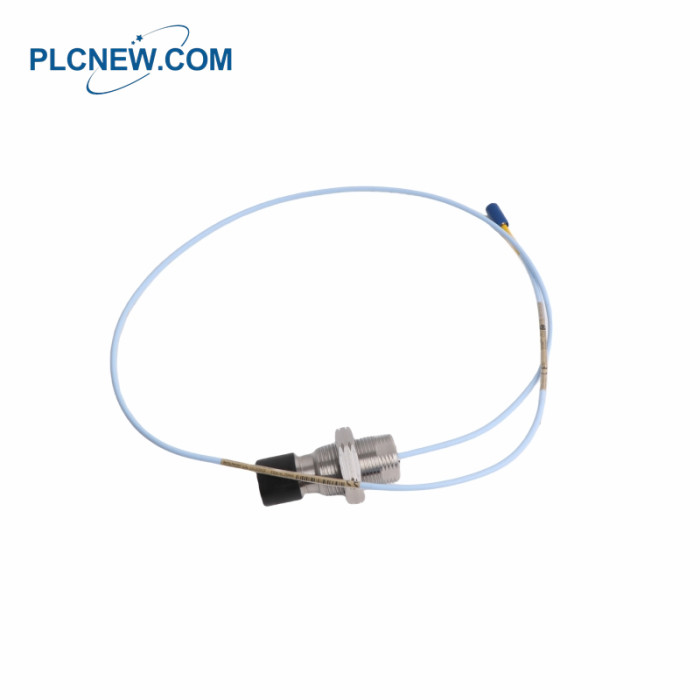

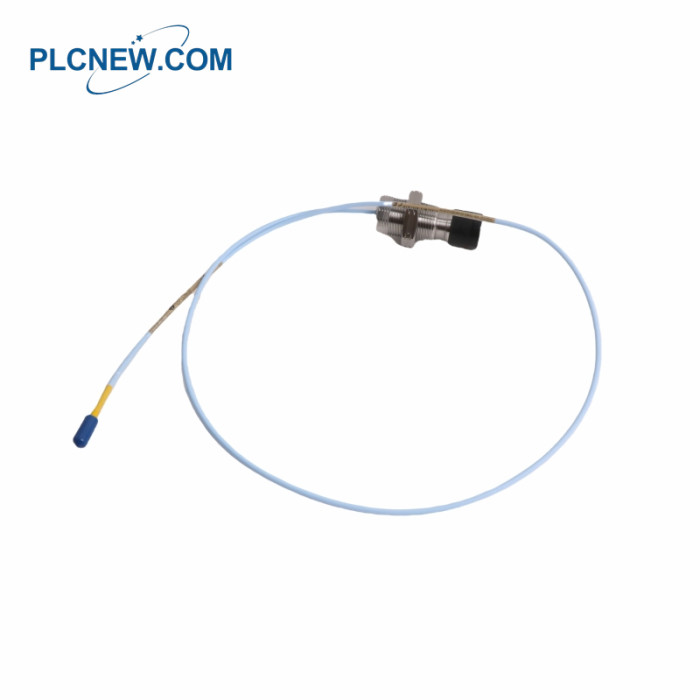

BENTLY NEVADA 330851-02-000-050-10-01-05 Proximity Probe

BENTLY NEVADA 330851-02-000-050-10-01-05 Proximity Probe

BENTLY NEVADA 330851-02-000-050-10-01-05 Specification

Brand: BENTLY NEVADA
Part number: 330851-02-000-050-10-01-05
Original from: USA
Description: 3300 XL 25 mm Proximity Probe
Probe Case Type Option :02 = M30x2 Thread
Unthreaded Length Option : 000 = 0 in
Overall Case Length Option :050 =50 mm
Total Length Option:10=1.0 metre (3.3 feet)
rmor option:01=with armor
Agency Approval Option :05= Having multiple institutional approvals
Linear range: 12.7 millimeters (500 mils).
Output sensitivity: 0.787 V/mm (20 mV/mil).
Frequency response: 0 to 2.7 kHz, typical value, field wiring up to 305 meters (1000 feet) in length
Recommended minimum target size: A flat target with a diameter of61 milimeters (2.4 inches).
Dimensions:119x4x4.6cm
Weight:0.36kg

BENTLY NEVADA 330851-02-000-050-10-01-05 Description

The 3300 XL 25 mm Transducer System is composed of three components: a 25 mm

probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor. This system

provides an output of 0.787 V/mm (20 mV/mil), resulting in a linear measurement

range of 12.7 mm (500 mils).

With this linear range, the 3300 XL 25 mm Transducer System is ideal for

monitoring differential expansion (DE) in midsize to large steam turbine generators.

It measures the difference in growth rates between the turbine rotor and the machine

stator (casing).

The 3300 XL 25 mm Proximitor Sensor offers the same advanced features as its

predecessors in the 3300 XL series. Its slim design supports versatile installation

options, including high-density DIN-rail configurations or traditional panel mounting.

Enhanced RFI/EMI immunity enables the sensor to meet European CE mark

requirements without requiring special mounting considerations. This improved

immunity also protects the transducer system from interference caused by nearby

high-frequency radio signals. Additionally, the Proximitor Sensor is equipped with

terminal strips, which eliminate the need for special tools and ensure faster, more

reliable field wiring connections.
