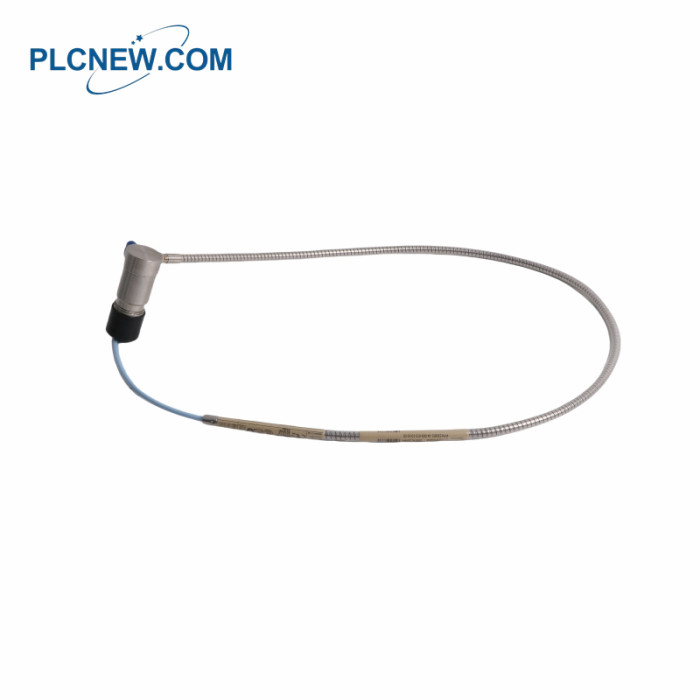

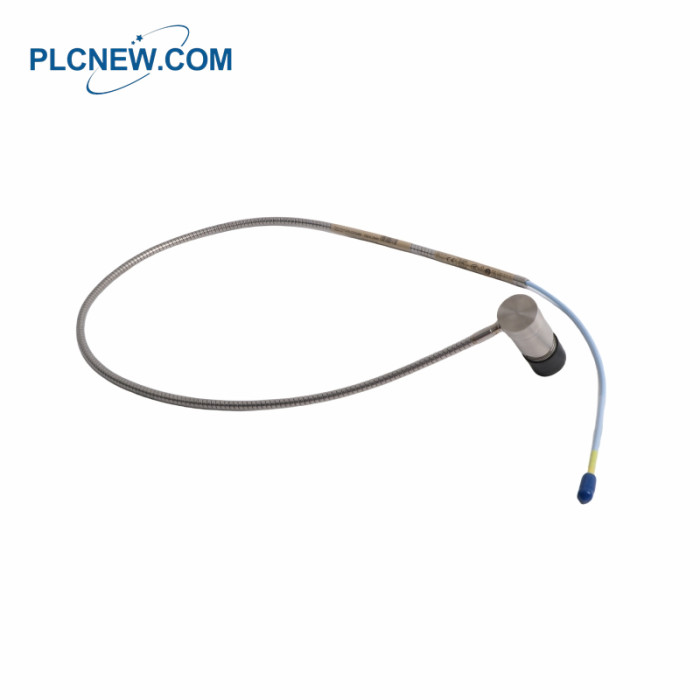

BENTLY NEVADA 330851-04-000-015-10-01-05 Proximity Transducer

BENTLY NEVADA 330851-04-000-015-10-01-05 Proximity Transducer

BENTLY NEVADA 330851-04-000-015-10-01-05 Specification

Manufacturer:BENTLY NEVADA
Model:330851-04-000-015-10-01-05
Product Type:Proximity Transducer
Short Bracket Horizontal: ±25.4 mm (±1.0 in)
Long Bracket Horizontal: ±76.2 mm (±3.0 in)
Probe Adapter Vertical Adjustment: 25.4 mm (1.00 in) total travel
System Length: 5 or 9 metres including extension cable
Probe and Extension Cable Armor: Flexible AISI 302 SST with PFA outer jacket
Extension Cable Weight: 45 g/m (0.5 oz/ft)
Armored Extension Cable Weight: 140 g/m (1.5 oz/ft)
Proximitor Sensor Weight: 255 g (9 oz)
Recommended Torque: Finger tight
Maximum Torque: 0.565 N•m (5 in•lb)
Minimum Bend Radius (with or without SST armor): 25.4 mm (1.0 in)
Dimensions:2.8x2.8x115cm
Weight:0.34kg

BENTLY NEVADA 330851-04-000-015-10-01-05 Description

The 3300 XL 25 mm Transducer System consists of three key components:

the 25 mm probe, an extension cable, and the 3300 XL 25 mm Proximitor Sensor.

It offers a linear range of 12.7 mm (500 mils), with an output of 0.787 V/mm

(20 mV/mil), making it ideal for applications such as measuring differential

expansion (DE) in midsize to large steam turbine generators. This system measures

the difference in growth rates between the turbine rotor and the machine stator

(casing), ensuring accurate monitoring in critical machinery applications.

In comparison to other systems, the 3300 XL offers a reliable, linear output for

precise differential expansion measurement and is designed to withstand the rigors

of industrial environments, offering robust performance in steam turbine

applications.
