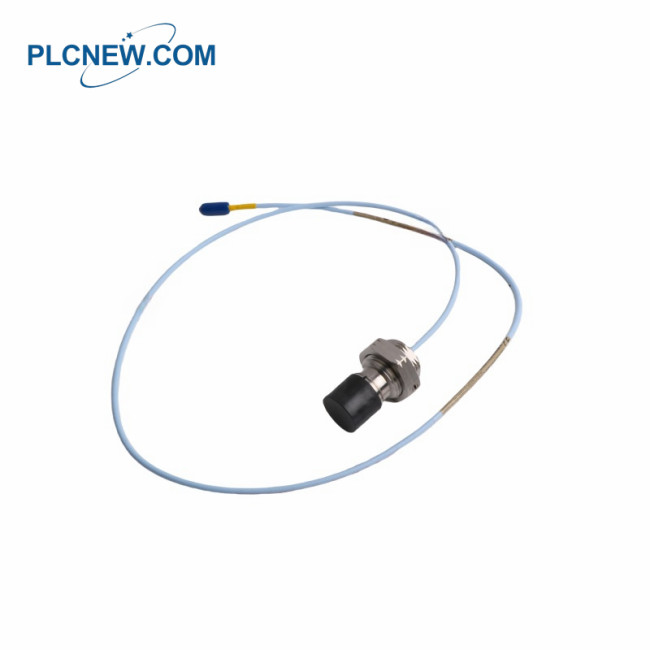

BENTLY NEVADA 330851-08-000-064-10-01-05 Proximity Probes

BENTLY NEVADA 330851-08-000-064-10-01-05 Proximity Probes

BENTLY NEVADA 330851-08-000-064-10-01-05 Specification

Manufacturer:BENTLY NEVADA
Model:330851-08-000-064-10-01-05
Product Type:Proximity Probes
Extension Cable: 45 g/m (0.5 oz/ft)
Armored Extension Cable: 140 g/m (1.5 oz/ft)
Proximitor Sensor: 255 g (9 oz)
Sliding Bracket Short (with one probe adapter): 580 g (20.5 oz)
Operating Temperature: -51°C to +100°C (-60°F to +212°F)
Storage Temperature: -51°C to +105°C (-60°F to +221°F)
Maximum Unthreaded Length: 250 mm (8.9 in)
Minimum Unthreaded Length: 26 mm (0.0 in)

BENTLY NEVADA 330851-08-000-064-10-01-05 Description

The 3300 XL 25 mm Transducer System includes a 25 mm probe, an extension cable,

and a 3300 XL 25 mm Proximitor Sensor. With a 0.787 V/mm (20 mV/mil) output,

the system offers a linear range of 12.7 mm (500 mils). This system is ideal for

measuring differential expansion (DE) in mid-size to large steam turbine generators,

which occurs due to the difference in expansion rates between the turbine rotor and

the machine stator (casing).

The 3300 XL 25 mm probe is available in various case configurations, allowing it to

replace all standard 7200 25 mm, 7200 35 mm, and 25 mm DE Integral transducer

systems, including side and rear exit probes. The Proximitor Sensor has an output identical

to that of the 7200 and 25 mm DE Integral systems, enabling customers to upgrade

without needing to modify the monitor configuration. When upgrading from older

systems, all components of the transducer system—probe, extension cable, and

Proximitor Sensor—must be replaced with 3300 XL 25 mm components.
