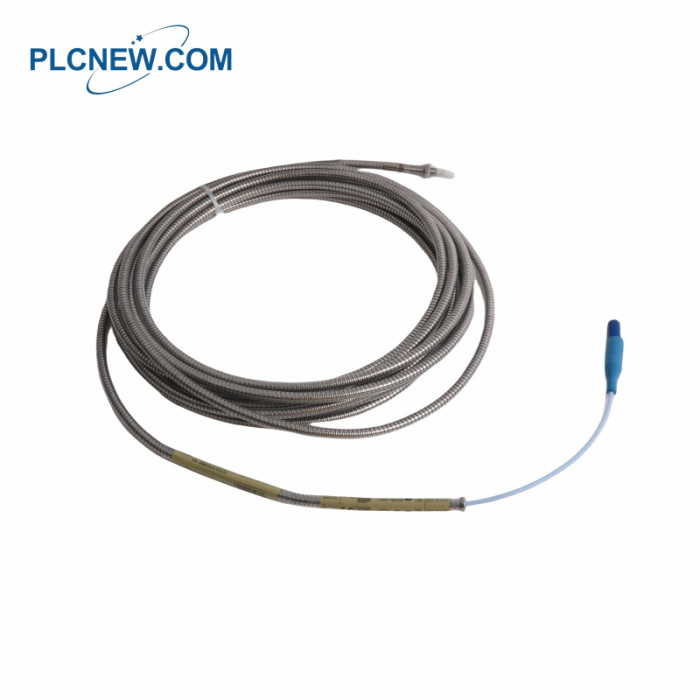

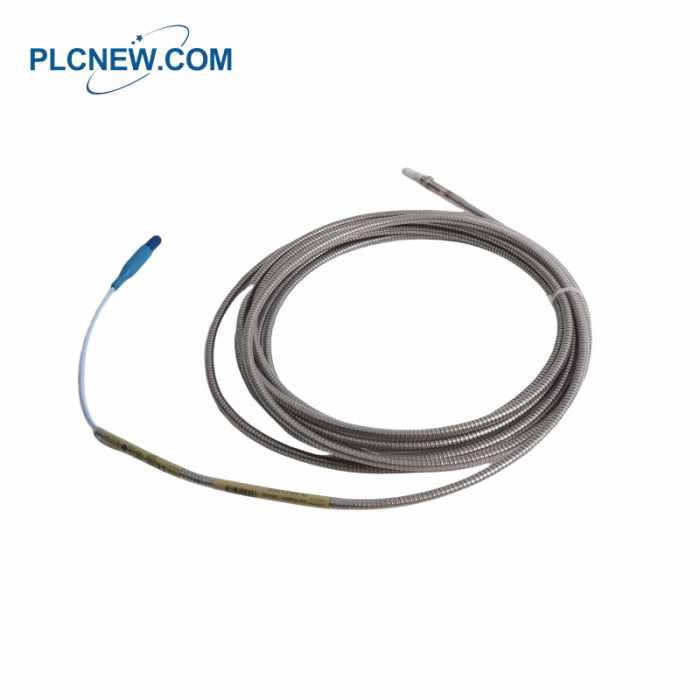

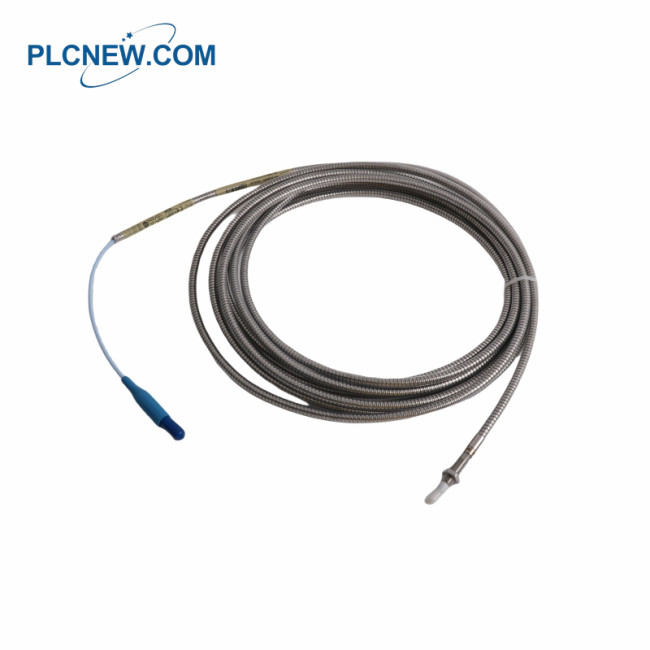

BENTLY NEVADA 330904-08-15-10-02-05 Proximity Probes

BENTLY NEVADA 330904-08-15-10-02-05 Proximity Probes

BENTLY NEVADA 330904-08-15-10-02-05 Specification

Manufacturer:BENTLY NEVADA
Product Type:Proximity Probes
Model:330904-08-15-10-02-05
Proximitor:Sensor Material A380 aluminum
Connector:material Gold-plated brass
Recommended:torque Finger tight
Maximum torque :0.56 N•m (5 in•lb)
Center conductor: 0.220 Ω/m (0.067 Ω/ft)
Shield: 0.066 Ω/m (0.020 Ω/ft)
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
Probe: Approximately 14 to 150 g (0.5 to 5.3 oz)
Extension Cable: 45 g/m (0.5 oz/ft)
Armored Extension Cable: 64 g/m (0.7 oz/ft)
Proximitor Sensor: 255 g (9 oz)
Recommended Gap Setting: 1.0 mm (40 mils)

BENTLY NEVADA 330904-08-15-10-02-05 Description

The 3300 XL NSv Proximity Transducer System is designed for use in machines with

tight installation requirements, such as centrifugal air compressors,

refrigeration compressors, process gas compressors, and other similar equipment.

This system includes the following components:

A 3300 NSv probe
A 3300 NSv extension cable
A 3300 XL NSv Proximitor Sensor
The system is ideal for applications where counter bore, sideview, or rearview

restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and

8 mm Transducer Systems. It is especially suitable for small target applications,

such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial

position on flat targets smaller than 15 mm (0.6 in).

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm

(200 mV/mil), which is typical for eddy current transducers. Its enhanced sideview

and small target capabilities result in a shorter linear range than the standard Bently

Nevada 3300 XL-series 5 and 8 mm Transducer Systems. However, the 1.5 mm

(60 mils) linear range exceeds the range of the 3000-series 190 Transducer System.
