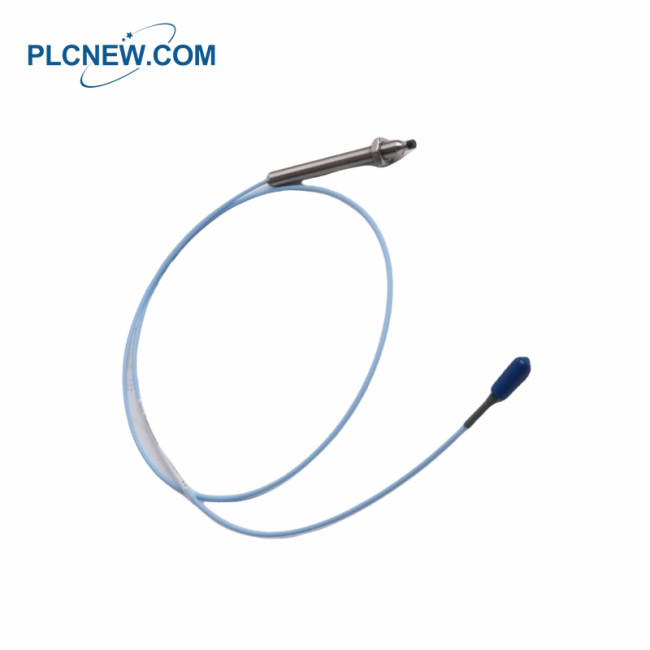

BENTLY NEVADA 330905-00-10-05-02-00 Proximity Probes

BENTLY NEVADA 330905-00-10-05-02-00 Proximity Probes

BENTLY NEVADA 330905-00-10-05-02-00 Specification

Manufacturer:BENTLY NEVADA
Model:330905-00-10-05-02-00
Product Type:Proximity Probes
Operating Temperature: -40°C to +120°C (-40°F to +250°F)
Maximum Vibration: 50 mils (1.27 mm) peak-to-peak
Gap Setting: 1.0 mm (40 mils)
Weight: 14 to 150 g (0.5 to 5.3 oz)
Center conductor: 0.220 Ω/m (0.067 Ω/ft)
Shield: 0.066 Ω/m (0.020 Ω/ft)
Capacitance: 69.9 pF/m (21.3 pF/ft)
Dimensions:1.8x1.6x120cm
Weight:0.08kg

BENTLY NEVADA 330905-00-10-05-02-00 Description

The primary uses for the 3300 XL NSv Transducer System are for areas where counter

bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300

and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target

applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in)

or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in

the following applications on fluid-filmed bearing machines where a small shaft or

reduced side-view is present:
• Radial vibration and radial position measurements
• Axial (thrust) position measurements
• Tachometer and zero speed measurements
• Phase reference (Keyphasor) signals.

The 3300 XL NSv Transducer System design allows it to replace both the 3300

RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer

System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may

use the existing probe, extension cable, and monitoring system with 3300 XL

NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer

System must replace the probe, extension cable and Proximitor Sensor with

NSv components.

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm

(200 mV/mil), which is the most common output for eddy current transducers. Its

enhanced side-view and small target characteristics give it a shorter linear range than

the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. With The 1.5 mm

(60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer

System.
