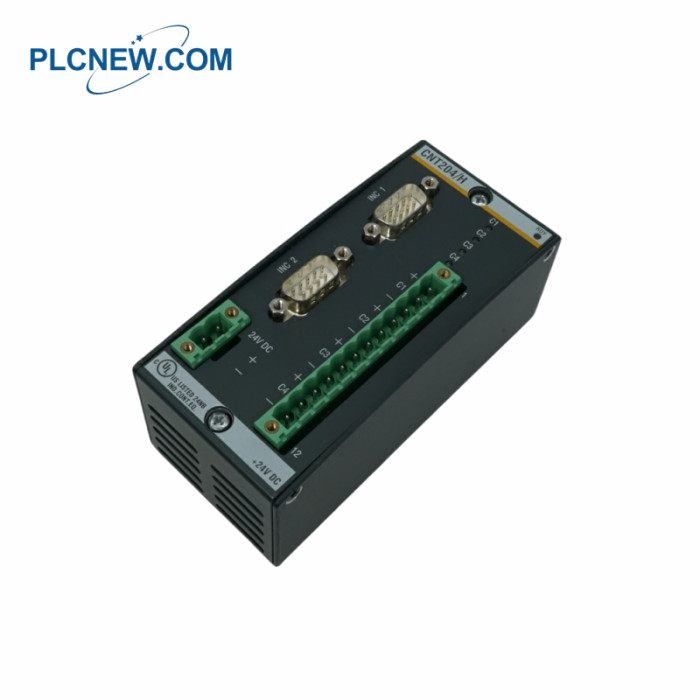

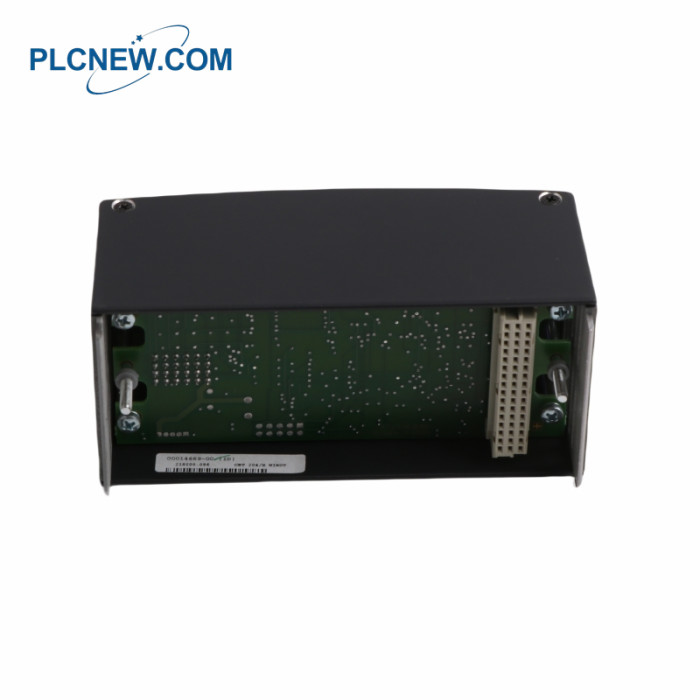

Bachmann CNT204/H Counter Module
Bachmann CNT204/H Specification
Brand |
Bachmann |
Model Name |
CNT204/H |
Brand |
Bachmann |
Module Type |
Counter Module |
Input Type |
Digital (Pulse Input) |
Input Channels |
4 channels |
Input Voltage |
24 VDC ±20% |
Input Current |
Approx. 10 mA per channel |
Signal Type |
Up/Down Counting (Pulse input) |
Counting Range |
32-bit counter (max. 4.294 billion counts) |
Input Frequency |
50 kHz (max.) |
Counting Mode |
Up, Down, and Up/Down counting modes |
Max Input Pulse Width |
10 µs (min.) |
Accuracy |
±1 count (depending on input signal quality) |
Mounting |
DIN Rail |
Operating Temperature |
-10°C to +60°C |
Storage Temperature |
-40°C to +85°C |
Humidity |
5% to 95% RH (Non-condensing) |
Dimensions |
5.5x5.5x12cm |
Weight |
0.24 kg |
Bachmann CNT204/H Description
The Bachmann CNT204/H Counter Module is engineered to deliver
unparalleled performance in industrial control systems. Its robust design
ensures accurate counting even under fluctuating power conditions and harsh
environmental factors.
Equipped with two incremental encoder inputs, this CNT204/H module is versatile
for various applications requiring precise position or speed measurements. It supports
a wide voltage range of 18 to 34 VDC, making it suitable for a broad spectrum of
industrial settings.
With a counter resolution of 32 bits, the CNT204/H provides exceptional accuracy
and reliability in counting operations. Its power consumption is optimized to 40
mA at 24 V, along with an additional 1.2 times the current for connected encoders,
ensuring efficient energy use without compromising performance.
The compact size and lightweight design (0.1 kg) of the CNT204/H make it
easy to integrate into existing systems without adding unnecessary bulk. This
makes it ideal for space-constrained applications while maintaining high functionality.
Designed with user-friendliness in mind, the Bachmann CNT204/H is compatible
with various control protocols and interfaces, ensuring seamless integration into
diverse systems. It’s a reliable choice for engineers seeking high-quality, dependable
counter modules for their industrial projects.
