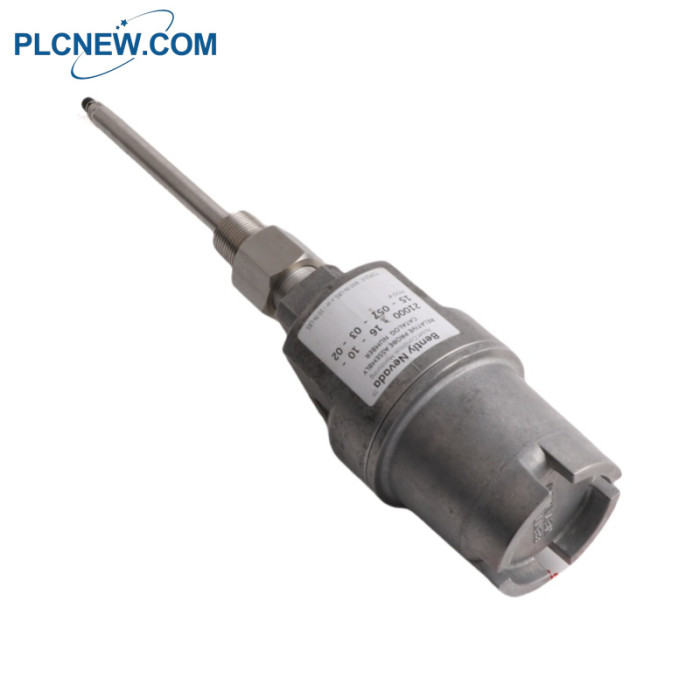

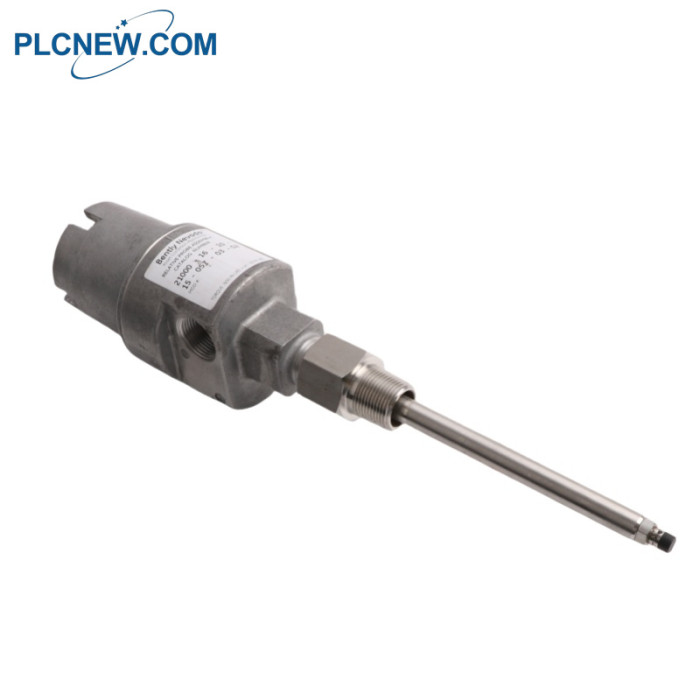

Bently Nevada 21000-28-05-00-105-04-026 Proximity Probe Housing Assemblies

Bently Nevada 21000-28-05-00-105-04-026 Proximity Probe Housing Assemblies

Bently Nevada 21000-28-05-00-105-04-026 Specification

A: Probe with Connector
00：Probe not required
14：420 nuclear
16：3300 XL 8mm probe
26：3300 XL NSv probe
27：3300 XL NSv probe, selectable hazardous area approvals
28：3300 XL 8mm probe, selectable hazardous area approvals
29：3300 XL 11mm probe
30：3300 XL 11mm probe, selectable hazardous area approvals
31：3300 XL NSv probe with connector protector
32：3300 XL NSv probe with connector protector, selectable hazardous area approvals
33：3300 XL 8mm probe with connector protector
34：3300 XL 8mm probe with connector protector, selectable hazardous area approvals

Bently Nevada 21000-28-05-00-105-04-026 Description

Bently Nevada offers two all-metal Proximity Probe Housing Assemblies for external mounting

of proximity probes: the 21000 aluminum probe housing assembly, and the 24701 stainless steel

probe housing assembly. These housings consist of a dome cover that screws into the body of

the housing, threaded ports for conduit connections, a probe sleeve of optional length, 0-rings,

a reverse mount proximity probe, a thread seal, optional conduit fittings and an optional standoff

adapter. Use of a proximity probe housing allows  external access to the proximity probe and its

extension cable, permitting gap adjustment or probe replacement without disassembly of the machine.

Both the 21000 and the 24701 housing assemblies are available in a Canadian Standards Association

(CSA) approved version that is rated explosion proof in hazardous areas. In addition, CSA and BASEEFA

approved proximity probes can also be ordered with both 21000 aluminum and 24701 stainless steel

housings for intrinsically safe applications. Both housings are certified as CSA Type 4 enclosures, and

both are fully compliant with the American Petroleum Institute's (API) 670 Standard for externally

mounted proximity probe housings.
